Edge-Core ECS4210-12P Web Management Guide

Chapter 6 | Address Table Settings
Configuring MAC Address Mirroring
– 174 –
Web Interface
To mirror packets based on a MAC address:
1. Click MAC Address, Mirror.
2. Select Add from the Action list.
3. Specify the source MAC address and destination port.
4. Click Apply.

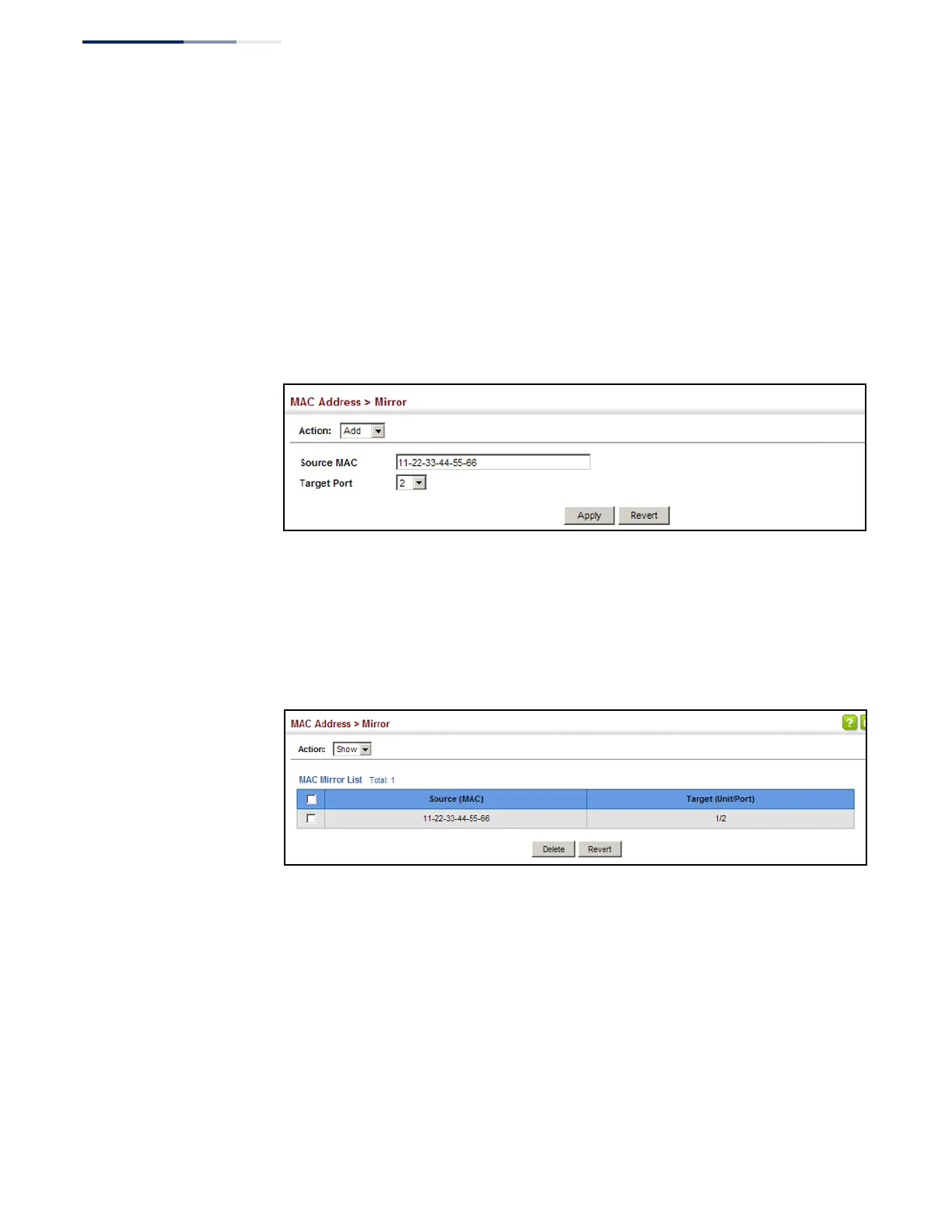

Figure 99: Mirroring Packets Based on the Source MAC Address
To show the MAC addresses to be mirrored:
1. Click MAC Address, Mirror.
2. Select Show from the Action list.
Figure 100: Showing the Source MAC Addresses to Mirror
