Chapter 4
| Interface Configuration
Trunk Configuration
– 126 –

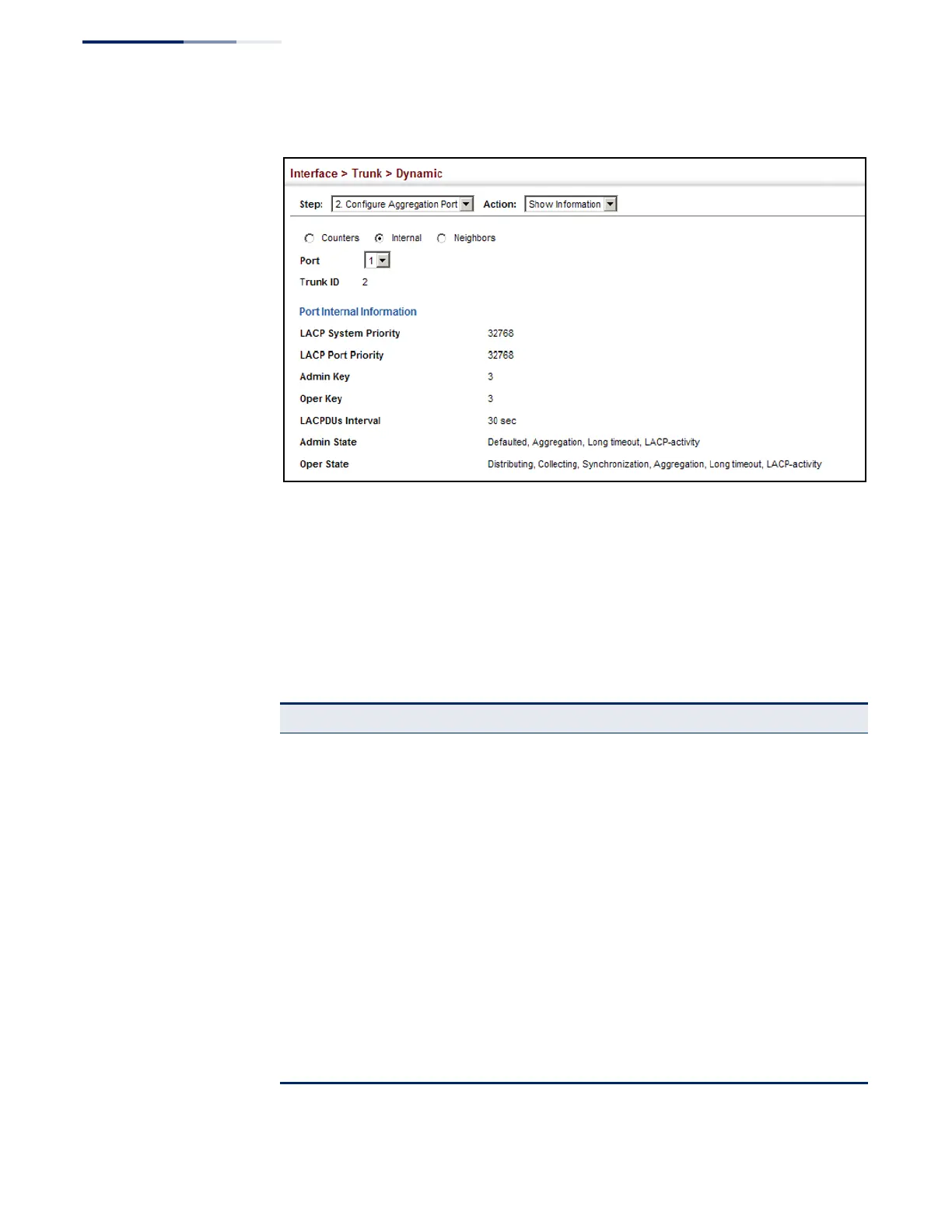

Figure 59: Displaying LACP Port Internal Information
Displaying LACP
Settings and Status for
the Remote Side
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Neighbors) page to display the configuration settings and
operational state for the remote side of a link aggregation.
Parameters
These parameters are displayed:
Table 8: LACP Remote Device Configuration Information
Parameter Description
Partner Admin System
ID
LAG partner’s system ID assigned by the user.
Partner Oper System
ID
LAG partner’s system ID assigned by the LACP protocol.
Partner Admin
Port Number
Current administrative value of the port number for the protocol Partner.
Partner Oper
Port Number
Operational port number assigned to this aggregation port by the port’s
protocol partner.
Port Admin Priority Current administrative value of the port priority for the protocol partner.
Port Oper Priority Priority value assigned to this aggregation port by the partner.
Admin Key Current administrative value of the Key for the protocol partner.
Oper Key Current operational value of the Key for the protocol partner.
Admin State Administrative values of the partner’s state parameters. (See preceding
table.)
Oper State Operational values of the partner’s state parameters. (See preceding table.)
