Authentication Configuration Example
Fixed Switch Configuration Guide 10-25
Authentication Configuration Example
Our example covers the three supported stackable and fixed switch authentication types being
used in an engineering group: end-user stations, an IP phone, a printer cluster, and public internet
access. Figure 10-4 provides an overview of the fixed switch authentication configuration.

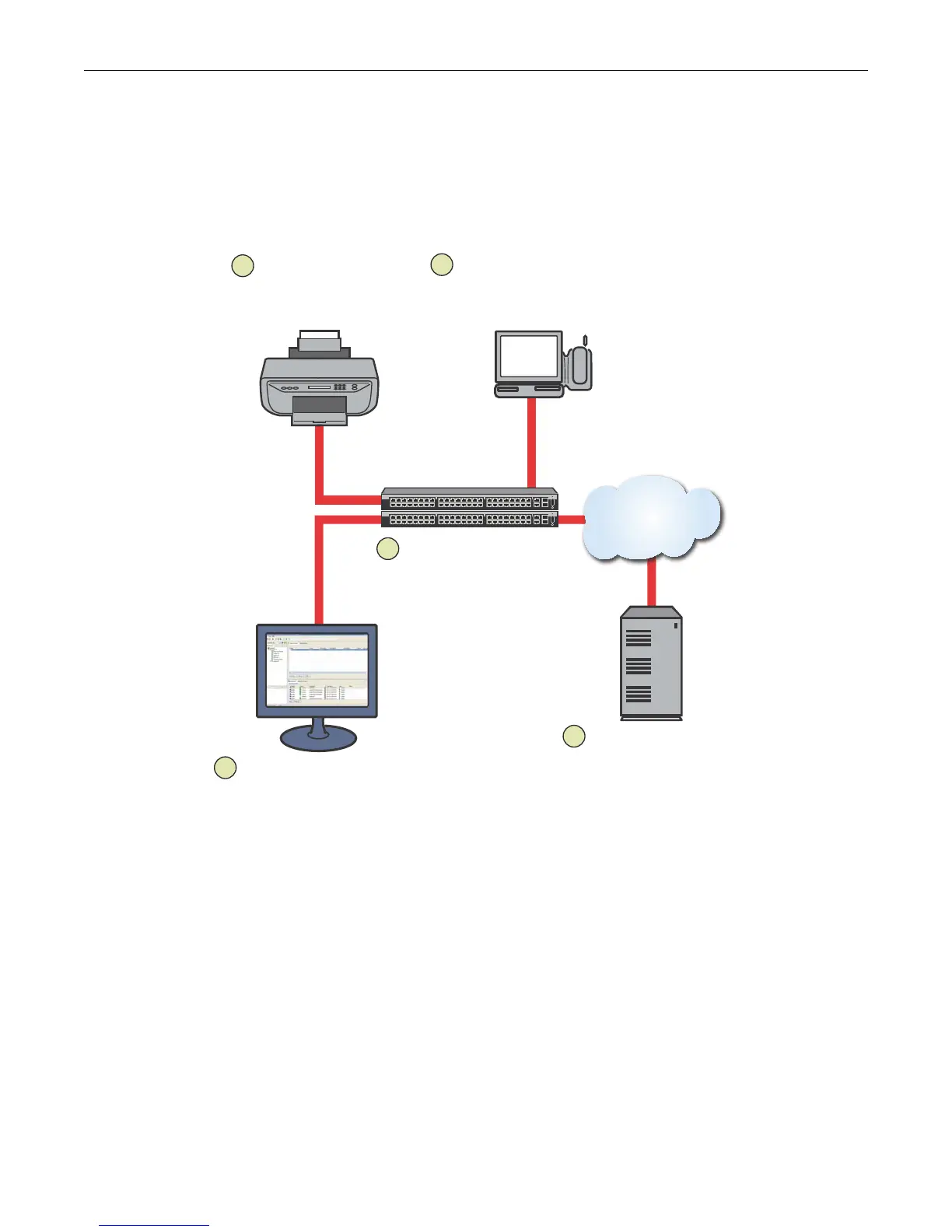

Figure 10-4 Stackable Fixed Switch Authentication Configuration Example Overview
Our configuration example consists of the following steps as shown in Figure 10-4 and described
in the sections that follow:
1. Configuring policies, RADIUS, and MultiAuth authentication on the switch.
2. Creating RADIUS user accounts on the authentication server.
3. Configuring for the engineering group 802.1x end-user stations, including the IP phone.
4. Configuring the printer cluster MAC authentication.
5. Configuring the public area internet access for PWA.
1
Stackable Switch
Configure policies
Enable RADIUS
Enable multi-user authentication
4
Printer cluster
MAC Authentication
Enable MAC authentication
Set MAC authentication password
Enable Port
3
Engineering end-user stations
802.1x authentication
Enable Eapol
Enable 802.1x
Set non-Authentication ports to force-auth
5
Public internet access
PWA Authentication
IP address: 10.10.10.201
Enable PWA
Configure IP address
Enable Enhance Mode
Enable Guest Status for RADIUS Authentification
Set Guest ID and Password
Enable Port
LAN Cloud
2
Radius Server 1
IP address: 10.20.10.01
Create RADIUS user accounts
