Policy Configuration Example
16-12 Configuring Policy
Policy Configuration Example
This section presents a college-based policy configuration example. Figure 16-1 displays an
illustration of the policy configuration of a example infrastructure. Although the illustration
shows an installation that includes Enterasys S-Series switches (as a distribution switch/router and
as a services edge switch), and the following discussion describes the roles and policy domains
applied to the complete infrastructure, the CLI platform examples will include only the fixed
switch configurations.

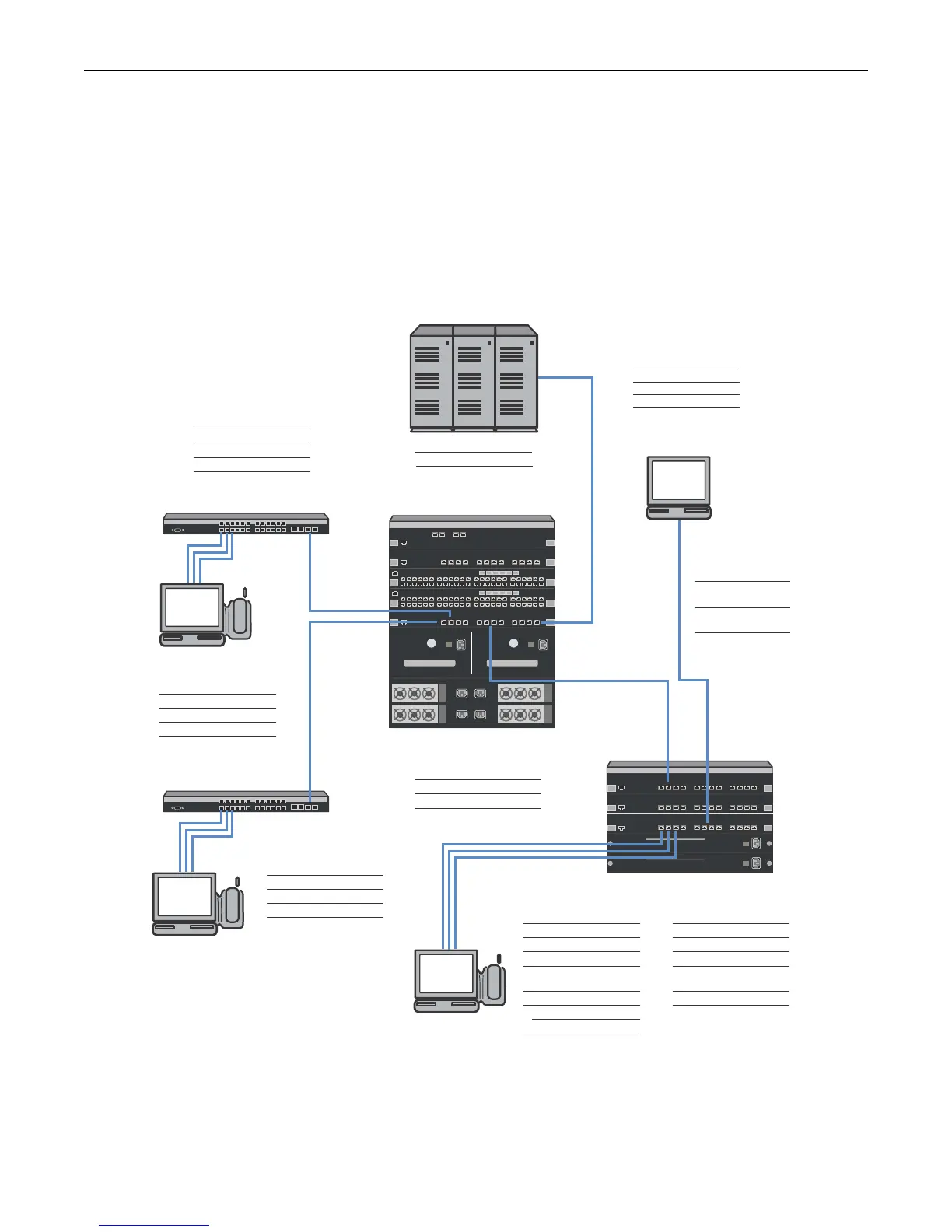

Figure 16-1 College-Based Policy Configuration
Students
Services:
Admin:
Faculty:
Profile:
Name:
Ports:
VLAN:
CoS:
2
student
ge.1.1-10
10
8
Profile:
Name:
Ports:
VLAN:
CoS:
4
faculty
ge.1.1-10
10
8
Profile:
Name:
Ports:
Data:
7
distribution
ge.1.1-26
Cos 11
Profile:
Name:
Ports:
PVID:
Default
CoS:
Phone:
Setup:
Payload:
VLAN:
5
phoneES
ge.1.1-10
0
4
CoS 9
CoS 10
11
Profile:
Name:
Ports:
PVID:
Default
CoS:
VLAN:
CoS:
6
services
ge.1.1-10
0
4
10
8
Enhanced Policy:
Policy Accounting
enabled
Policy Syslog
machine-readable
Policy Invalid Action
default-policy
Port TCI Overwrite
ge.1.1-10
Faculty
Services
10.10.50.0/24
10.10.60.0/24
10.10.70.0/24
Profile:
Name:
Ports:
PVID:
CoS:
1 (Default)
guest
All Edge Ports
0
4
Data Center
Guest
Profile:
Name:
Ports:
VLAN:
CoS:
3
phoneFS
ge.1.1-10
11
10
Distribution
Switch/Router
Student Fixed Switch
Faculty Fixed Switch
Services Edge Switch
