Link Aggregation Configuration Example
11-12 Configuring Link Aggregation
on each device is to ensure that LAGs form only where we configure them. Since the admin key
for the LAG and its associated ports must agree for the LAG to form, an easy way to ensure that
LAGs do not automatically form is to set the admin key for all LAGS on all devices to a non-
default value. The physical ports will initially retain admin key defaults. In our example, the
admin keys for all LAGs are set to the highest configurable value of 65535.

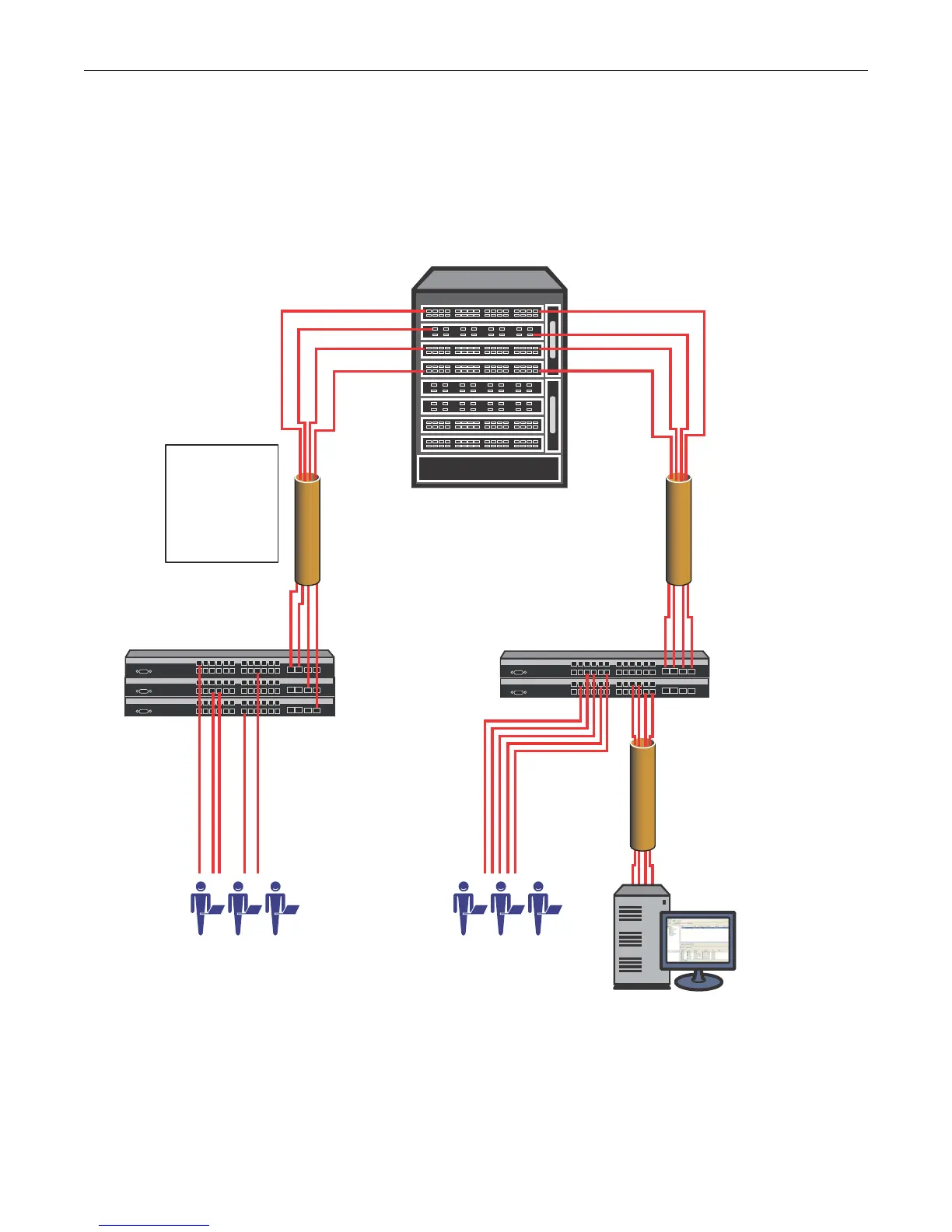

Figure 11-3 Link Aggregation Example
Both physical port and LAG admin keys will be set as shown in Table 11-6 to ensure that the LAGs
form only for the desired ports.
Fixed Switch Stack 1
Stack 2 to S8
PORTS
ge.1.21
ge.1.22
ge.1.23
ge.1.24
Admin KEY 200
S8 Distribution Switch
LAG1
End-Users
Fixed Switch Stack 2
LAG2
LAG Admin KEY
1 100
2 200
3 300
System Priority
S8 32768
Stack 1 100
Stack 2 100
Server > 100
LAG3
Server to Stack 2
PORTS
NIC1
NIC2
NIC3
NIC4
Admin KEY 300
Stack 2 to Server
PORTS
ge.2.17
ge.2.19
ge.2.22
ge.2.24
Admin KEY 300
Stack 1 to S8
PORTS
ge.1.21
ge.1.22
ge.2.23
ge.3.24
Admin KEY 100
End-Users
S8 to Stack 2
PORTS
ge.1.2
ge.2.2
ge.3.2
ge.4.2
Admin KEY 200
S8 to Stack 1
PORTS
ge.1.1
ge.2.1
ge.3.1
ge.4.1
Admin KEY 100
