Using the Equipment
To view this page, select the Service plus tab from the top of the web page.

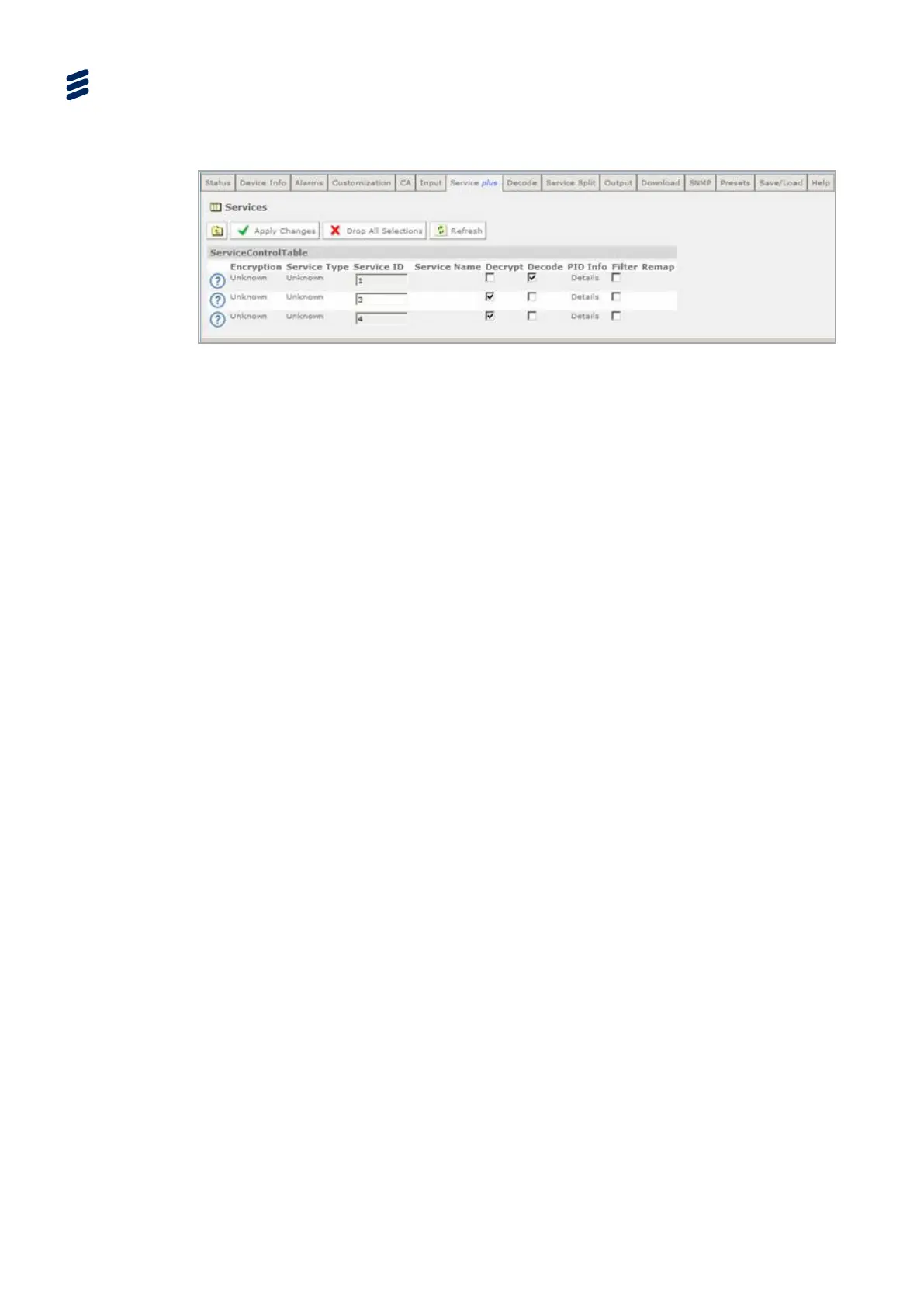

Figure 3.90 Service Plus Web Page
To edit the service selection:
1. Go to the Output tab page to select a filter mode, a bit rate type and desired bit
rate, if in CBR mode.
2. Go to the Service plus tab and choose a service to decode by placing a tick in
the relevant Decode checkbox.
Note: The RX8000 is a single-service decoder. Only one service may be selected
by placing as tick in the Decode checkbox.
3. If decryption is required place a tick in the relevant Decrypt checkbox. If Multi-
Service Descrambling has been licensed, more than one Decrypt checkbox can
be selected.
4. If Multi-Service Descrambling is being used, the Service Filter Mode should be
set to MULTI SERVICE in the Output tab page.
5. If the Service Filter Mode is set to REMAP in the Output tab, Service PID
values may be remapped by selecting ‘remap config’ under PID info column
under the Service plus page. New PID values for each available component
may be entered on the ‘Remap to PID’ box.
Other details about the service are available by hovering over the relevant table
column. Information is presented as a tooltip.
Any changes which are made to the Service plus page may be confirmed by
selecting the Apply Changes button. Selecting the Refresh button will ensure that
the latest information is being displayed from the current values of the equipment.
