• AFD/Bar Data Timeout Period – This parameter defines the timeout period
used by the AFD/Bar Data Timeout feature.
• SD Screen Aspect Ratio – This field defines the outgoing SD aspect ratio. This
menu allows the aspect ratio of the display device to be set:
- 16:9 – The RX8000 IRD outputs an SD aspect ratio of 16:9.
- 4:3 – The RX8000 IRD outputs an SD aspect ratio that, when used in
conjunction with HD services and down-conversion, follows the aspect ratio
parameter that has been set in the HD Down-Conversion field.
- Undefined – The RX8000 IRD outputs an SD aspect ratio that, when used
in conjunction with HD services and down-conversion, follows the aspect
ratio parameter that has been set in the HD Down-Conversion field.
• HD Down-Conversion – This field defines the outgoing SD aspect ratio. This
menu allows different aspect ratio conversions to be set:
- Anamorphic (Stretch)
- Center cut-out
- Letterbox
3.13.4.7 Status
The RX8000 can report the Active Format Descriptor status to the user via the web
browser.

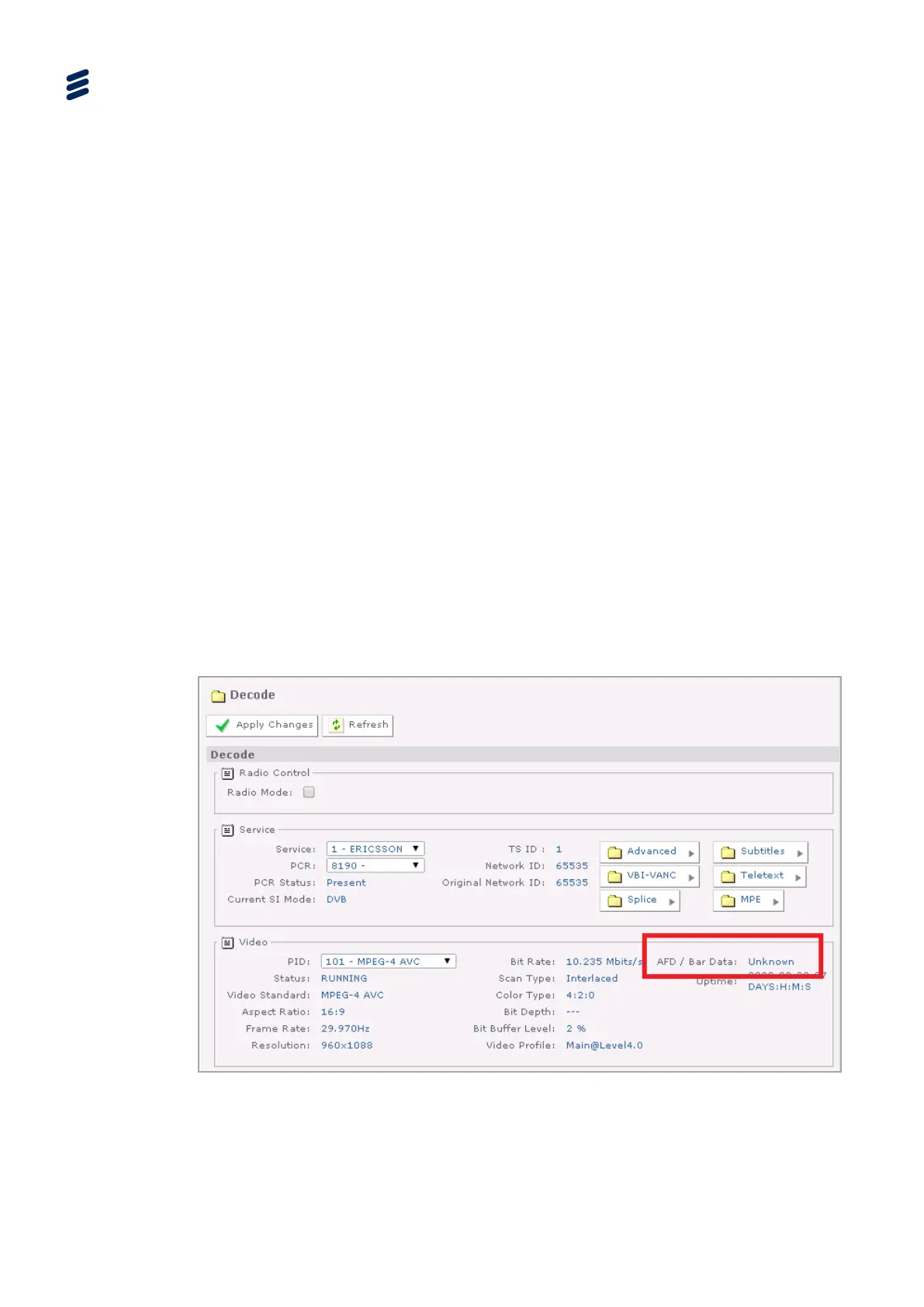

Figure 3.104 Decode Web Page with AFD/Bar Data Status
