This status field reports the total number of MPE packets processed so that they can
be converted for IP output.

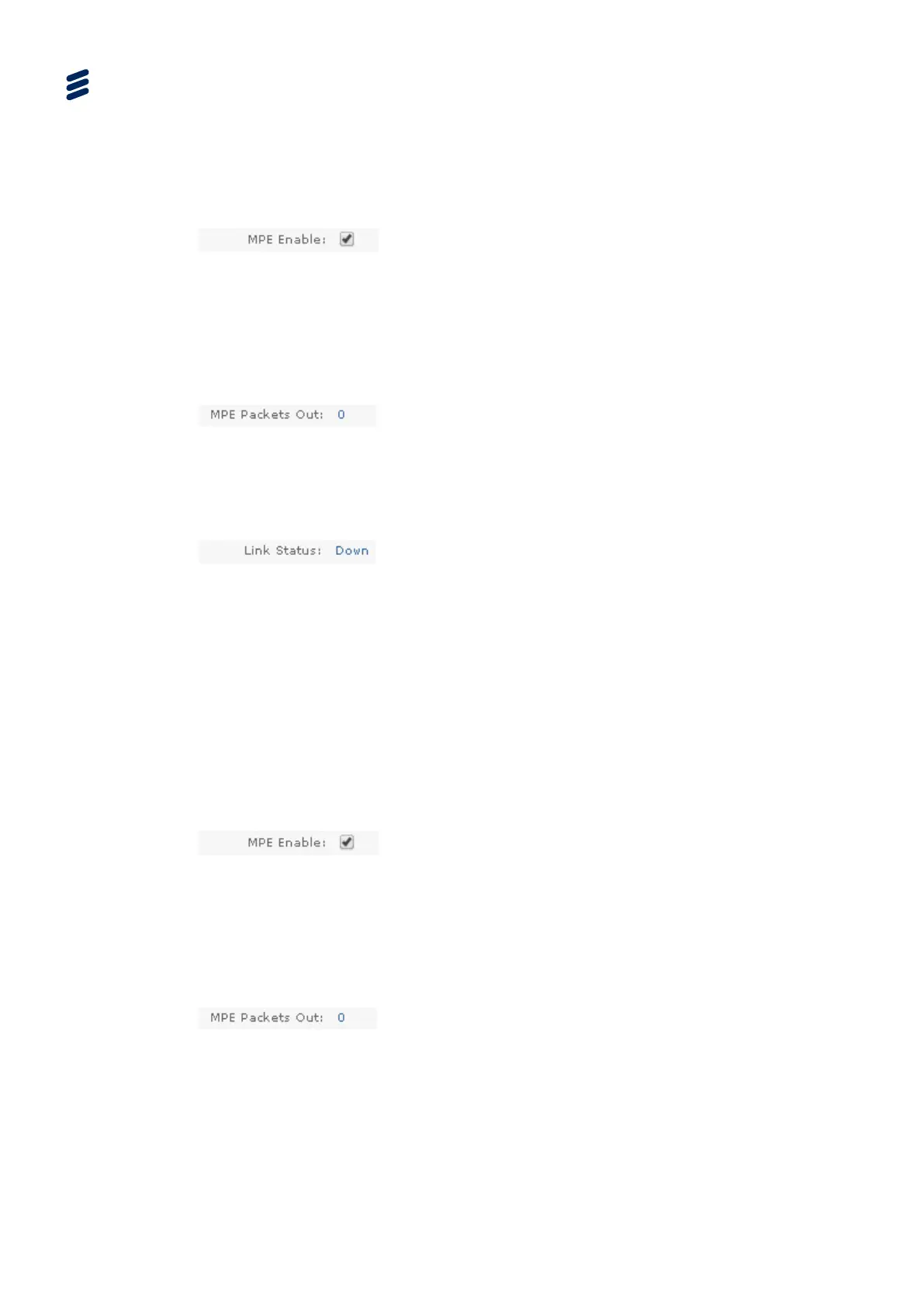

3.17.6.6.7 IP Out Link 1 > MPE Enable
This field enables or disables the data being output on IP Output Port 1.
Note: The RX8000 is only capable of outputting one MPE stream, if both ports are
selected then the same stream will be output on both ports.
3.17.6.6.8 IP Out Link 1 > MPE Packets Out
This status field reports the total number of data packets being output on IP Output
Port 1.
3.17.6.6.9 IP Out Link 1 > Link Status
This status field reports the link status of the port. MPE is a connectionless
broadcast so the link status does not indicate if the IP contents of the MPE packets
have been successfully received.
• 10 Mb
• 100 Mb
• 1000 Mb
• Down
3.17.6.6.10 IP Out Link 2 > MPE Enable
This field enables or disables the data being output on IP Output Port 2.
Note: The RX8000 is only capable of outputting one MPE stream, if both ports are
selected then the same stream will be output on both ports.
3.17.6.6.11 IP Out Link 2 > MPE Packets Out
This status field reports the total number of data packets being output on IP Output
Port 2.
