Step 4 Install First Cable Holder
This step is only required if the machine will be using a plasma torch. It must be installed after the
Cross Beam is inserted into the Central Unit, but before any hoses or cables are connected to the
Cross Beam.
Install one of the two Cable Holders at the left-hand end of Cross Beam. Slide post clamp over end of
beam and tighten screw to secure in place.

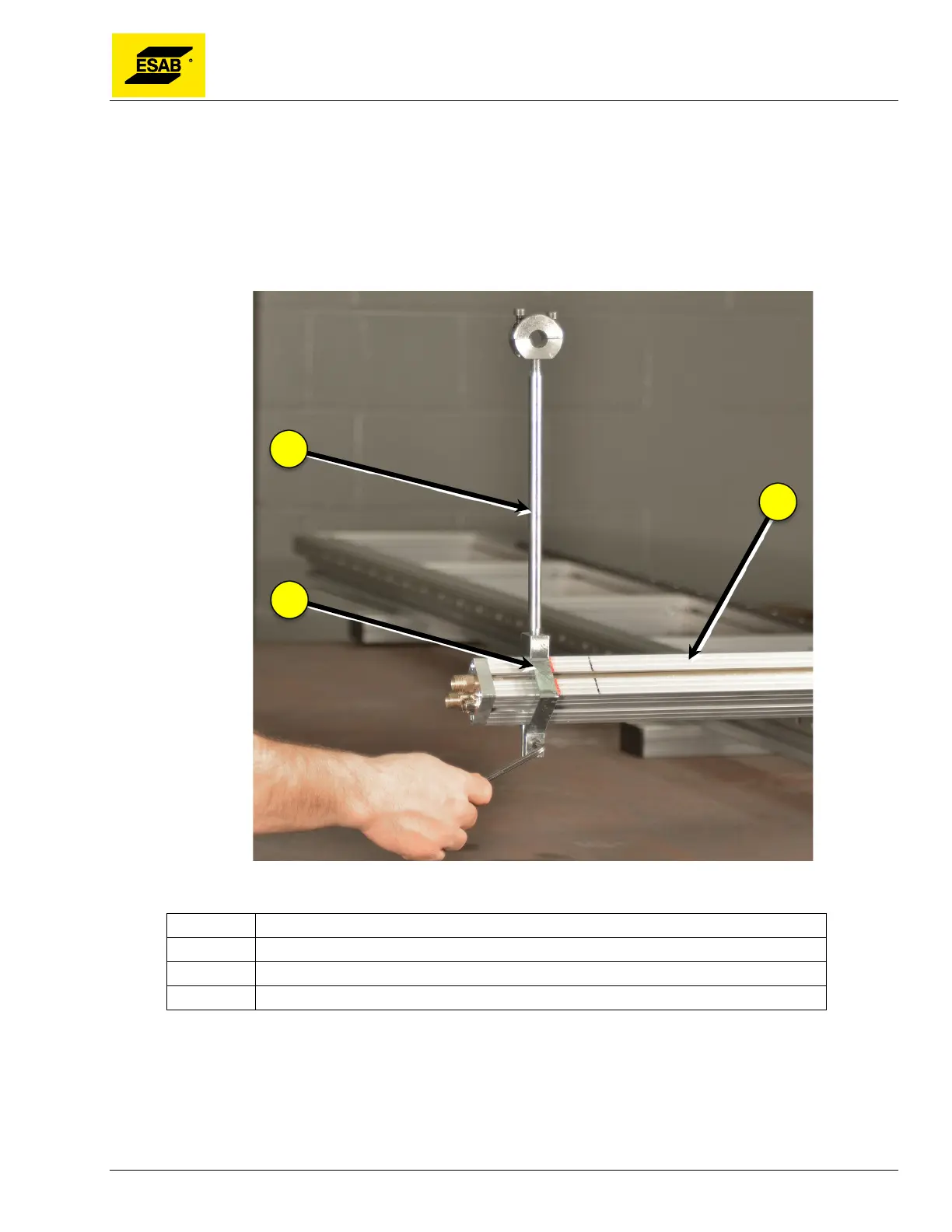

Figure 13: Installing Cable Holder
Number Description
1 Cable Holder
2 Cross Beam
3 Post Clamp
