Removing the 8x 2.5-inch HDD front panel

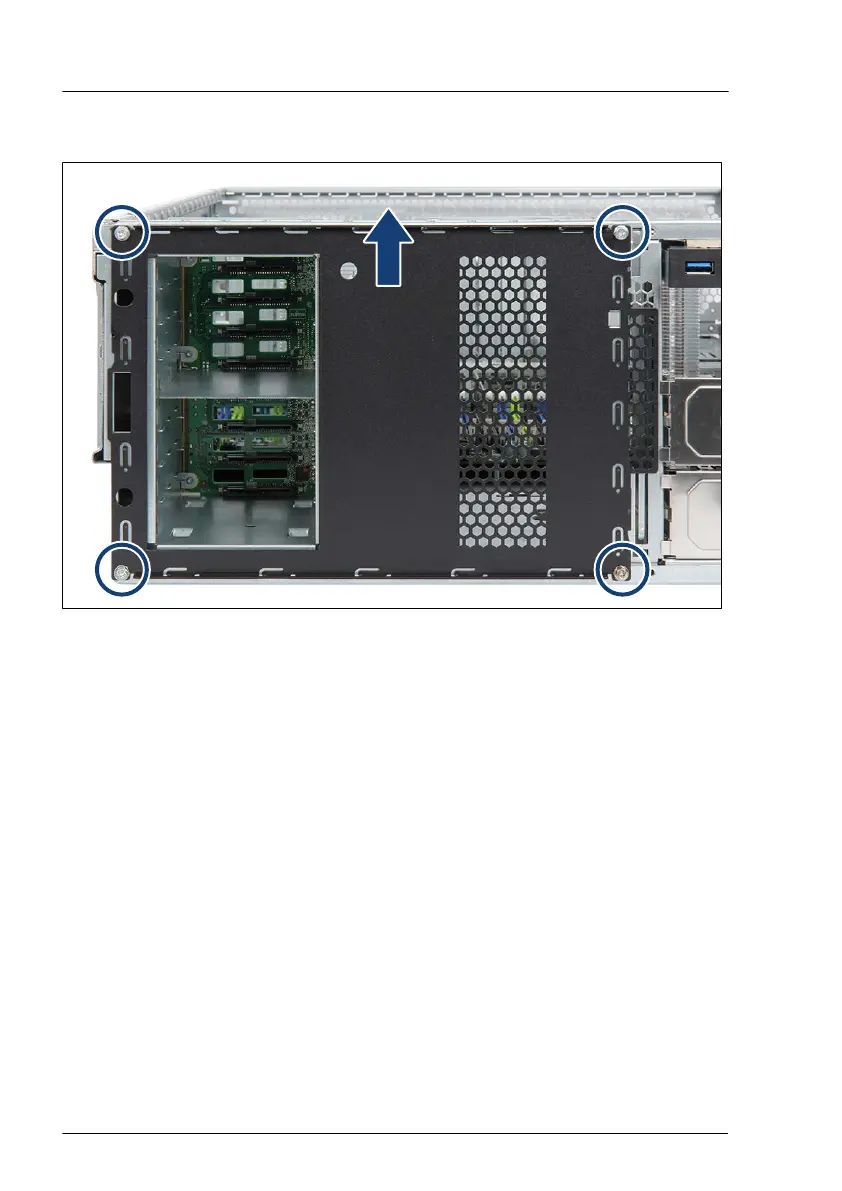

Figure 157: Removing the 8x 2.5-inch HDD front panel
▶
Remove four screws from the 8x 2.5-inch HDD front panel.
▶
Pull up the 8x 2.5-inch HDD front panel to disengage it from the chassis.
▶
Remove the 8x 2.5-inch HDD front panel.
Removing the 2.5-inch HDD bay top cover
▶
Remove the 2.5-inch HDD bay cover
, see "Removing the 2.5-inch HDD bay
top cover" on page
262.
Installing the second 2.5-inch HDD/SSD SAS backplane
▶
Install the second 2.5-inch HDD/SSD SAS backplane and the second HDD
cage, see "Installing a 2.5-inch HDD/SSD SAS backplane" on page 239.
