Installing the 2.5-inch HDD bay top cover
▶
Install the 2.5-inch HDD bay top cover, see "Installing the 2.5-inch HDD bay
top cover" on page
262.
Installing the 16x 2.5-inch HDD front panel

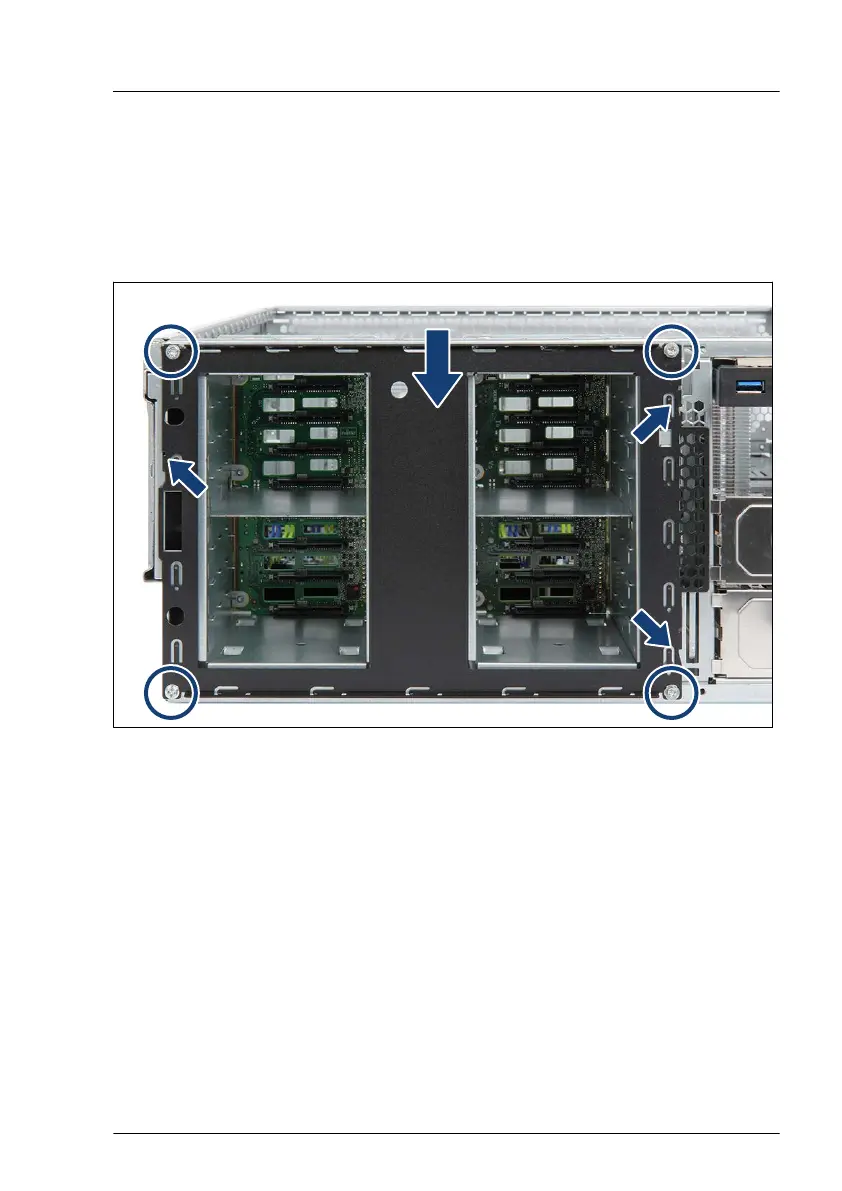

Figure 158: Securing the 16x 2.5-inch HDD front panel
▶
Fit the three hooks on the 2.5-inch HDD front panel into the slots in the
server front (see small arrows).
▶
Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see arrow).
▶
Fasten the HDD front panel to the server front with four M3 x 4.5 mm screws
(see circles).
Installing the expander board
▶
Install the expander board, see "Installing the SAS expander board" on
page 306.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 263
