9. Place the protector in the packaging, and store it.

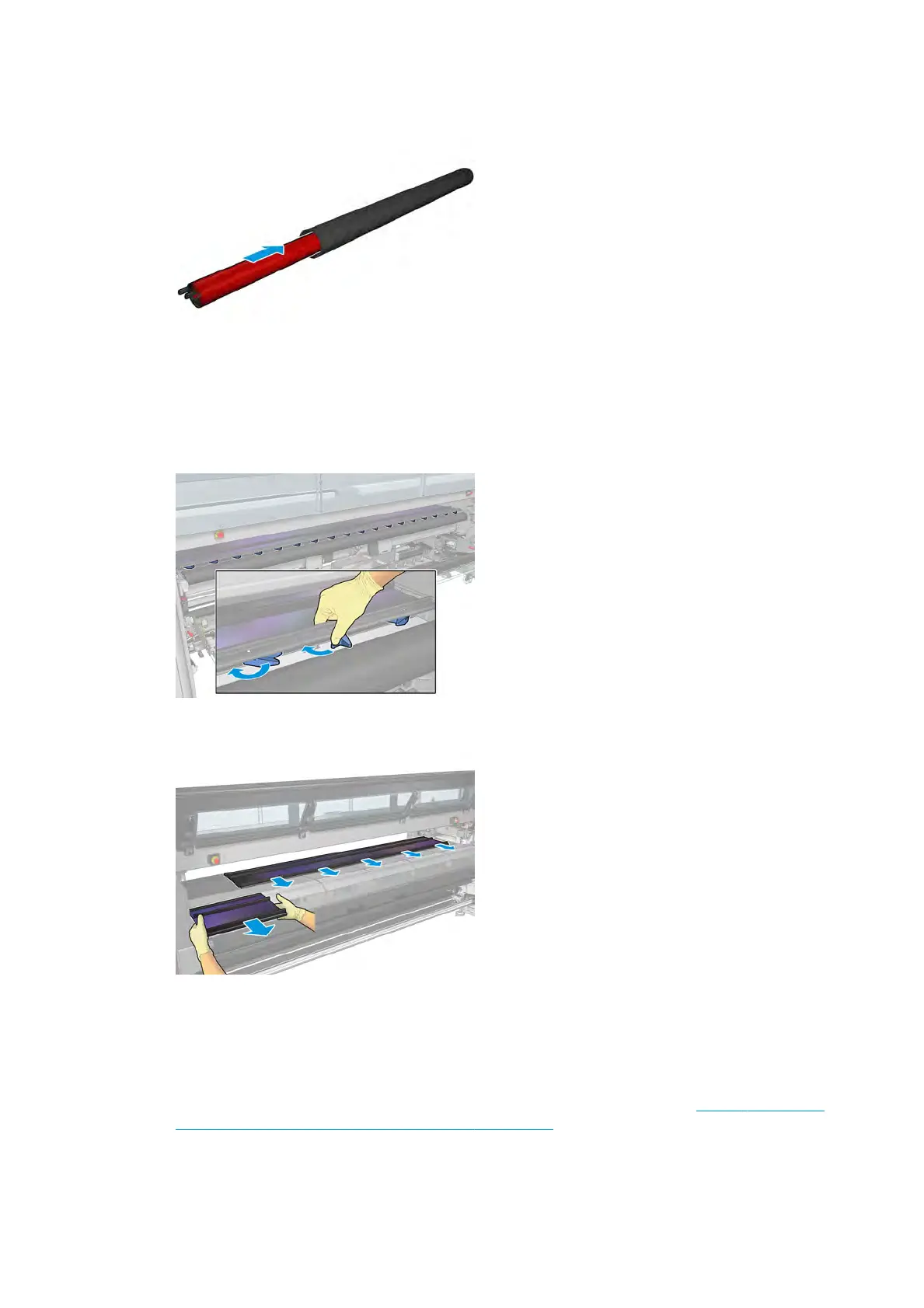

Uninstall the six ink-collector modules
1. Close the curing module and latches.
2. From the rear of the printer, open the three latches of each module.
3. From the front of the printer, remove each module.
4. Press Finish to complete the removal process. The carriage beam moves down and the carriage moves
along the platen for checking.
5. Check whether the foams need to be replaced; if so, replace them. Store them in the ink collector
container, keeping the latches on top. You can also store the barriers and edge holders there.
6. Perform the maintenance operations recommended after uninstalling the kit: see Table 8-2 Additional
maintenance operations for porous substrates on page 164.
46 Chapter 3 Handle the substrate ENWW
