HPE FlexNetwork MSR Series User Manual

333

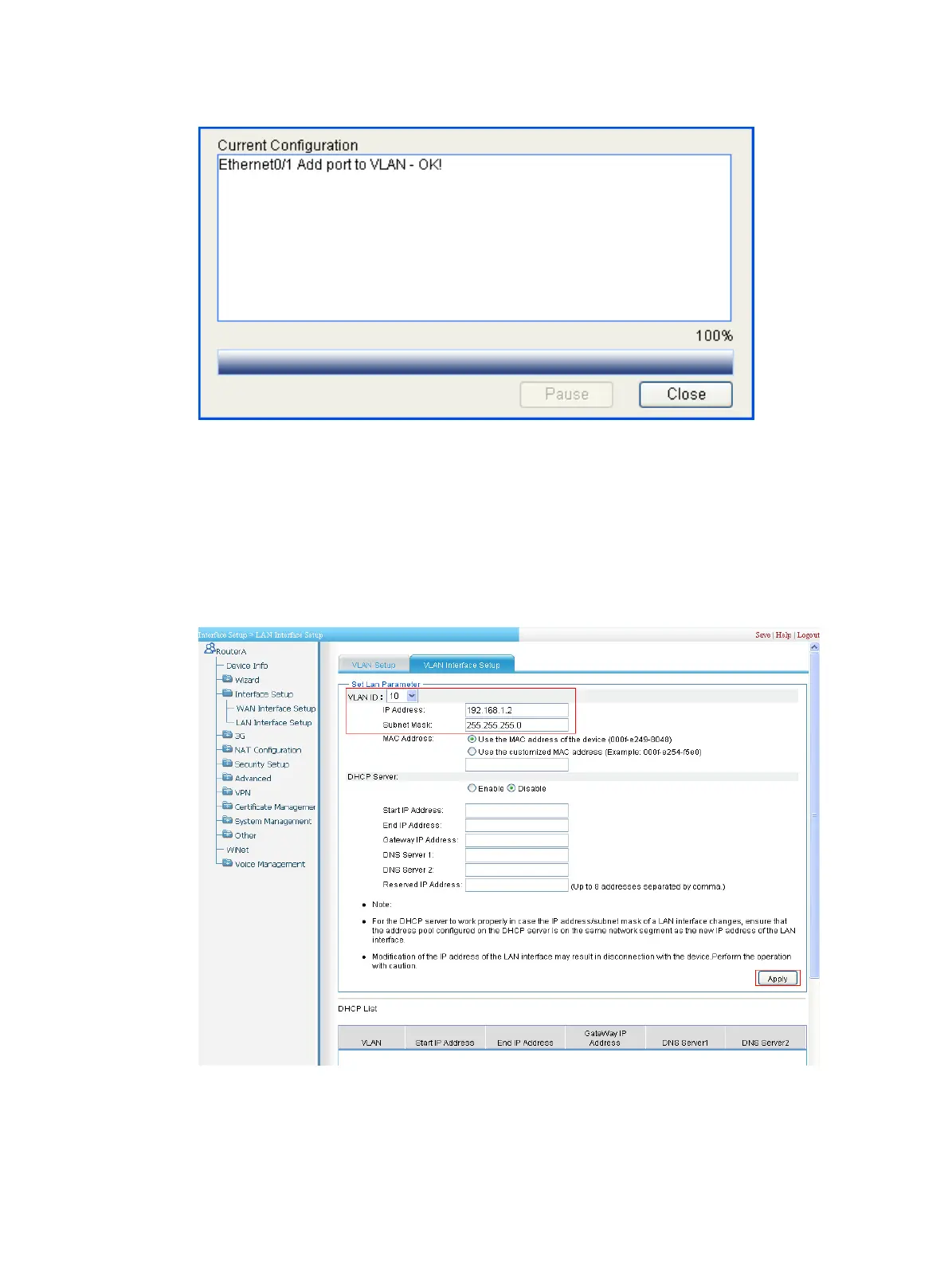

Figure 351 The configuration progress dialog box
3. Configure the IP address of VLAN-interface 10:
a. Click the VLAN Interface Setup tab.
b. Select 10 for Select a VLAN as shown in Figure 352.
c. Enter 192.16
8.1.2 for IP Address.
d. Enter 255.255.255.0 for Subnet Mask.
e. Click Apply.
Figure 352 Configuring the IP address of VLAN-interface 10
4. Create a static ARP entry:
a. From the navigation tree, select Advanced > ARP Management > ARP Table and click
Add.
b. Enter 192.168.1.1 for IP Address as shown in Figure 353.
