Manage scripts menu
You can use this menu to save internal scripts to a USB flash drive, or copy scripts on the USB flash
drive to the instrument. You can also delete scripts from this menu. For more information about using
scripts with the Model 2450, see Fundamentals of scripting for TSP (on page 7-4
).

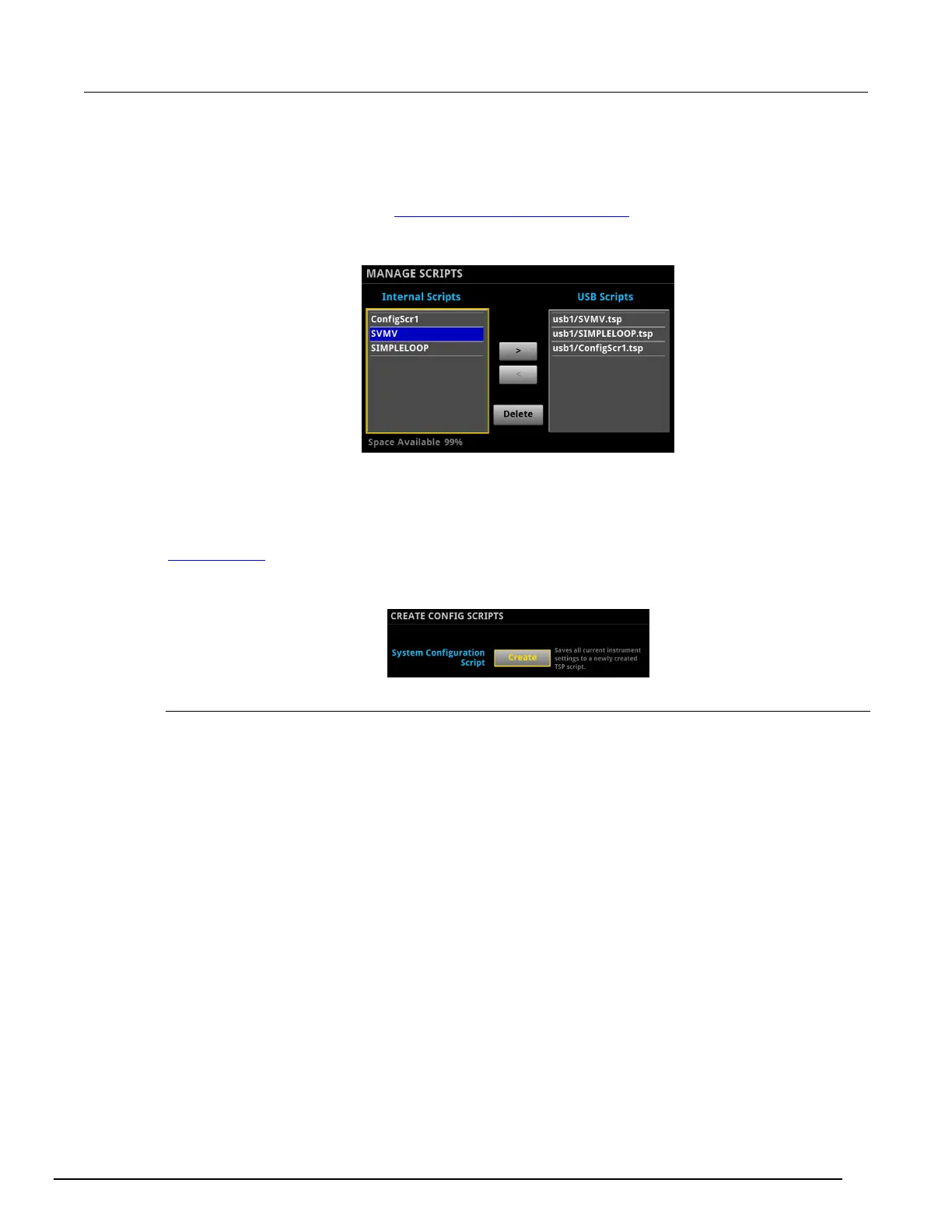

Figure 20: Model 2450 MANAGE SCRIPTS menu
Create Config menu
Selecting Create on this menu saves the present settings and any source or measure configuration
lists that you have defined for the Model 2450 as a user configuration script that you can later recall
or use on another instrument. For more information about user configuration scripts and setups, see
Saving setups (on page 2-112
).
Figure 21: Model 2450 CREATE CONFIG SCRIPTS menu
System menu
The menus organized under System in the main menu allow you to configure general instrument
settings from the Model 2450 front panel. Among these settings are event log, communication,
beeper and key clicks, backlight brightness and timer, time and date, system access level, password,
and reading format settings.
The System Information menu is a read-only menu that shows the serial number, firmware version,
line frequency, and calibration information.
The following topics describe the settings that are available on these interactive screens.

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
