2: General operation Model 2450 Interactive SourceMeter® Instrument
2-40 2450-901-01 Rev. B/September 2013
The following figure shows the mounting screw locations and dimensions. Mounting screws must be
#6-32 with a maximum screw length of 0.438" or 7/16". The dimensions shown are typical for both
sides of the instrument.

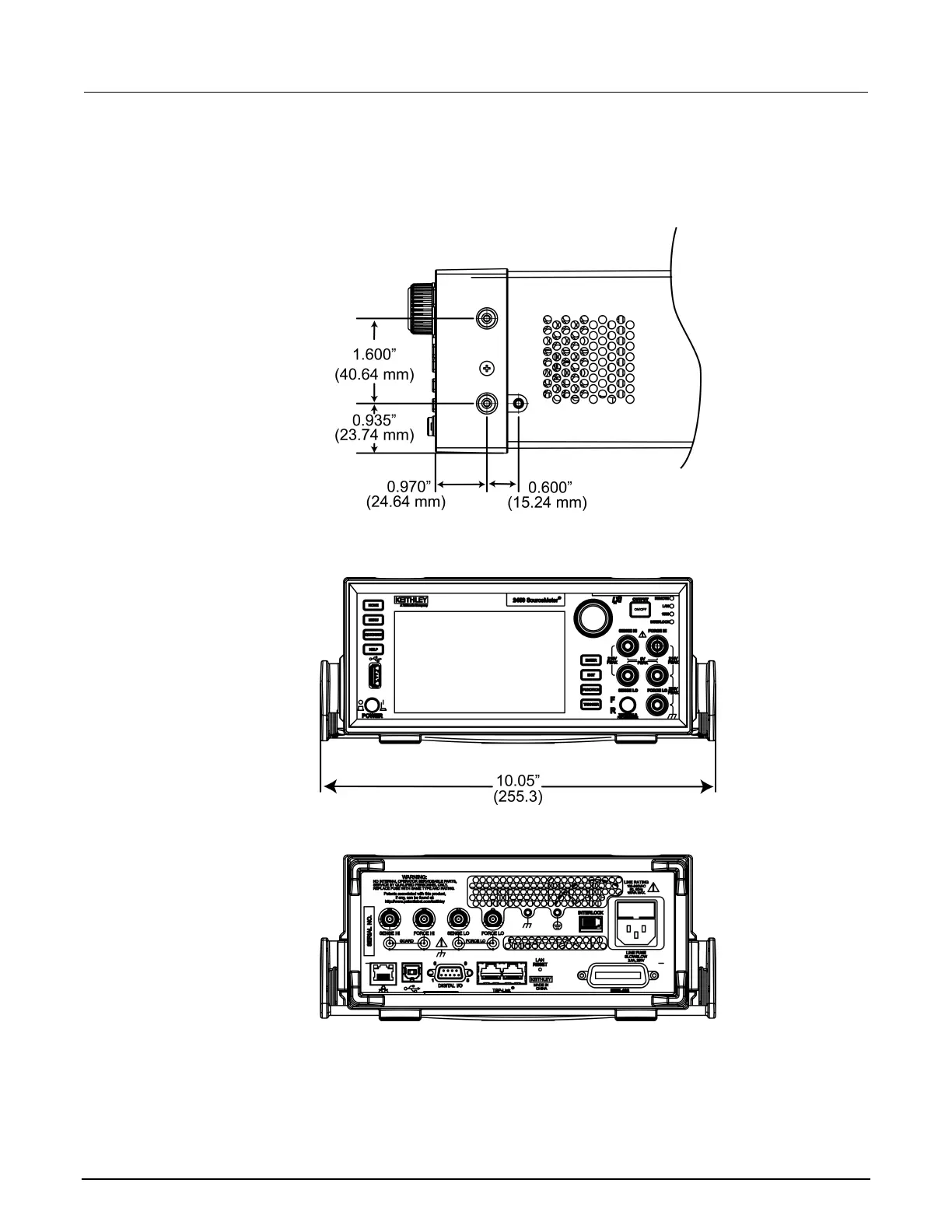

Figure 22: Model 2450 mounting screw locations and dimensions
The following figures show the dimensions when the handle and bumpers are installed.
Figure 23: Model 2450 dimensions front and rear with handle and bumpers
