Keithley 2450 User Manual

Model 2450
Interactive SourceMeter® Instrument Reference Manual Section 2:
General operation
2450-901-01 Rev. B/September 2013 2-41

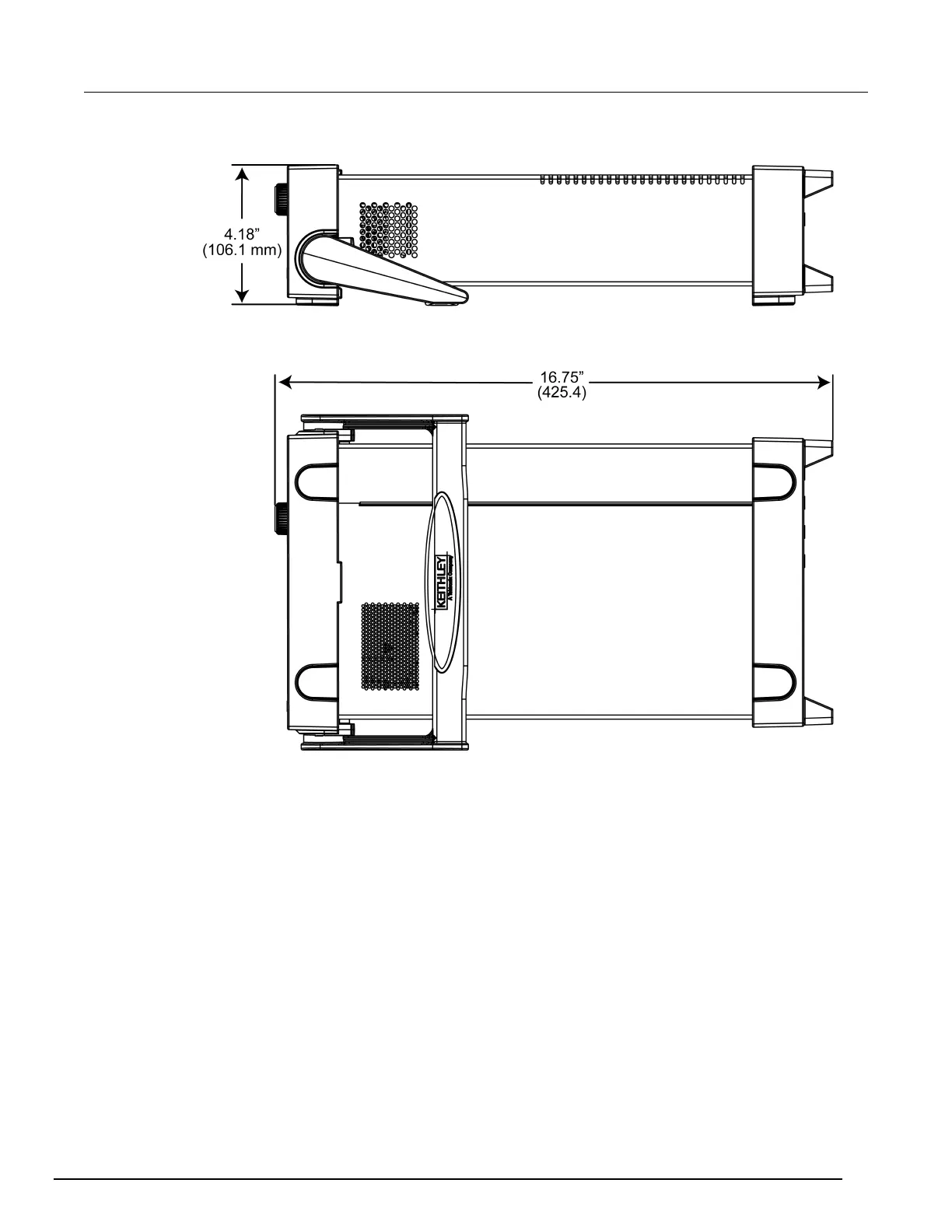

Figure 24: Model 2450 dimensions side and top with handle and bumpers

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
