Keithley 2450 User Manual

Section
2: General operation Model 2450 Interactive SourceMeter® Instrument
Reference Manual
2-42 2450-901-01 Rev. B/September 2013
The following figures show the dimensions when the handle and bumpers have been removed.

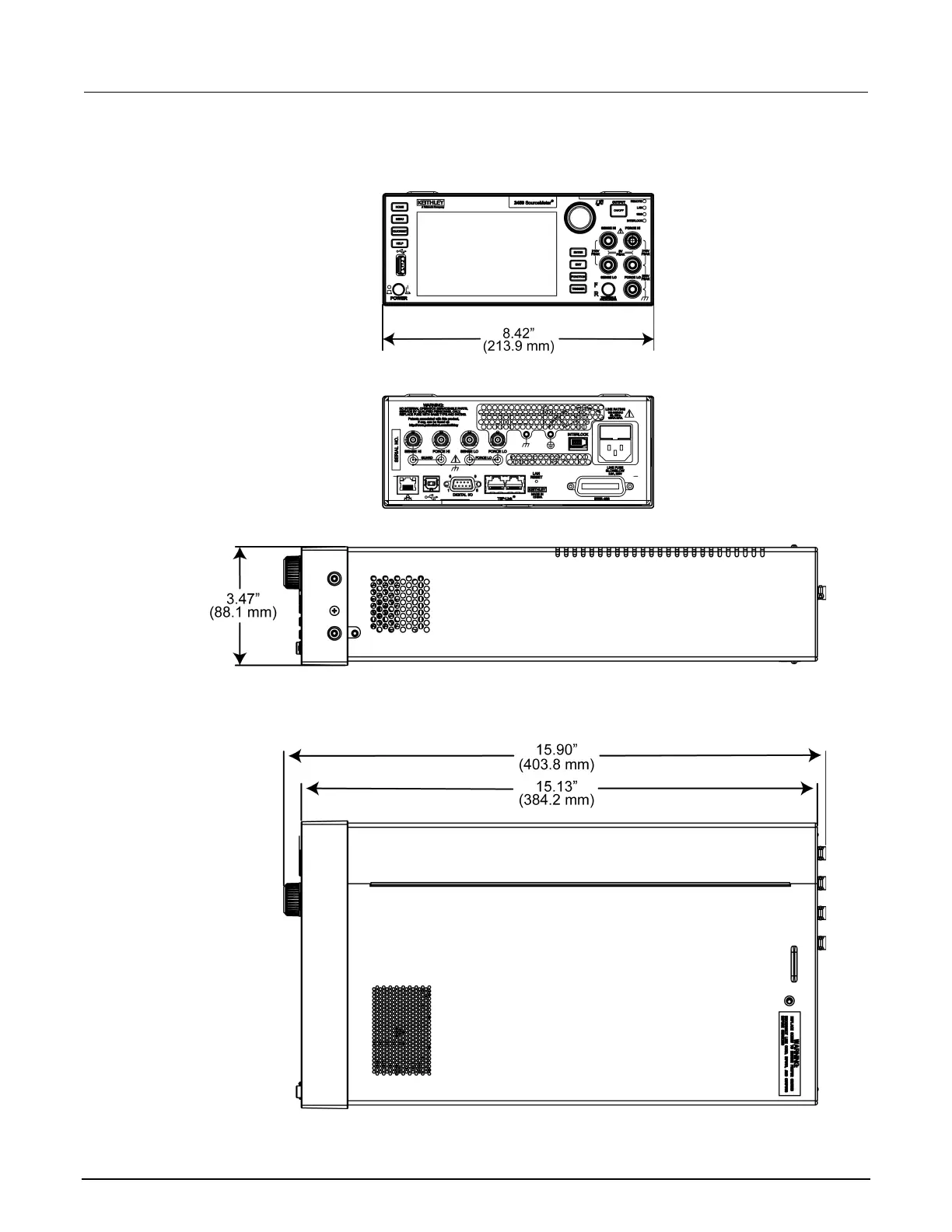

Figure 25: Model 2450 Front and rear panel dimensions with handle and bumpers removed
Figure 26: Model 2450 top and side dimensions with handle and bumpers removed

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
