Korg M3 Parameter Guide

Effect Guide
440
Sampling mode
Pan
Stereo Sample L
Send1
IFX2 Bus
IFX2
IFX1 Bus
IFX1
Chain & Chain to
MFX2
MFX1
Return1 / 2
AUDIO OUTPUT (MAIN) L/Mono, R
IFX4 Bus
IFX4
IFX3 Bus
IFX3
IFX5 Bus
IFX5
Bus Select = 1
Stereo Sample R
Bus Select
stereo
Insert Effects
Post IFX Pan(CC#8)
Post IFX Bus Select
Send2
stereo
Master Effects
AUDIO OUTPUT (INDIVIDUAL)1/2/3/4
L/R Bus
stereo
mono x 8
Bus Select = IFX1
stereo
stereo stereo
stereo
stereo
Chain

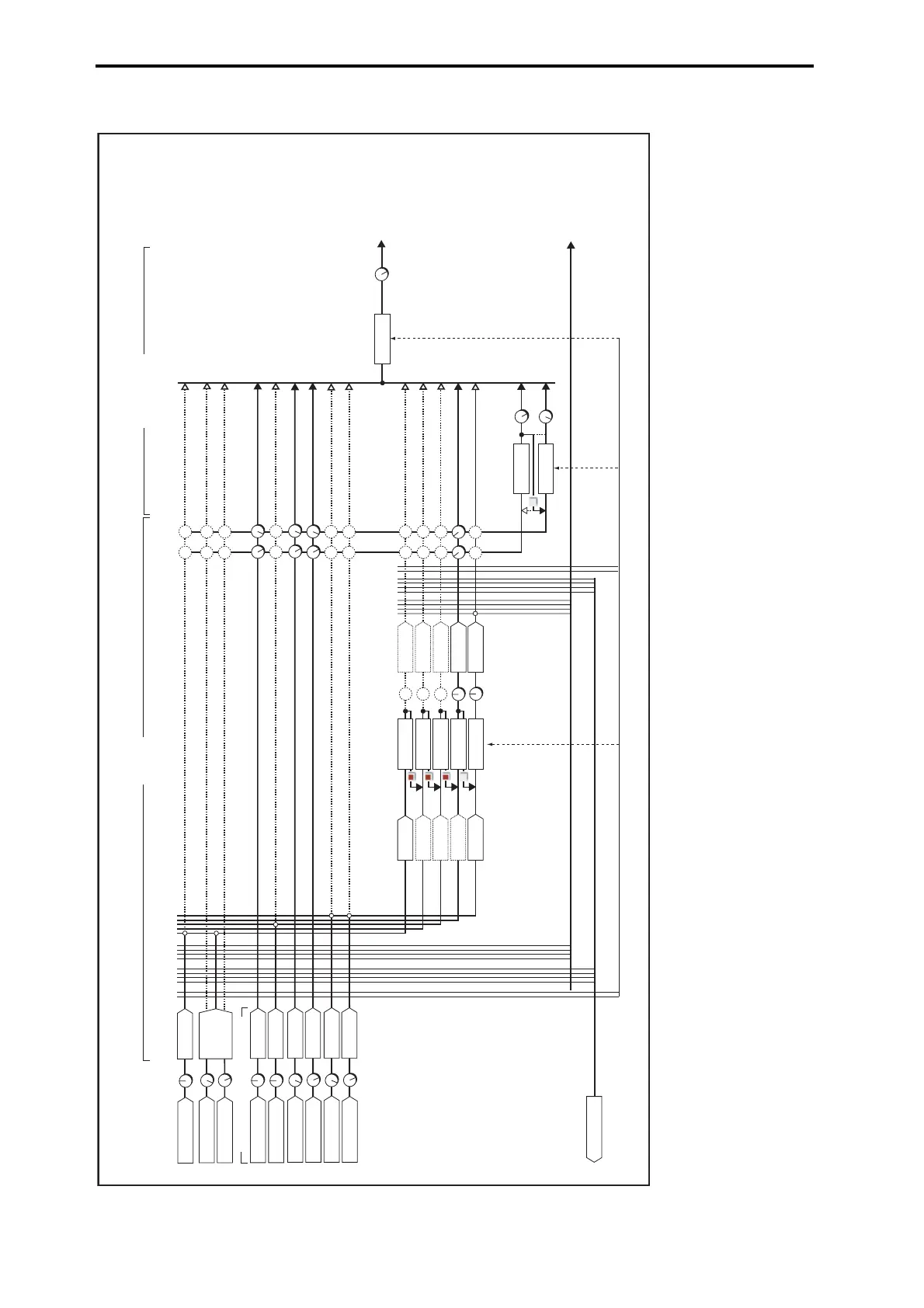

Effect / Mixer Block Diagram in Sampling Mode
P8: IFX
Post IFX Send1 / 2
P9: MFX/TFX
Analog Input 1
Analog Input 2
Bus Select = L/R
Bus Select = IFX3
Sampling P0: Audio In/Setup
Sampling P0: Audio In/Setup "Input" (Send1, Send2)
S/P DIF IN L
Bus Select = L/R
Bus Select = L/R
Bus Select = L/R
S/P DIF IN R
*FireWire IN L
*FireWire IN R
Bus Select = IFX5
Bus Select = IFX5
stereo
stereo
TFX
Master Level
Select from: L/R IFX1 IFX2 IFX3 IFX4 IFX5
1 2 3 4 1/2 3/4 Off
stereo
Total Effect
Mono Sample
Bus Select = IFX1
Select from: L/R 1 2 3 4
1/2 3/4 Off
AUX Bus
mono x 4 (stereo x 2)
Sampling Source Bus
FX Control Bus
stereo x 2
*: Option EXB-FW

Korg M3 Specifications

General

Synthesis Type	EDS (Enhanced Definition Synthesis)
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61-key, velocity-sensitive, aftertouch
Sequencer	16-track MIDI sequencer
Sampling	Open Sampling System
Display	TouchView graphical user interface with 320x240 color TFT LCD
Arpeggiator	2 polyphonic arpeggiators
Controllers	Joystick, Ribbon Controller
Outputs	L/MONO, R, Individual 1-4, Headphones
USB	Yes, USB MIDI
Storage	SD card slot
Combinations	1, 792 user combinations
Polyphony	120 voices (max)
Effects	5 Insert effects, 2 Master effects, 1 Total effect
