See the example in Figure 4-2, “Engineering Association Sets” (4-15).
In Figure 4-2, “Engineering Association Sets” (4-15), Association Set
B1, in office A, consists of two associations:
• association A1, and
• association A3
The above information is defined in RC/V.

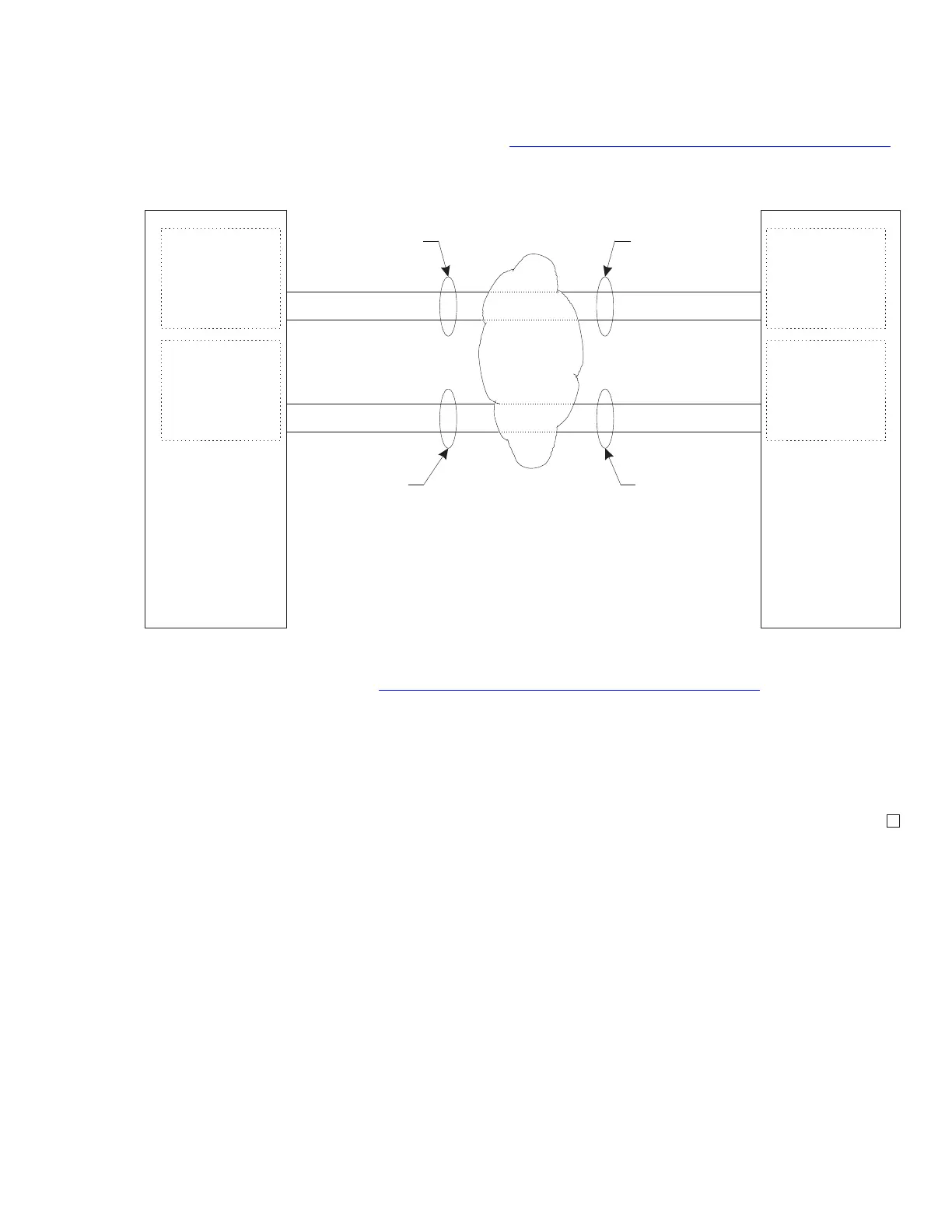

Figure 4-2 Engineering Association Sets
Association A1
Packet Group
7000
Office A Office B
Association A3
Association Set B1
Packet Group
7500
Association Set A1
Association B1
Association B3
Association A2
Association A4
Association Set B2
Association B2
Association B4
Association Set A2
Packet Group
7100
Packet Group
7600
End Point a1
End Point b1
End Point b2
End Point b1
End Point b2
End Point a1
End Point a2
End Point a2
Association Set Considerations
Engineering Considerations
....................................................................................................................................................................................................................................
235-200-118
Issue 3.02B, March 2007
Lucent Technologies
4-15
