Lucent Technologies 5ESS - Page 171

Provisioning SIP with
SCTP Transport

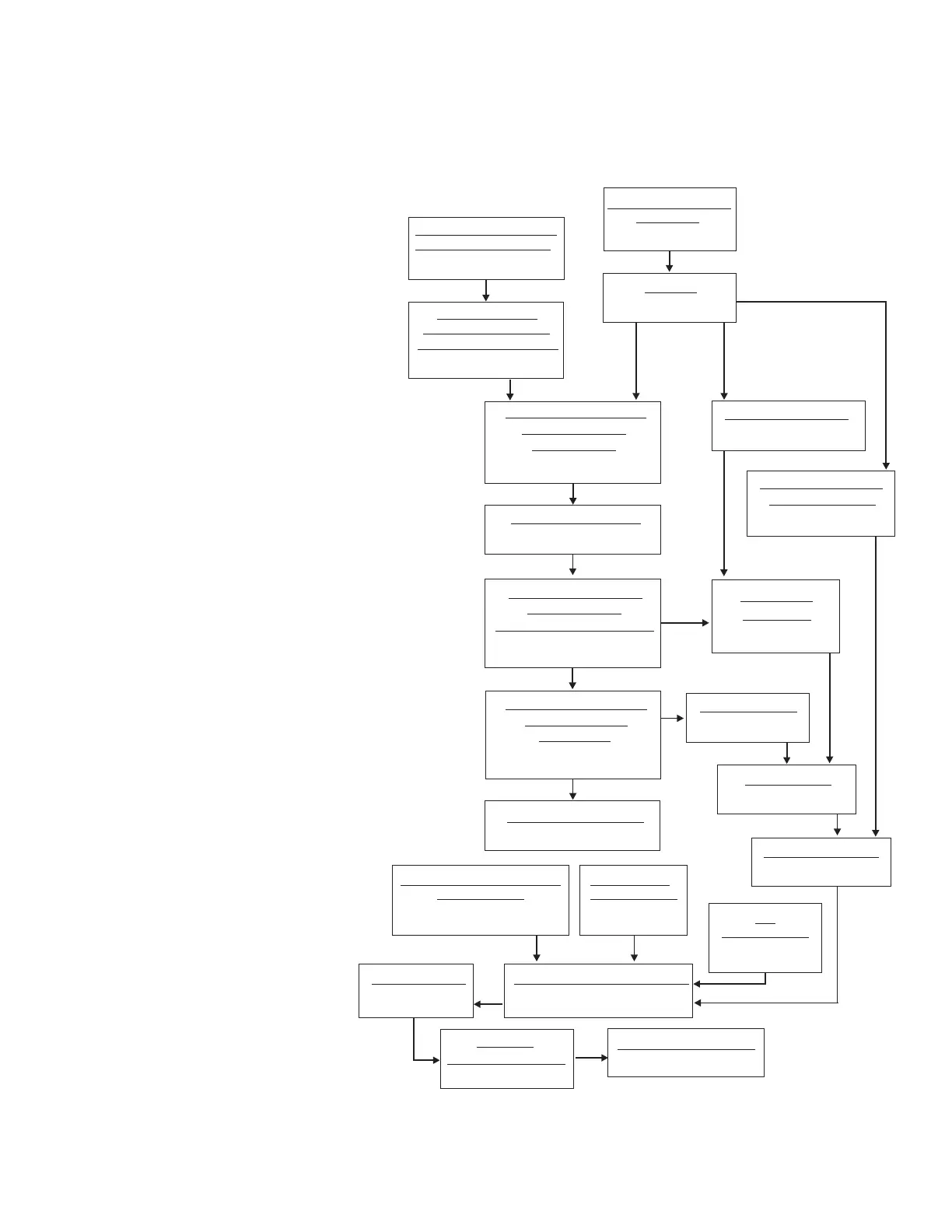

Figure 5-2 Signaling Provisioning Flowchart for SIP with SCTP
Transport
SECURED FEATURE
(RC/V 8.22)
UPGRADE
SIP GSM
(RC/V 5.80)
EQUIPMENT SUBUNIT -
(RC/V 22.4)
PROTOCOL HANDLER
PSU PROTOCOL
(RC/V 22.16)
HANDLER CHANNEL
GROUP ASSIGNMENTS
PROCESSOR GROUP
(RC/V 33.16)
INTERNET PROTOCOL
(RC/V 33.1)
(IP) PROCESSOR
ASSIGNMENT
ETHERNET INTERNET
(RC/V 33.4)
PROTOCOL (IP)
INTERFACE ASSIGNMENT
INTERNET PROTOCOL
(RC/V 33.3)
(IP) ROUTING TO
INTERFACE
IP PING PARAMETERS
PACKET GROUP DEFINITIONTRUNK GROUP
ASSIGN ROUTE INDEX
(RC/V 33.17)
(RC/V 5.71)(RC/V 5.1)
(RC/V 10.2)
CCS OFFICE
PARAMETERS
(RC/V 8.15)
FAR END POINT
(RC/V 33.21)
END POINT
SCTP NEAR
(RC/V 33.19)
ASSOCIATION
(RC/V 33.22)
ASSOCIATION SET
(RC/V 33.23)
SCTP PARAMETERS
(RC/V 33.18)
SCTP ASSOCIATION
(RC/V 33.20)
PARAMETER SET
SIP CALL
PROCESSING SMS
(RC/V 5.81)
SIP PSTN INTERWORKING
PARAMETERS
(RC/V 5.83)
SIP
PARAMETERS
(RC/V 5.82)
Provisioning Sequences
Provisioning
....................................................................................................................................................................................................................................
235-200-118
Issue 3.02B, March 2007
Lucent Technologies
5-5
