The SIP PH supports an external interface, the LLE2 paddle board.
The LLE2 paddle board terminates an Ethernet connection which
provides the connection to the layer 2 switch or router.
Timing
No changes.
Configuration
The SIP PHs are configured as processor groups each having one or
two PHs. When configured with two PHs in a processor group, both
PHs are active with one being designated as serving and the other PH
as non-serving. Refer to section“Serving/Non-Serving” (2-30) for
additional information.
The GQPHs are configured as active loadshared PHs with a standby
spare PH.
Service impacts to
subscriber
Cause Effect
SIP PH failure transient calls timeout and
abandon; stable calls remain.
Cause Effect
GSM full initialization with or
without pump
most transient calls supported by
SIP PHs dropped; stable calls
should be recovered.

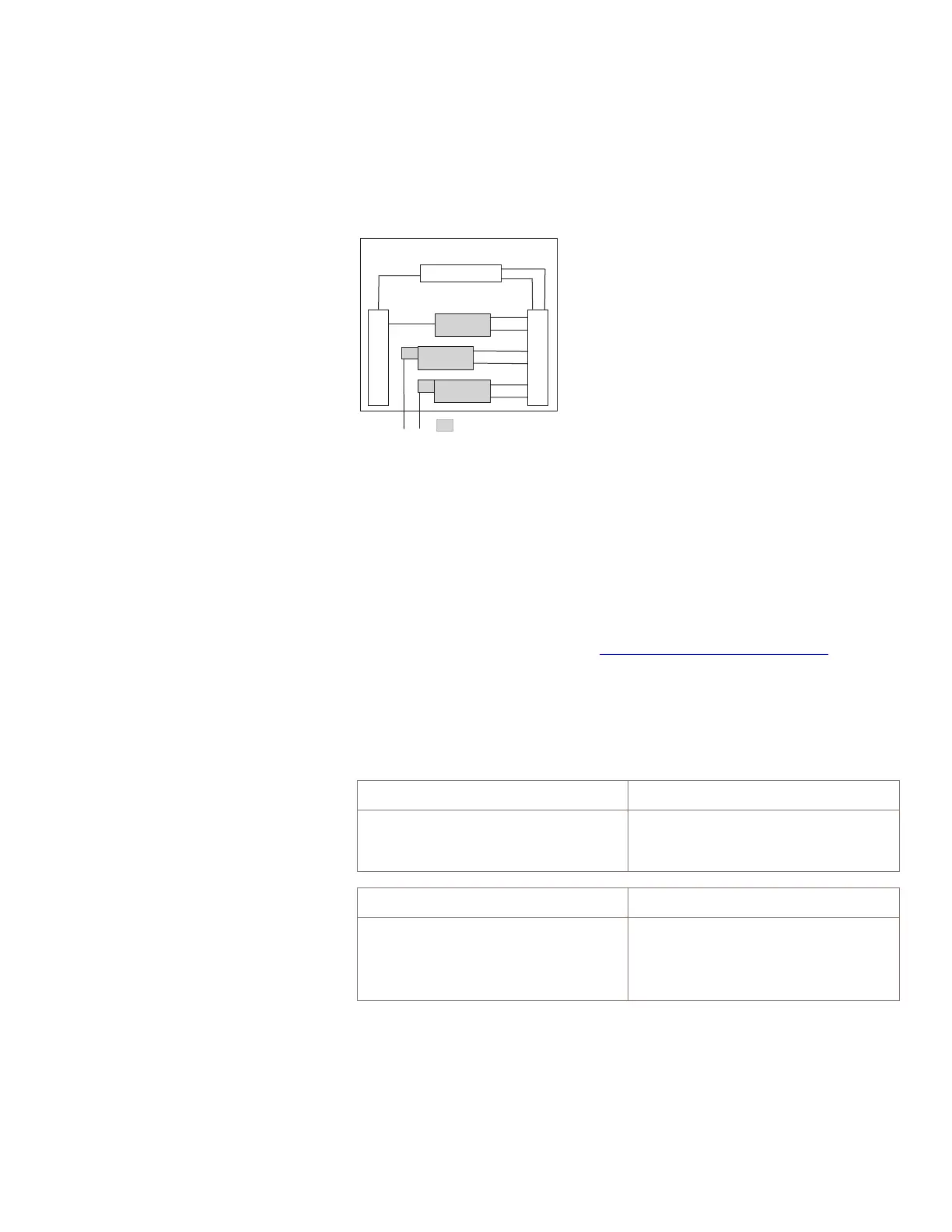

Figure 2-16 Connecting circuits
PSU2
GQPH
SIP PH
SIP Signaling
over Ethernet
D
2
F
CF2
Serving
Non-Serving
CIB
CIB
PIB
PHDB
CB
PB
P
2
F
SIP PH
CB
PB
CB
PB
LLE2
LLE2
- new hardware
Hardware View
Architecture
....................................................................................................................................................................................................................................
235-200-118
Issue 3.02B, March 2007
Lucent Technologies
2-29
