Í Acceleration ramps, page 114
510-POBLN - Maximum linear braking acceleration in negative direction (K20)
509-POBLP - Maximum linear braking acceleration in positive direction (K19)

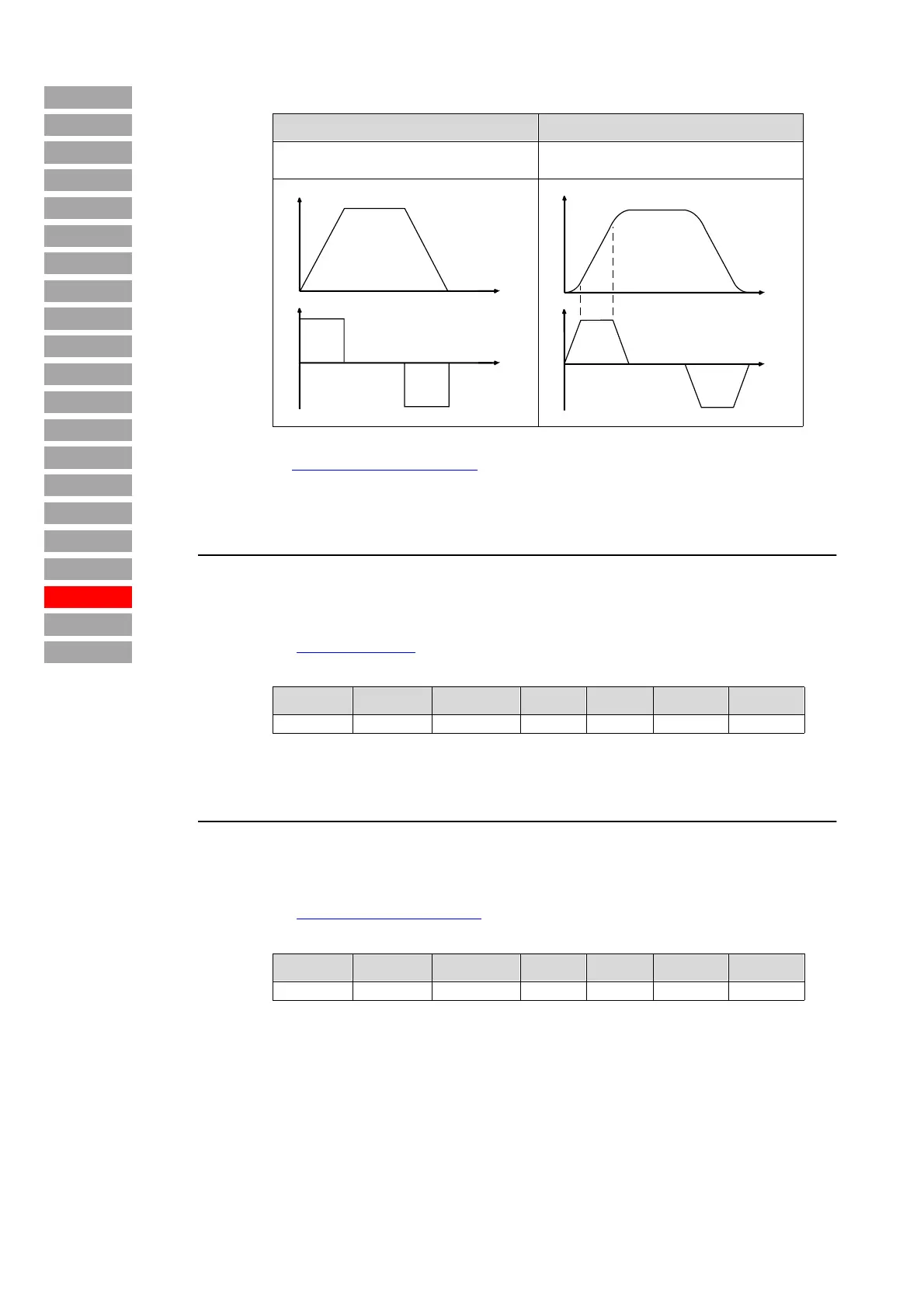

Linear: Sinusoidal:
Advan-
tage:
Greatest possible dynamics
Smooth but rapid acceleration, so smooth posi-
tioning.
Function: Parameter only on MC7000.
The parameter determines the maximum permissible linear braking acceleration for
movements in negative direction (K20).
Í Acceleration ramps
Values:
Minimum Maximum Factory set. Unit MODE SMARTCARD Type
1 2147483647 100 –R4W4POMODTERM
Function: Parameter only on MC7000.
The parameter determines the maximum permissible braking acceleration for move-
ments in positive direction (K19).
Í Acceleration ramps, page 114
Values:
Minimum Maximum Factory set. Unit MODE SMARTCARD Type
1 2147483647 100 – R4W4 POMOD TERM
v
t
a
t
v
t
a
t
