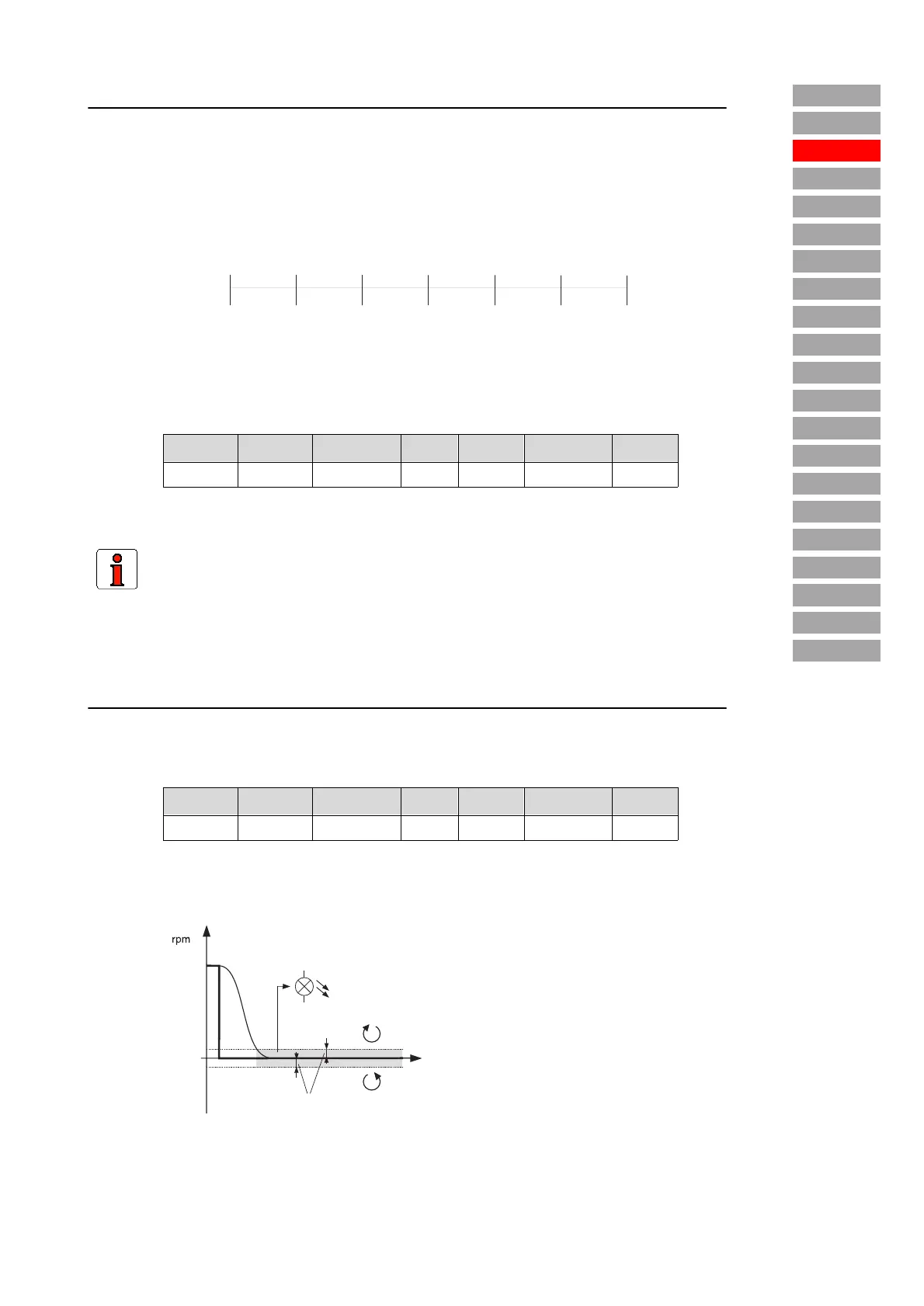

136-RNTAB - Bit field of valid operation modes
Source: Run mode table
Function: Parameter RNTAB is a 6-word field. Within a word each bit ( 6 * 16 = 96 bits) represents
one operation mode. The position of a set bit within the field corresponds to the number of
an operation mode which can be activated on the device in question.
Its structure is as follows:
Bit = operation mode, see parameter RNMOD\
401-SPD_0 - Standstill window (limit value for speed = 0 )
Source: Speed = 0
Function: Window for ”Motor is stopped” message.
If the motor speed is higher than this window, the direction of rotation is indicated by sym-
bols on the KeyPad.
Reference: Thick line
Actual: Thin line
Values:
Minimum Maximum Factory set. Unit MODE SMARTCARD Type
0 FFFFh ? – R5W15 Non USIGN16
Note:
The parameter is not writable. It is initialized at the factory according to the device
design. It cannot be read on the KP100 (display ”xxxx”).
Values:
Minimum Maximum Factory set. Unit MODE SMARTCARD Type
0.019989 20 10 rpm R1W2 REFRC INT32Q16
Word
Bit
01 2345
0163248648095
n (t)
[
min
-1
]
t
n= 0
