_VAL – Actual value parameter Subject area • 139Parameter Description MC6000/7000

_ENCD

_VAL

Index

_VFCON

_PMOD

_KPAD

Contents

Introduction

_SIO

_SCTY

_REF

_SYS

_IO1

_IO2

_CAN

_OPT1

_MOT

_CONF

_TCON

_SCON

_PCON

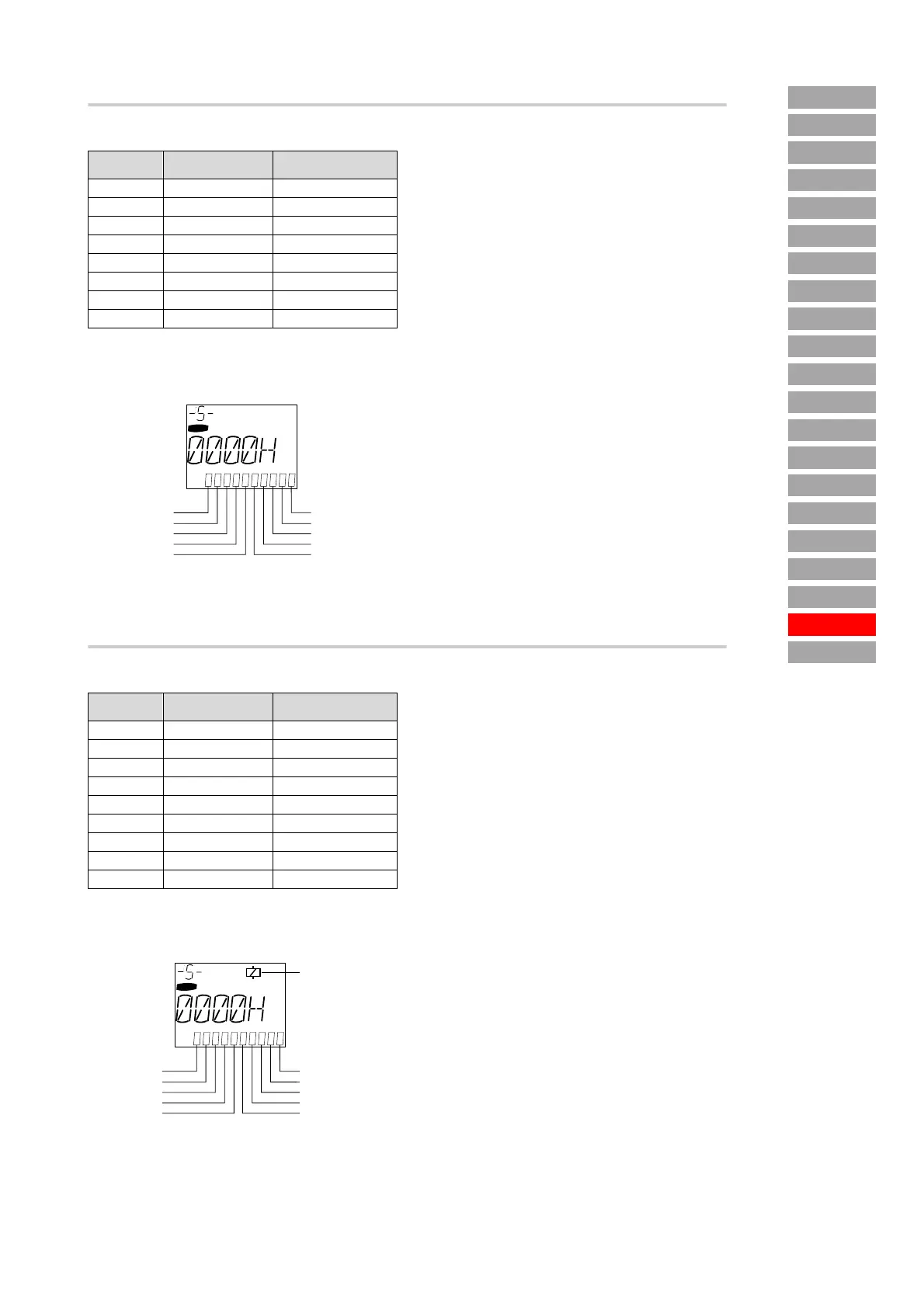

IOSTA on MC6000

The parameter displays the IO status in hexadecimal format:

For representation on the KeyPad bar graph display parameter BARG = IOSTA must be set.

1) Only with digital function of input/output

IOSTA on MC7000

The parameter displays the IO status in hexadecimal format:

For representation on the KeyPad bar graph display parameter BARG = IOSTA must be set.

1) Only with digital function of input/output

Bit position Value of position Input/output

0 0001 H ENPO

1 0002 H IS00

2 0004 H IS01

3 0008 H OS00 (only digital)

4 0010 H OS01

5 0020 H ISA0 (only digital)

6 0040 H ISA1 (only digital)

7...15 reserved

Bit position Value of position Input/output

0 0001 H ENPO

1 0002 H IS00

2 0004 H IS01

3 0008 H OS00 (only digital)

4 0010 H OS01

5 0020 H ISA0 (only digital)

6 0040 H ISA1 (only digital)

7 0080 H OS03

8...15 reserved

VAL

ENPO

IS00

IS01

OS00

OS01

reserved

ISA1

ISA0

(0001H)

(0002H)

(0004H)

(0008H)

(0010H)

(0200H)

(0100H)

(0080H)

(0040H)

(0020H)

VAL
