To reposition the right reel arm cylinder:
1024344
D
A
B
C

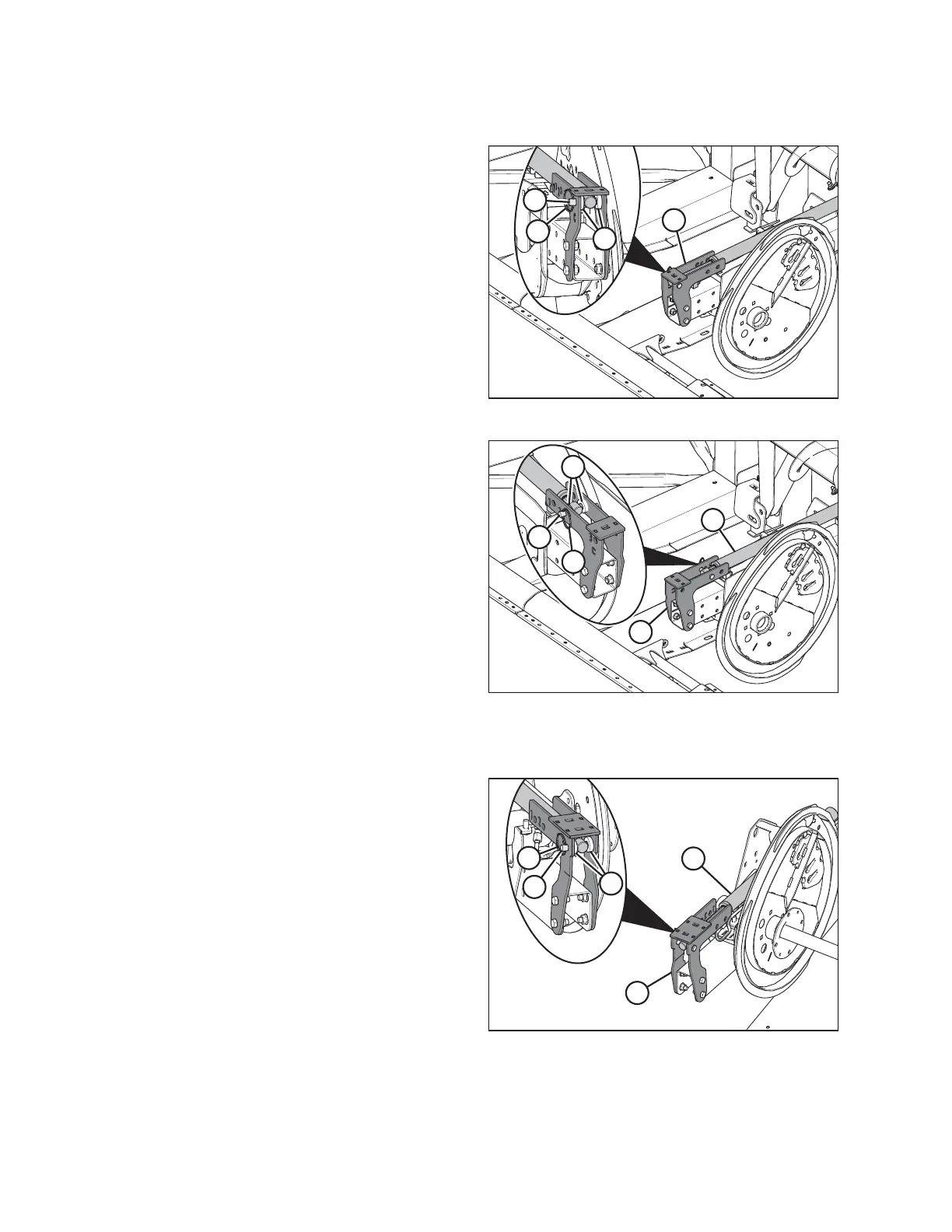

Figure 3.113: Forward Position – Center Arm
6. Remove ring (A), clevis pin (B), and washers (C) from
bracket (D). Retain the ring, clevis pin, and washers.
1024355
E
D
A
B
C
Figure 3.114: Center Reel Arm in Aft Position
7. Push the reel back until the end of cylinder (E) lines up with
the reel position 2 hole on bracket (D). Position washers (C)
on both sides of the cylinder end inside the bracket.
8. Reinstall clevis pin (B) at the new position. Secure it with
ring (A).
To reposition the right reel arm cylinder:
1024356
A
B
E
D
C
Figure 3.115: Right Reel Arm in Forward Position
9. Remove ring (A), clevis pin (B), and washers (C) from
bracket (D). Retain the ring, clevis pin, and washers.
10. Push the reel back until the end of cylinder (E) lines up with
reel position 2 hole on bracket (D).
NOTE:
The washers inside the center arm support bracket are not
shown in the illustration.
11. Reinstall clevis pin (B) at the new position. Secure it with
ring (A).
