MacDon FlexDraper FD75 - Challenger, Gleaner, and Massey Ferguson Combines; Attaching Header to Challenger, Gleaner, or Massey Ferguson Combine

214323 298 Revision B
5.3 Challenger
®
, Gleaner
®
, and Massey Ferguson
®
Combines
5.3.1 Attaching Header to Challenger
®
, Gleaner
®
, or Massey Ferguson
®
Combine
NOTE:
The CA25 Combine Adapter is equipped with a multicoupler that connects to the combine. If the combine is equipped with
individual connectors, a multicoupler kit (single-point connector) must be installed. Refer to the table below for a list of kits
that are available through your combine Dealer.
Table 5.1 Multicoupler Kits
Combine Kit Number
Challenger
®
71530662
Gleaner
®
R/S Series
71414706
Massey Ferguson
®
71411594
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1001486
B
A

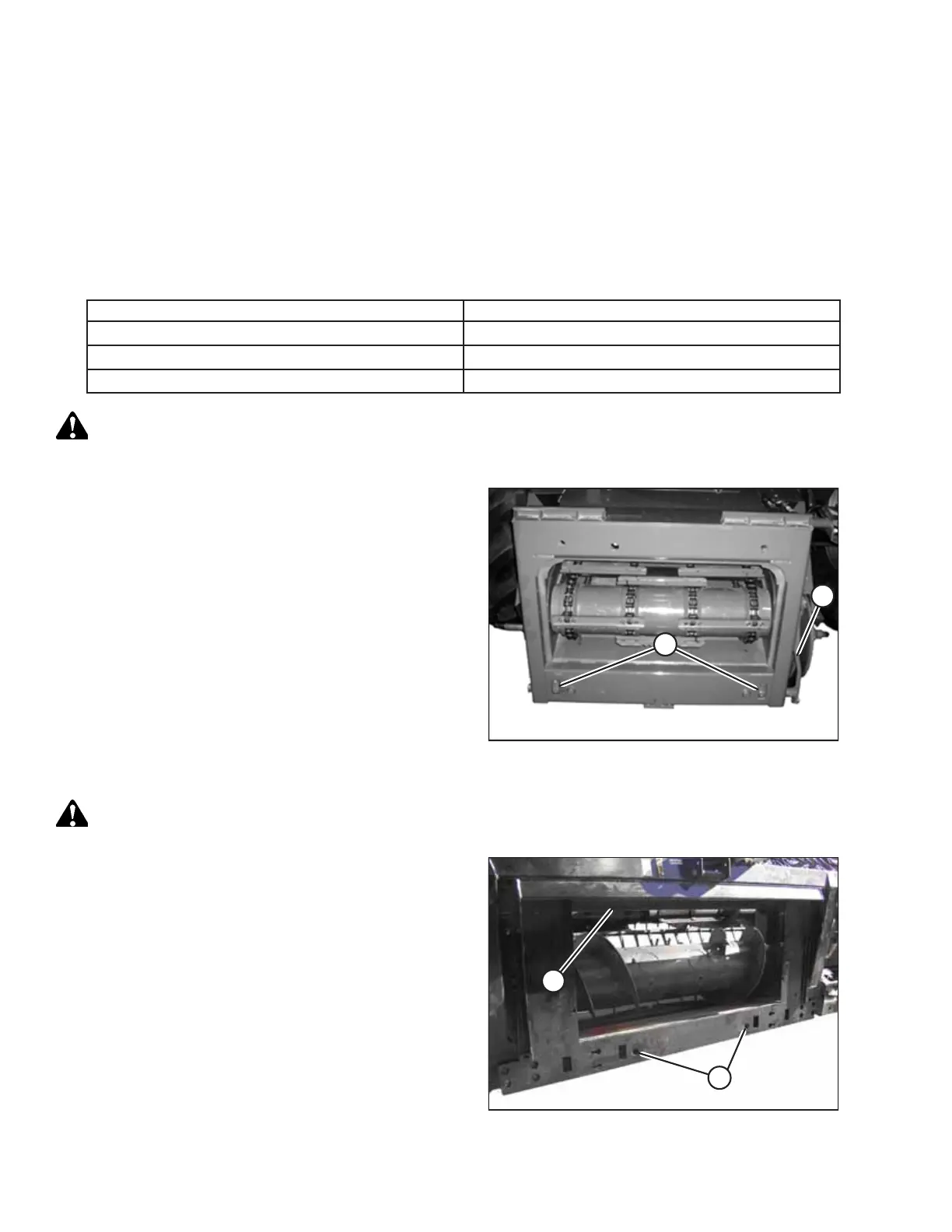

Figure 5.20: Combine Feeder House
1. Use lock handle (B) to retract lugs (A) at the base of the
feeder house.
DANGER
Never start or move the machine until you are sure all bystanders have cleared the area.
1001475
A
B
Figure 5.21: Adapter
2. Start the engine.
3. Slowly approach the header until the feeder house is
directly under adapter top cross member (A) and alignment
pins (C) on the feeder house (shown in Figure 5.22, page
299) are aligned with holes (B) in the adapter frame.
HEADER ATTACHMENT/DETACHMENT
