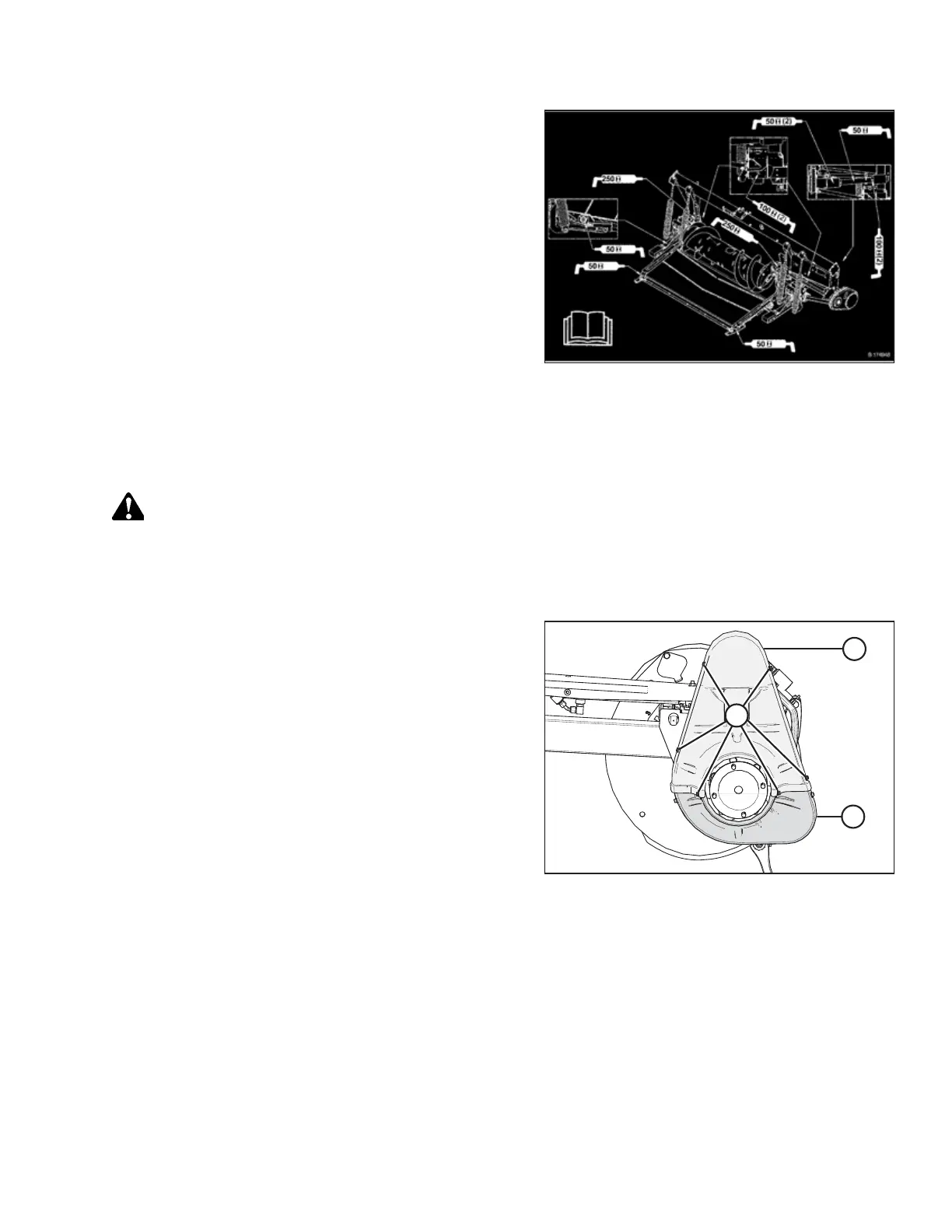

Figure 6.17: CA25 Adapter Master Grease Point Decal
1. Wipe grease fitting with a clean cloth before greasing to
avoid injecting dirt and grit.
2. Inject grease through fitting with grease gun until grease
overflows fitting (except where noted).
3. Leave excess grease on fitting to keep out dirt.
4. Replace any loose or broken fittings immediately.
5. Remove and thoroughly clean any fitting that will not take
grease. Also clean lubricant passageway. Replace fitting if
necessary.
6. Use high temperature, extreme pressure (EP2) performance
with 1% max molybdenum disulphide (NLGI Grade 2)
lithium base unless otherwise specified.
Lubricating Reel Drive Chain – Double Reel
The reel drive chain should be lubricated every 100 hours.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from
the ignition.
Figure 6.18: Drive Cover – Double Reel
2. Remove six bolts (A) securing upper cover (B) to the reel
drive and lower cover (C).
MAINTENANCE AND SERVICING
