7.2 Reel
7.2.1 Multi-Crop Rapid Reel Conversion Kit

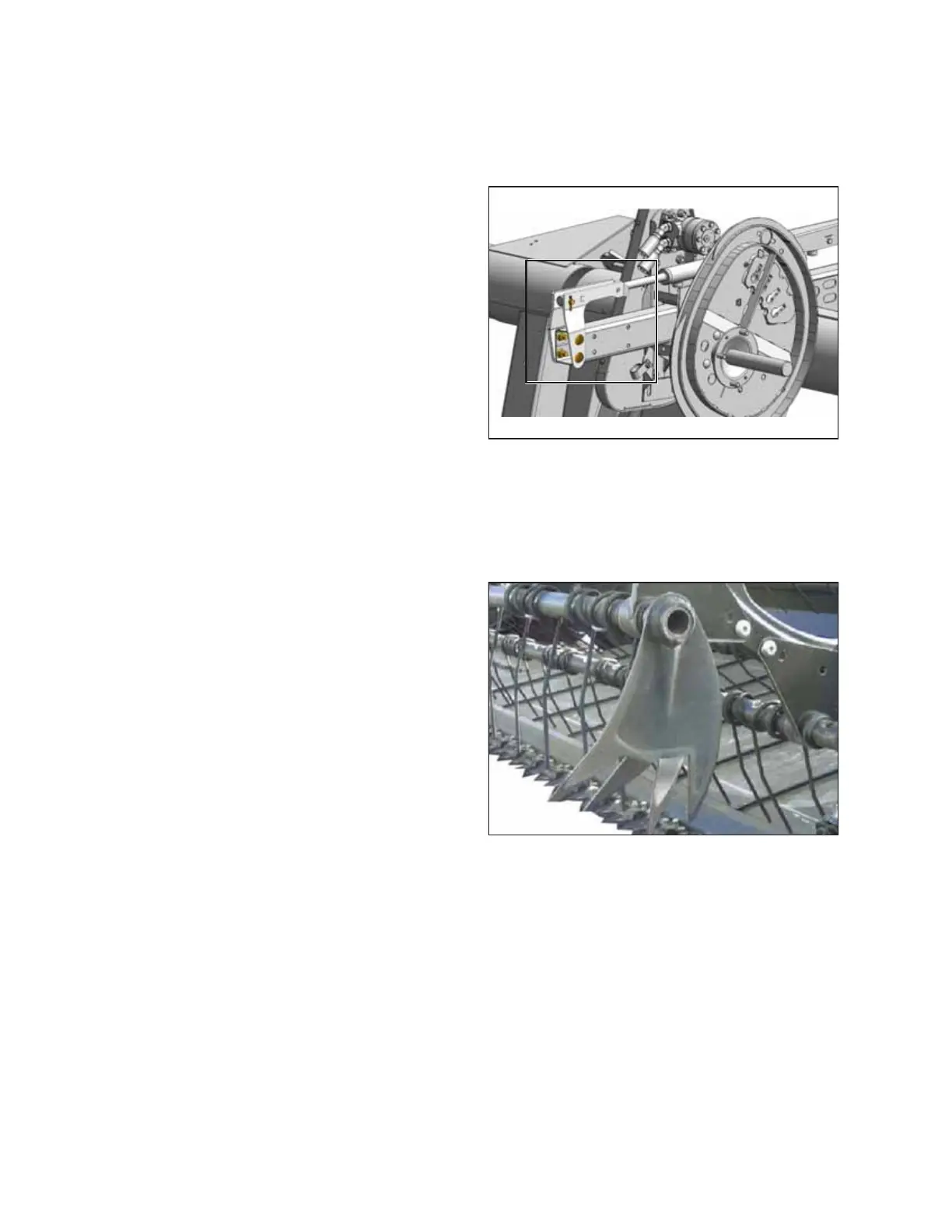

Figure 7.2: Center Arm – Left and Right Similar
For use on the double-reel headers only, the Multi-Crop Rapid
Reel Conversion Kit decreases the time required to change the
fore-aft cylinder position on the reel support arm from the
normal operating location to an aft location that minimizes crop
disturbance. The kit also enables the reel fore-aft cylinders to be
quickly relocated to the normal operating location.
Installation instructions are included in the kit.
MD #B6590
7.2.2 Lodged Crop Reel Finger Kit
The steel fingers provided in the Lodged Crop Reel Finger kit attach to the ends of every other tine tube and help to clear
material in heavy, hard-to-cut crops such as lodged rice.
Figure 7.3: Lodged Crop Finger
Each kit contains three fingers for the cam end of the reel and
three fingers for the tail end. Hardware and installation
instructions are included in the kit.
MD #B4831
7.2.3 PR15 Tine Tube Reel Conversion Kit
This kit allows conversion from a six-bat reel to a nine-bat reel.
Installation instructions are included in the kit.
Order the following bundles according to your header size and type:
• 9.1 m (30 ft.) – Plastic Fingers MD #B5278
• 9.1 m (30 ft.) – Steel Fingers MD #B5657
• 10.7 m (35 ft.) – Plastic Fingers MD #B5674
