214323 188 Revision B
4.11 Gleaner
®
R62/R72 Combines
To make your header’s auto header height control system compatible with Gleaner
®
R62/R72 combines, you must set your
combine’s header configuration options for the particular model of header, check the height sensor voltage range, and
calibrate the AHHC system to ensure that it is working correctly.
4.11.1 System Requirements – Gleaner
®
R62/R72
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to combine
operator’s manual for updates.
The following system components are required in order for auto header height control (AHHC) system to work:
• Main module (PCB board) and header driver module (PCB board) mounted in card box in fuse panel module (FP)
• Multifunction control handle operator inputs
• Operator inputs mounted in control console module (CC) panel
NOTE:
In addition to components listed above, electro-hydraulic header lift control valve is an integral part of system.
4.11.2 Calibrating Auto Header Height Control – Gleaner
®
R62/R72
For best performance of the auto header height control (AHHC), perform these procedures with center-link set to D. When
setup and calibration are complete, adjust center-link back to desired header angle. For instructions, refer to 3.7.4 Header
Angle, page 78.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to combine
operator’s manual for updates.
DANGER
Ensure that all bystanders have cleared the area.
To calibrate auto header height control, follow these steps:
1. Ensure center-link is set to D.

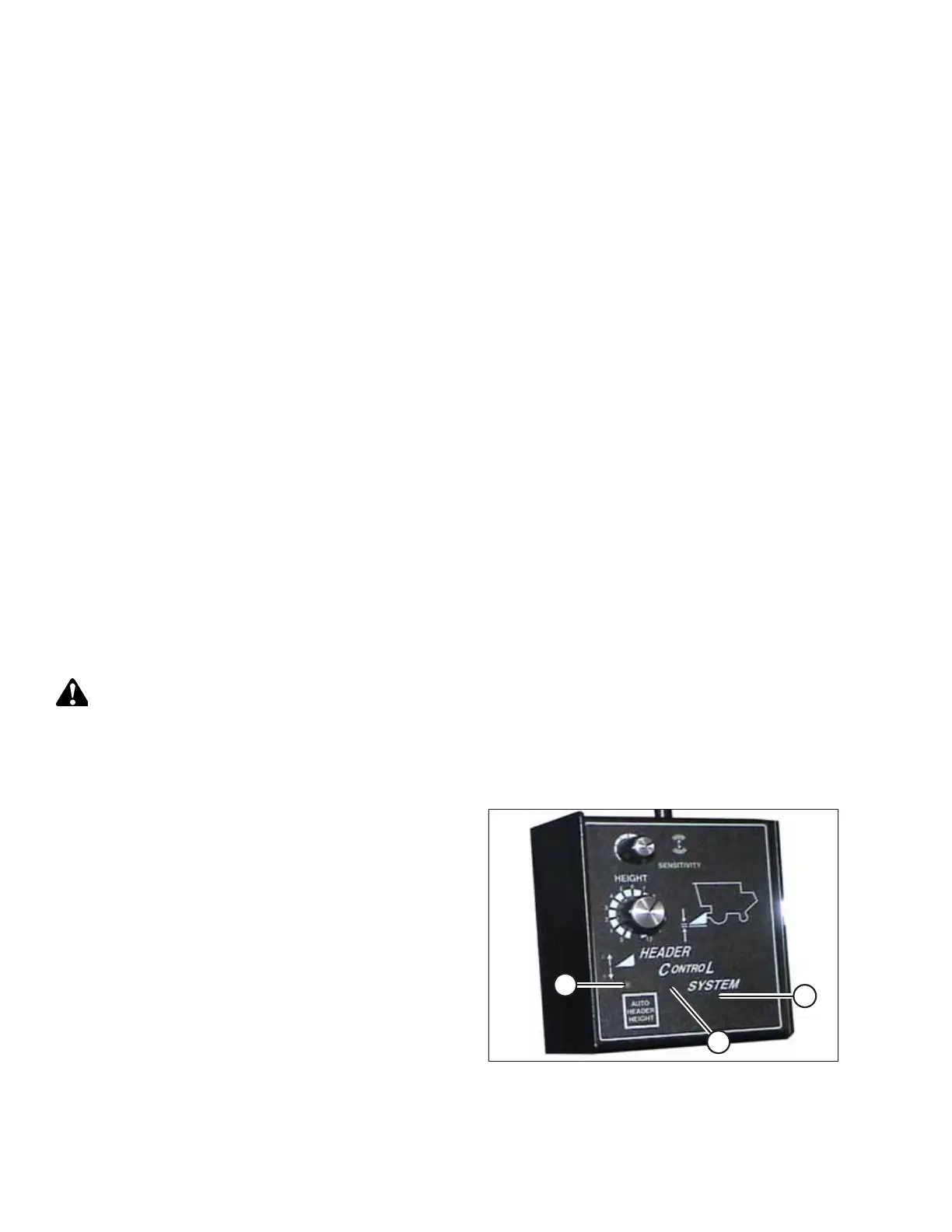

Figure 4.122: Combine Header Control System
2. Start the engine, and press and hold hidden C1 button (A)
until LED light (B) flashes briefly.
3. Lower the feeder house as far as it will go.
4. Press and hold hidden L2 button (C) until LED light (B)
flashes briefly. The AHHC system is now calibrated.
AUTO HEADER HEIGHT CONTROL
