5.7 Attaching and Detaching Header from Adapter and Combine
Headers can be attached to the CA25 from either field or transport configurations.
The procedures in this manual require that the adapter remains attached to the combine. Attach or detach the adapter
only if performing the following tasks:
• Changing headers
• Performing maintenance
5.7.1 Detaching Header from Adapter and Combine

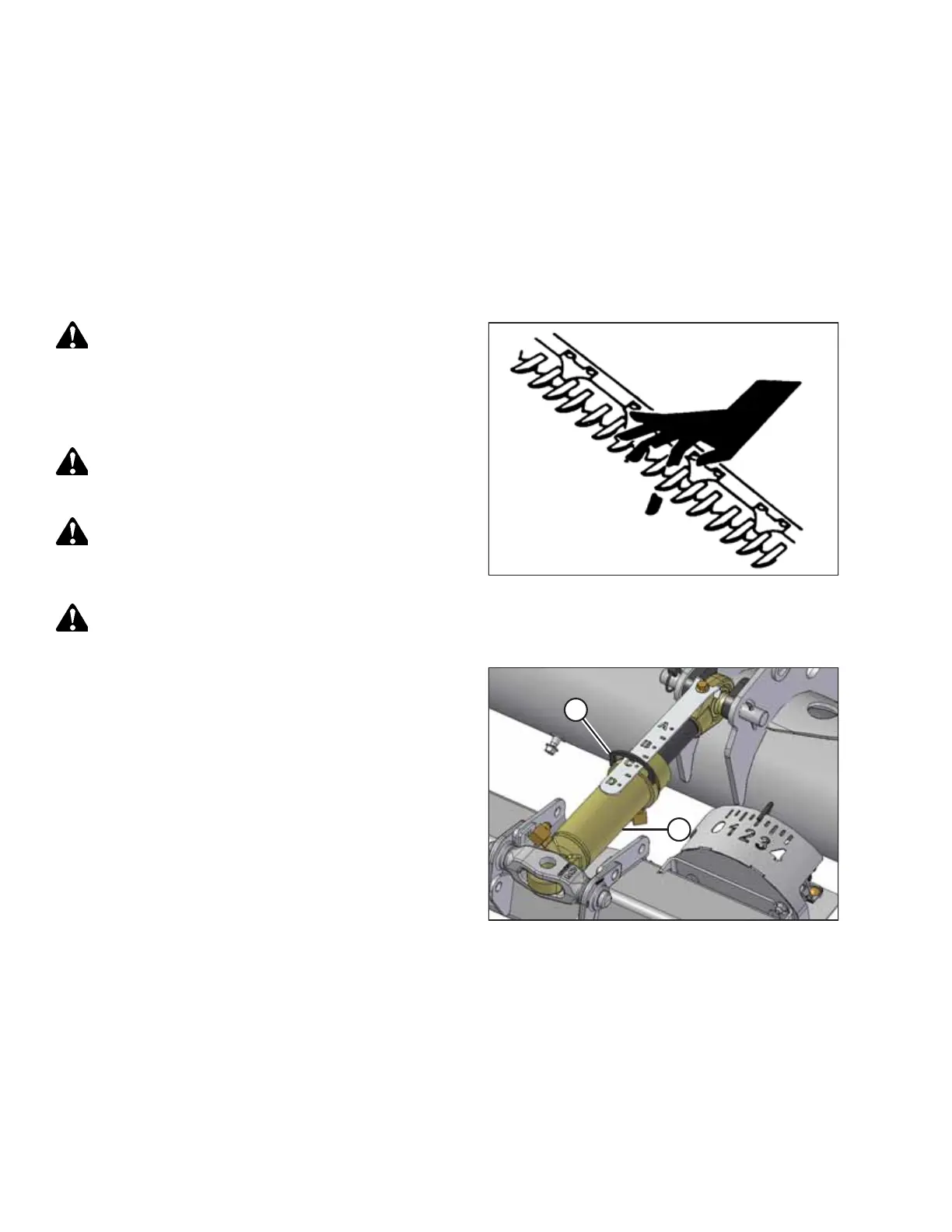

Figure 5.95: Cutterbar Hazard
DANGER
To prevent bodily injury or death from the unexpected start-up
or fall of a raised machine, always stop the engine, remove the
key, and engage the safety props before going under the header
for any reason.
DANGER
Ensure that all bystanders have cleared the area.
WARNING
Keep your hands clear of the area between the guards and
knife.
CAUTION
Wear heavy gloves when working around or handling knives.
Figure 5.96: Center-Link
1. Start the engine, and lower the header.
2. Increase the clearance under the adapter feed draper by
tilting the header until cylinder (B) is fully extended and
indicator (A) is at D.
3. Raise the reel to its full height.
4. Stop the engine, and remove the key from the ignition.
5. Engage the reel safety props. For instructions, refer to
Engaging Reel Safety Props, page 31.
HEADER ATTACHMENT/DETACHMENT
