6.14.4 Replacing Double-Reel U-Joint
The double-reel drive U-joint allows each reel to move independently from the other.
Lubricate the U-joint according to specifications. For instructions, refer to 6.3.6 Lubrication, page 350.
Replace the U-joint if it is severely worn or damaged. For instructions, refer to Removing Double-Reel U-Joint, page 494.
Removing Double-Reel U-Joint
If the double-reel U-joint is worn or damaged, it will need to be replaced.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
2. Remove the drive cover. For instructions, refer to Removing Reel Drive Cover, page 488.

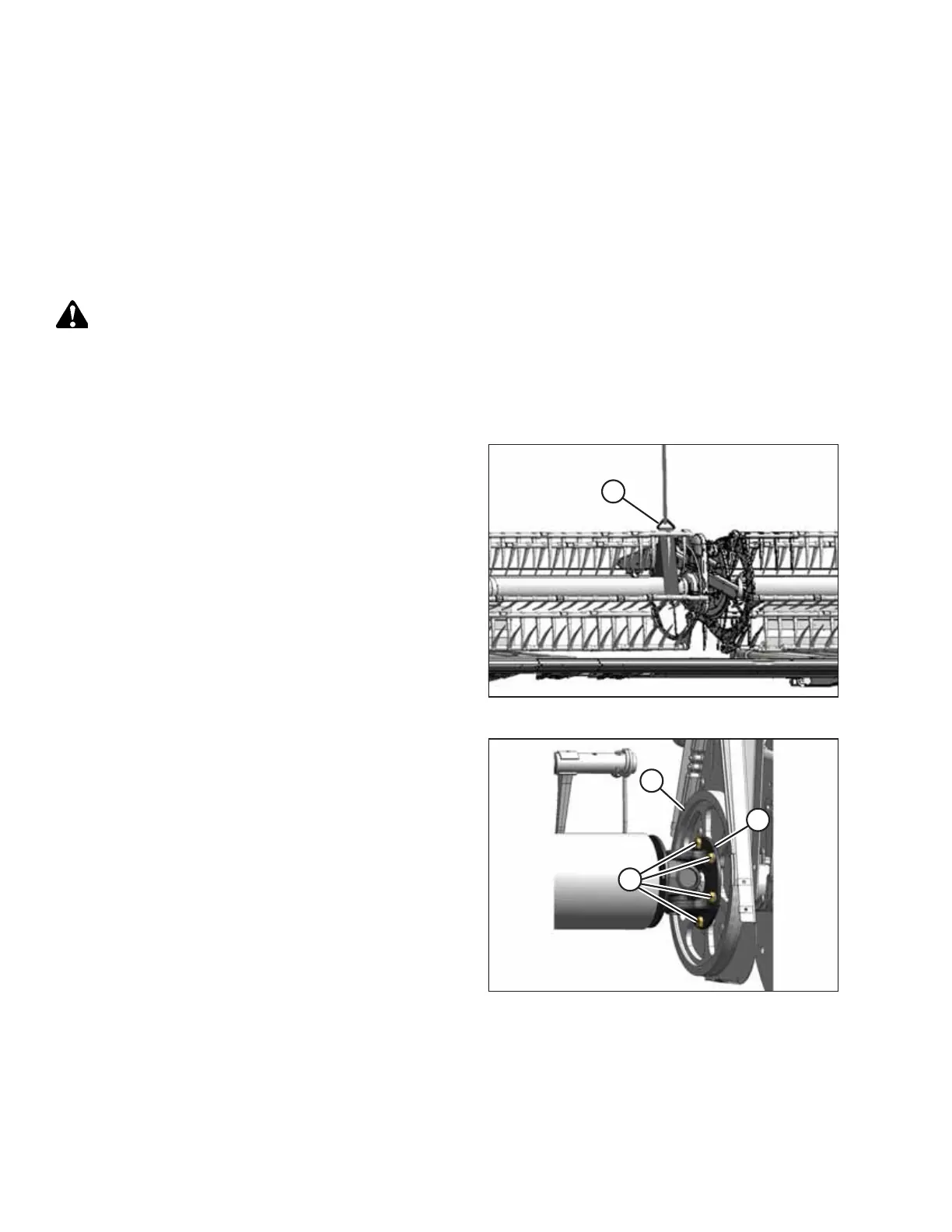

Figure 6.300: Supporting Reel
3. Support the inboard end of the right reel with a front end
loader and nylon slings (A) (or equivalent lifting device).
IMPORTANT:
Avoid damaging or denting the center tube by supporting
the reel as close to the cam end disc as possible.
Figure 6.301: U-Joint
4. Remove six bolts (A) attaching U-joint flange (B) to driven
sprocket (C).
5. Remove the U-joint.
NOTE:
It may be necessary to move the right reel sideways for the
U-joint to clear the tube.
