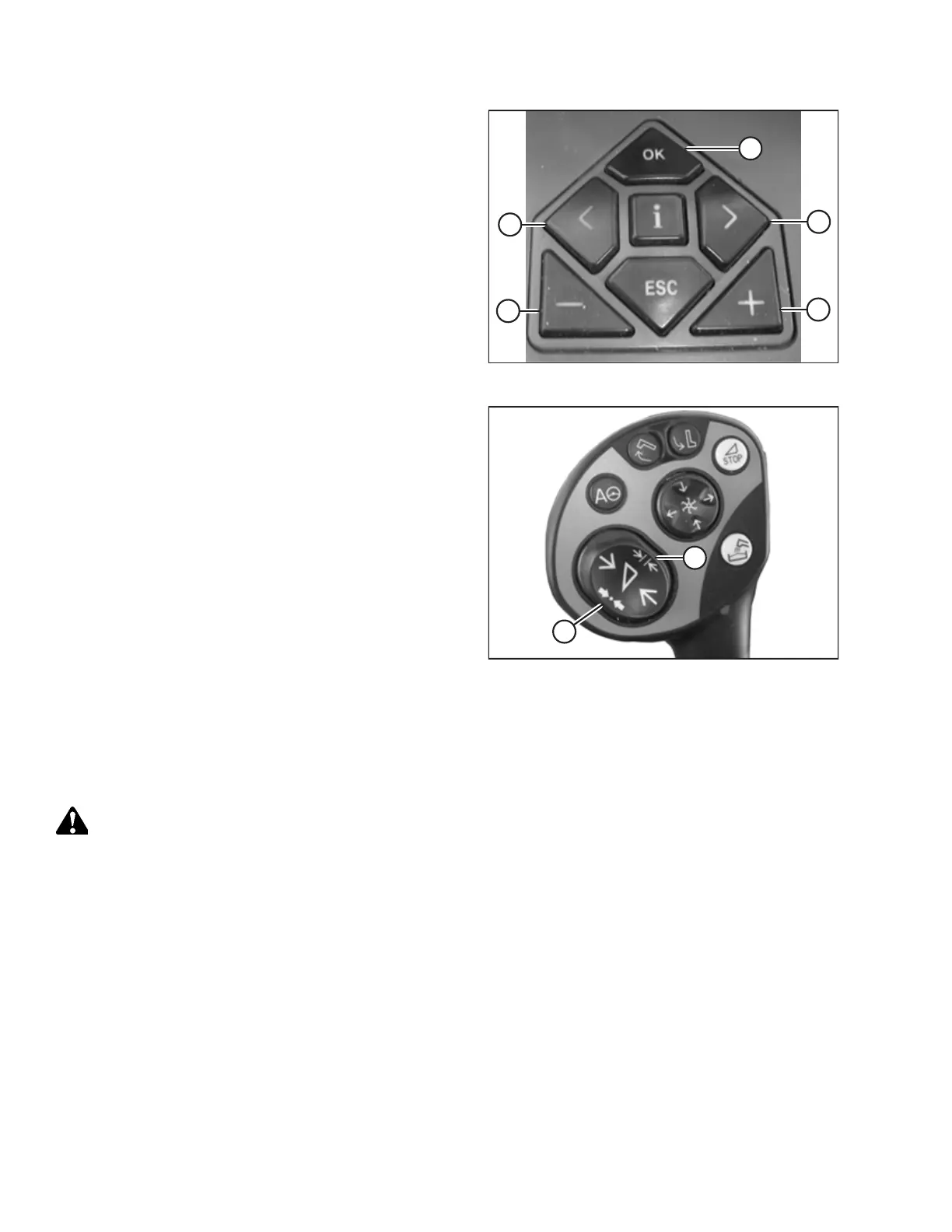

Figure 4.93: CLAAS Combine Controls
6. Use < key (C) or > key (D) to select the CUTTING HEIGHT
page. Press OK key (E).
7. Use – key (A) or + key (B) to set the desired cutting height.
An arrow indicates the selected cutting height on a scale.
1003744
A
B
Figure 4.94: Joystick Buttons
8. Briefly press button (A) or button (B) in order to select the
header set point.
9. Repeat Step 7, page 174 to adjust the set point.
4.9.4 Setting Cutting Height Manually – CLAAS 500 Series
Instead of being preset, the cutting height while using the auto header height control system (AHHC) on your CLAAS 500
combine can be set manually.
DANGER
Check to be sure all bystanders have cleared the area.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for updated information.
AUTO HEADER HEIGHT CONTROL
