MacDon FlexDraper FD75 - Knife Guards; Adjusting Knife Guards

214323 404 Revision B
6.8.7 Knife Guards
Perform DAILY inspections to ensure the knife guards are aligned and the knife sections are contacting the shear surfaces
of the knife guards.
Adjusting Knife Guards
Bent knife guards may be able to be straightened with the optional guard straightening tool.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
NOTE:
Use guard straightening tool (MD #140135) available from your MacDon Dealer.
1. Shut down the engine, and remove the key from the ignition.
1001260

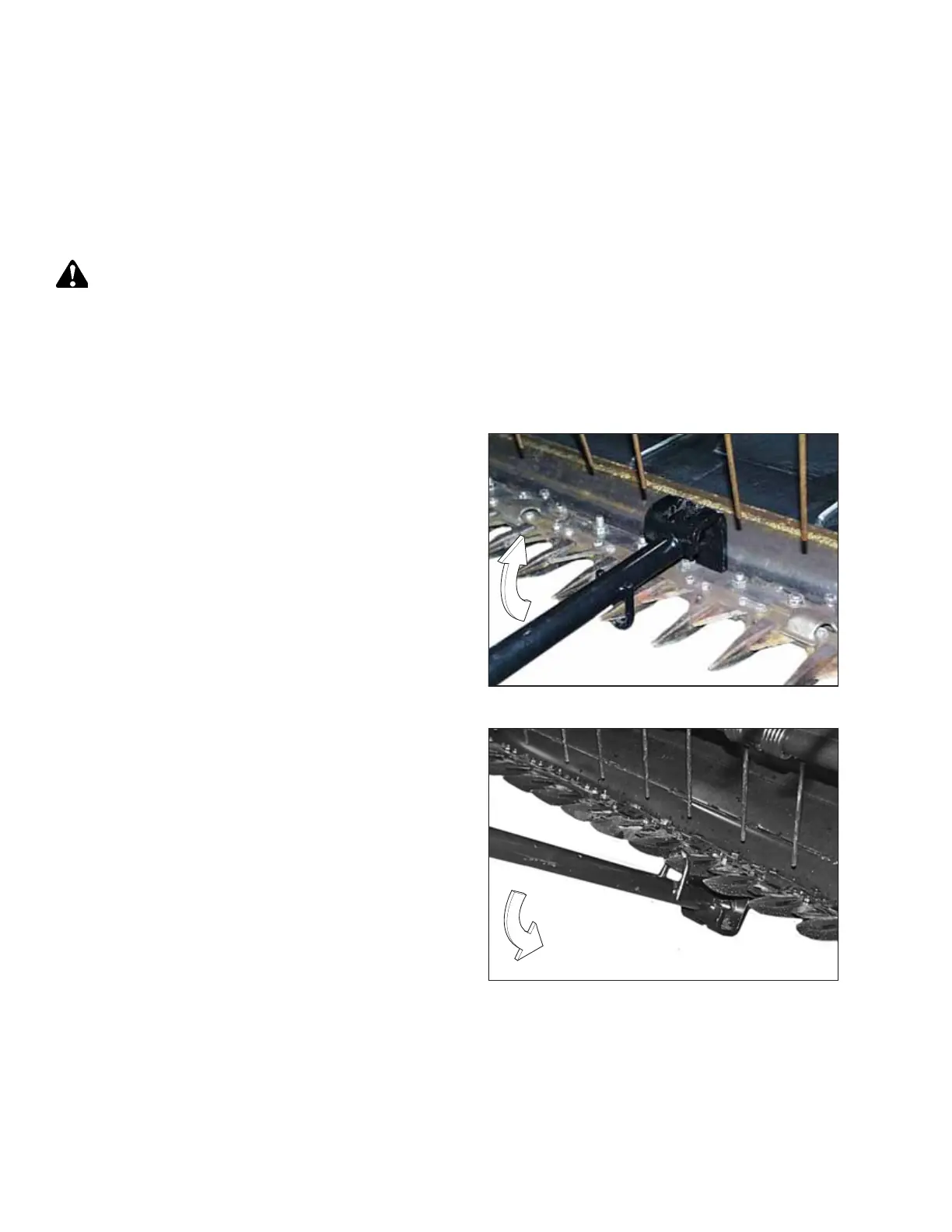

Figure 6.109: Upward Adjustment
2. Position the tool as shown, and pull up to adjust the guard
tips upwards.
1001261
Figure 6.110: Downward Adjustment
3. Position the tool as shown, and push down to adjust the
guard tips downwards.
NOTE:
If the crop is difficult to cut, install stub guards with top
guards and adjuster plates. A kit is available from your
MacDon Dealer. For information, refer to 7.3.3 Stub Guard
Conversion Kit, page 512.
MAINTENANCE AND SERVICING
