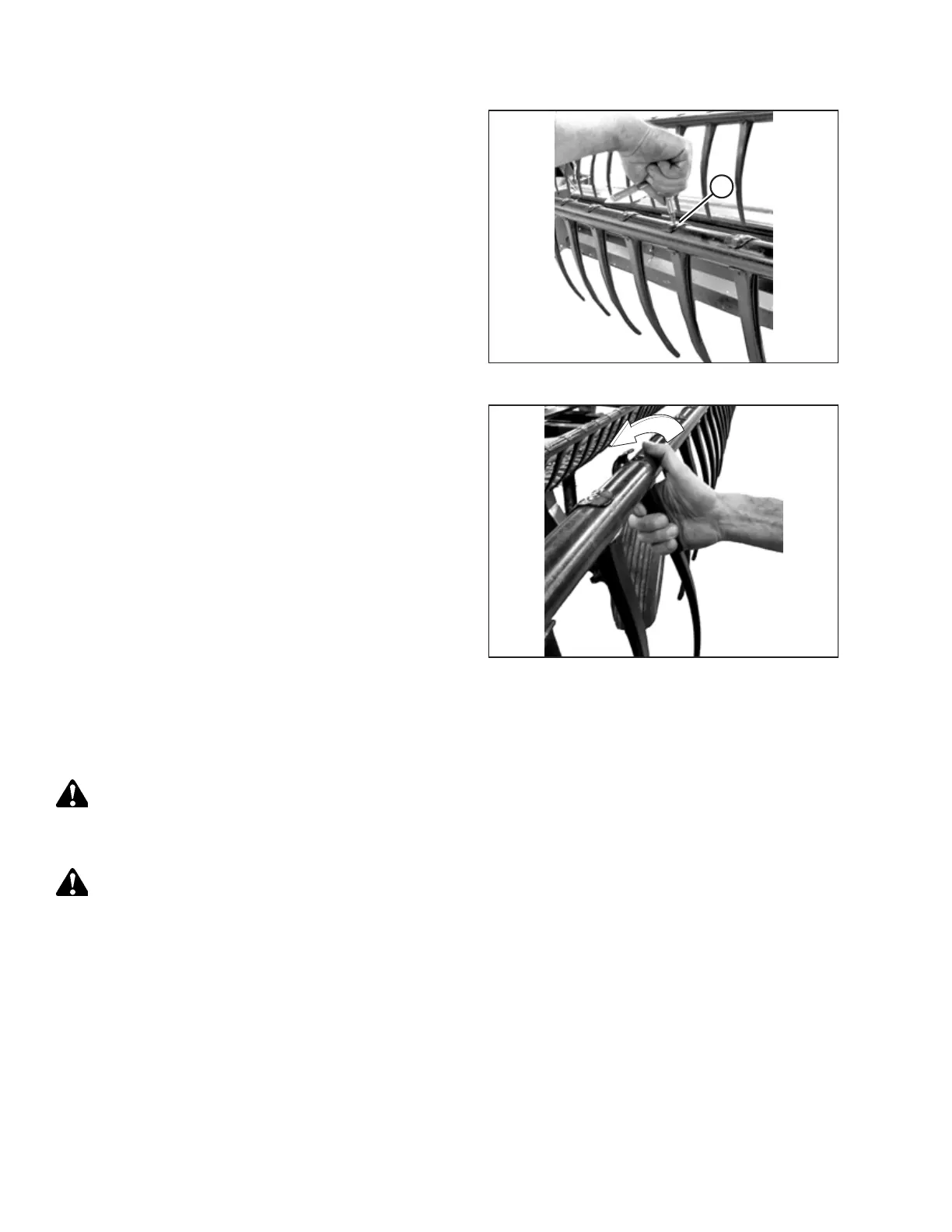

Figure 6.244: Removing Plastic Fingers
5. Remove screw (A) using a Torx
®
Plus 27 IP socket wrench.
Figure 6.245: Removing Plastic Fingers
6. Push the top of the finger off the reel tine tube while
slightly pulling on the tine under the tube. The finger can
then be removed.
Installing Plastic Fingers
Once the old plastic reel finger has been removed, a new one can be installed.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
