6.6 Header Drive
The header drive consists of a driveline from the combine to gearbox that drives the feed auger and a hydraulic pump. The
pump provides hydraulic power to the drapers, knives, and optional equipment.
6.6.1 Removing Driveline
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
The driveline normally remains attached to the adapter and is stored on the hook provided when not in use.
1. If the adapter is attached to the combine, remove the driveline from the combine by pulling the quick disconnect collar
to release the driveline yoke at the combine shaft.
1001162
B
C
A

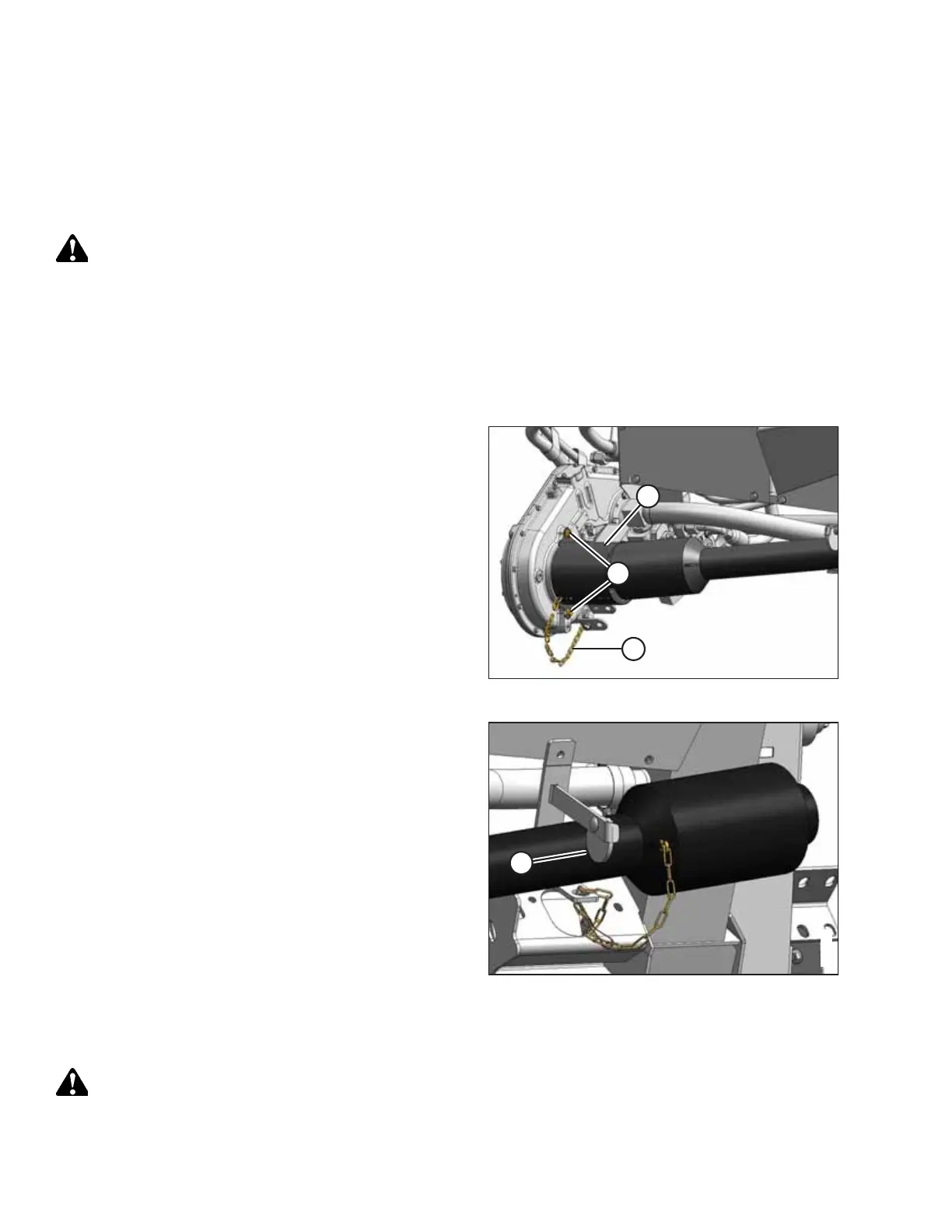

Figure 6.39: Adapter End of Driveline
2. Remove two nuts (A) securing shield (B) to the gearbox.
3. Slide shield (B) over the driveline shield to expose the quick
disconnect on the gearbox.
NOTE:
Do NOT disconnect tether (C), if equipped.
4. Pull the quick disconnect collar to release the driveline
yoke, and pull the driveline off the shaft.
5. Slide shield (B) off the driveline.
1001470
A
Figure 6.40: Combine End of Driveline
6. Rotate disc (A) on the adapter driveline storage hook, and
remove the driveline from the hook.
6.6.2 Installing Driveline
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
