3.7.13 Crop Divider Rods
Crop divider rods can be used in conjunction with crop dividers. The removable crop divider rods are most useful when
crop is down. In standing crops using only crop dividers is recommended.
Table 3.11 Crop Divider Rods Recommended Use
With Divider Rods Without Divider Rods
Alfalfa Lodged cereal Edible beans
Canola
Peas
Milo
Flax Soybeans
Rice
Grass seed Sudan grass
Soybeans
Lentils
Winter forage
Standing cereal
Removing Crop Divider Rods
To remove the crop divider rods and place them in their storage position, perform the removal procedure provided here.
1010234
A
B

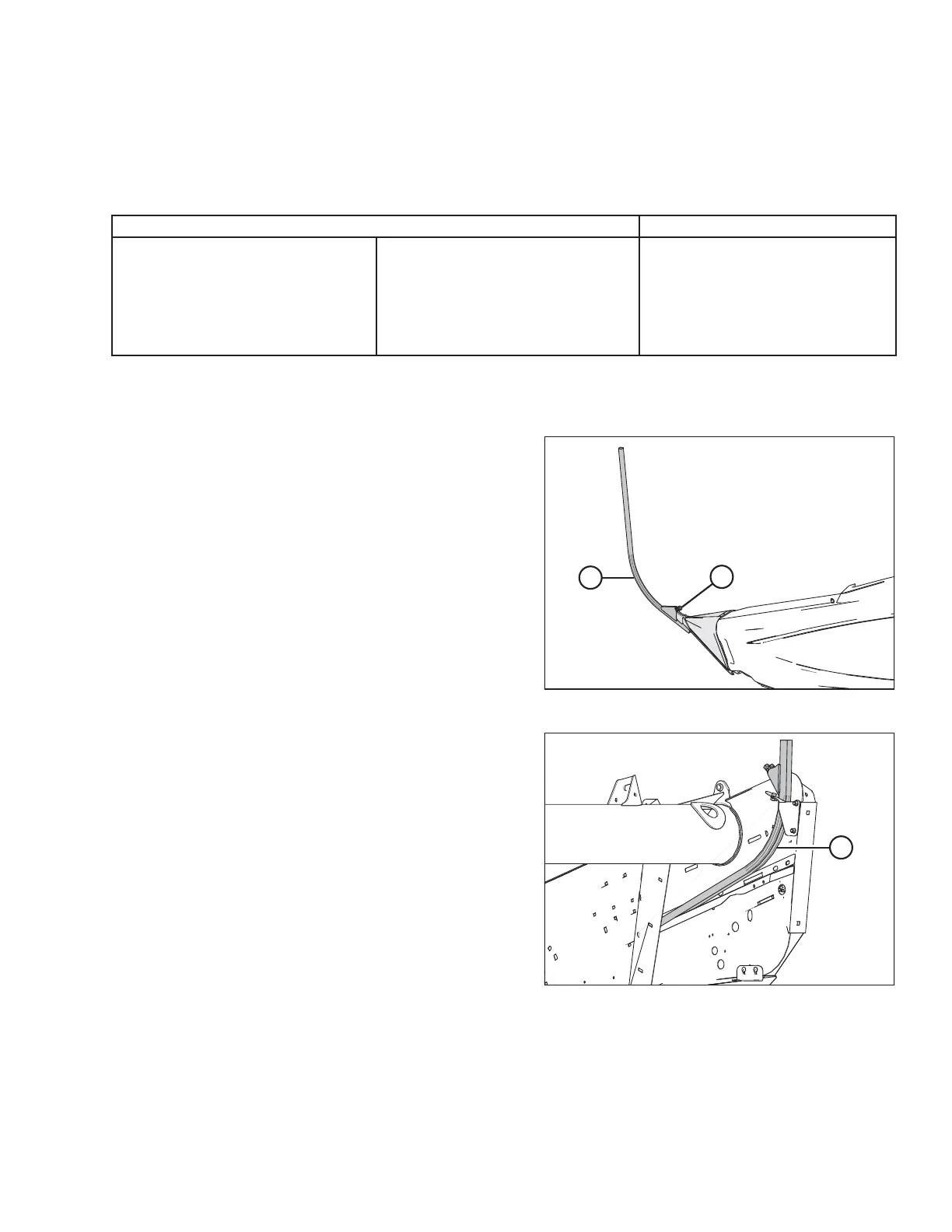

Figure 3.132: Crop Divider Rod
1. Loosen bolt (A) and remove crop divider rod (B) from both
sides of header.
1004684
A
Figure 3.133: Right Endsheet
2. Store both crop divider rods (A) inboard on the right
endsheet.
