214323 364 Revision B

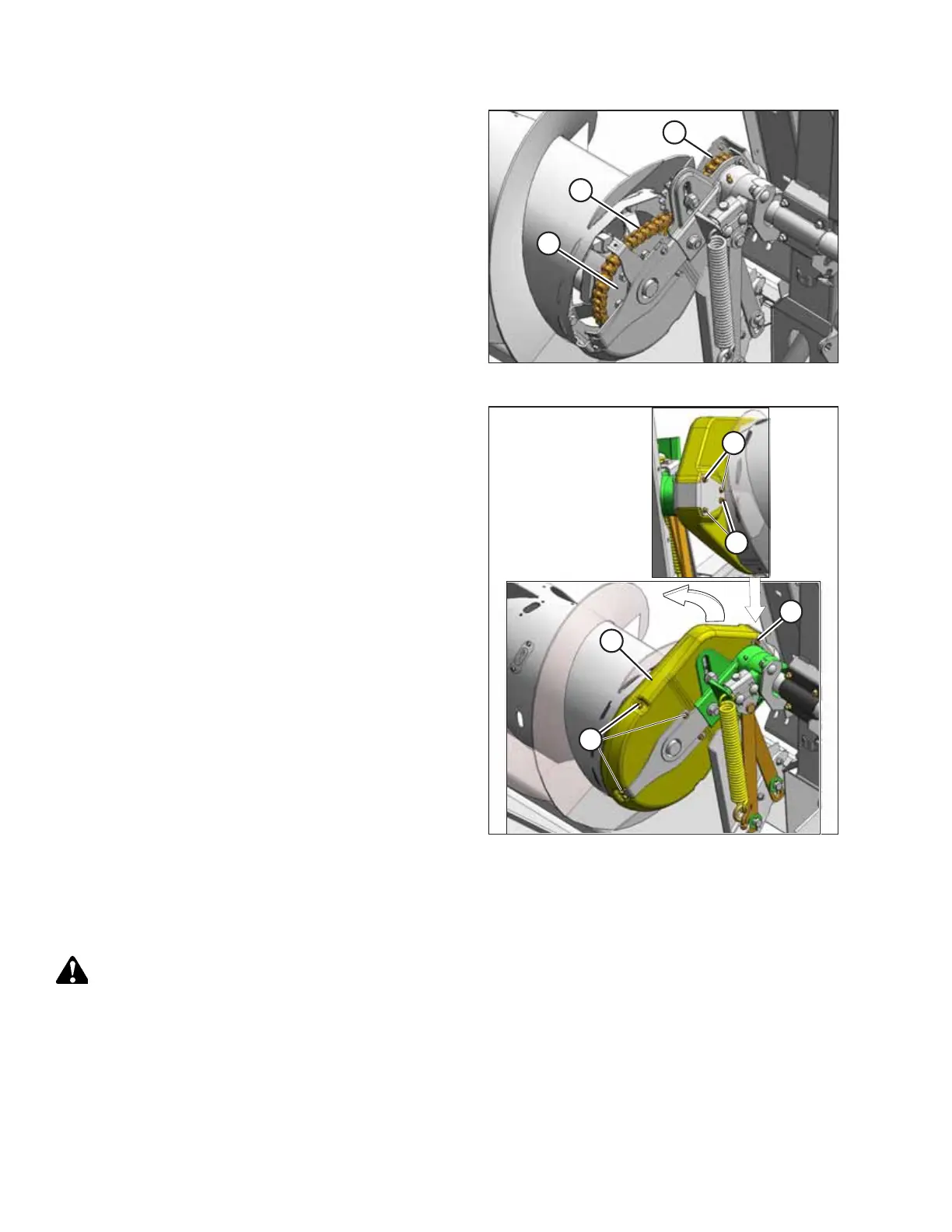

Figure 6.24: Auger Drive Chain
4. Apply a liberal amount of grease to the chain (A), drive
sprocket (B), and idler sprocket (C).
Figure 6.25: Auger Drive
5. Reinstall cover (C) by positioning the inboard lip into the
auger tube and then rotating the cover back until it engages
with the rear support.
6. Reinstall and tighten bolts (A) and (B).
Checking Oil Level in Header Drive Gearbox
Check header drive gearbox oil level every 100 hours.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
MAINTENANCE AND SERVICING
