6.10.6 Raising Polyethylene Door – Adapter Feed Deck

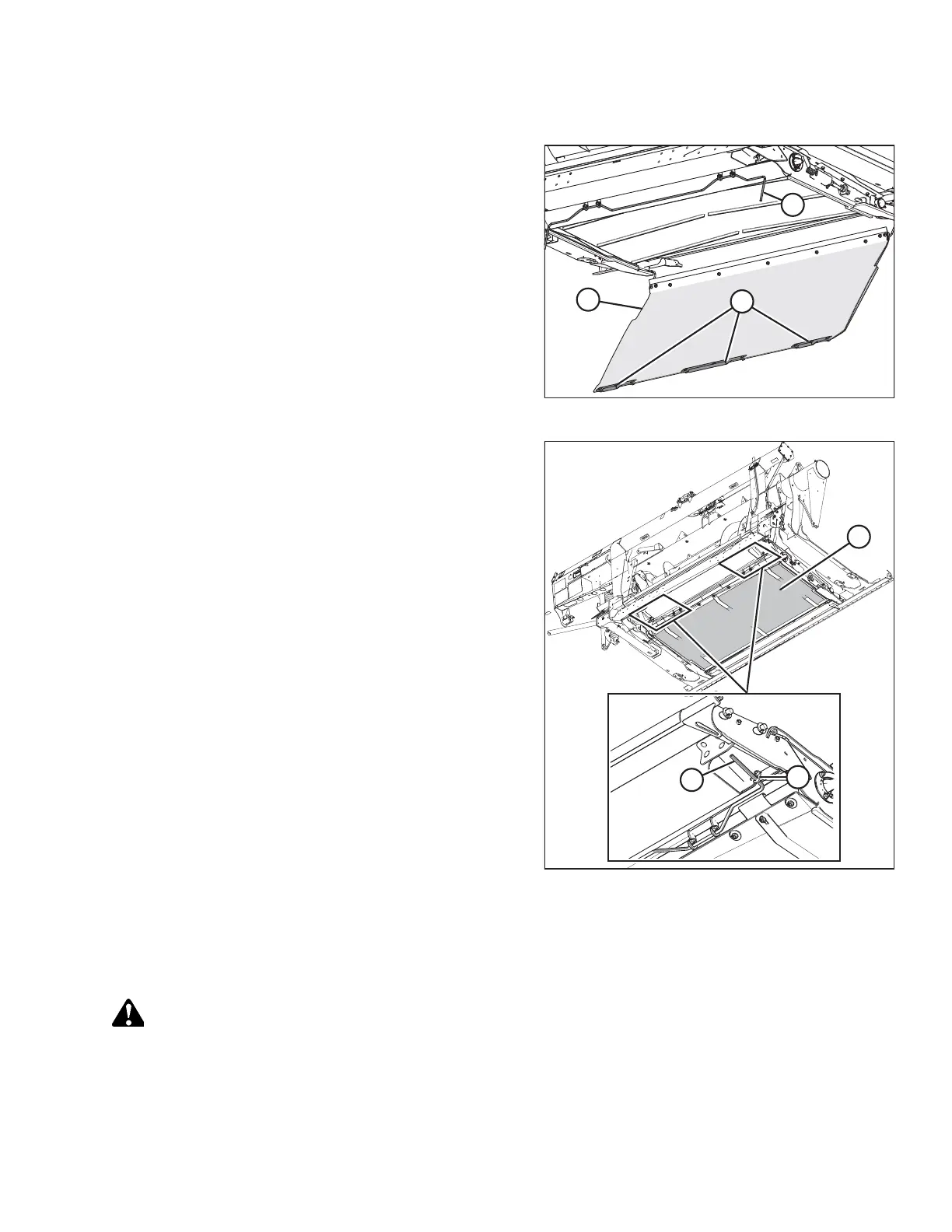

Figure 6.180: Feed Deck Polyethylene Door
1. Raise plastic pan (A).
2. Attach hooks (B) to lock handle (C).
IMPORTANT:
Ensure all three hooks are secured.
Figure 6.181: Feed Deck Polyethylene Door
3. Hold pan (C) and rotate handles (B) upward to secure pan.
4. Rotate latches (A) to lock handles (B).
6.10.7 Checking Link Holder Hooks
Check the left and right link holder hooks DAILY to ensure they are not cracked or broken.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Raise the header fully.
2. Shut down the engine, and remove the key from the ignition.
