3. Engage the header safety props. Refer to the combine operator’s manual for instructions.

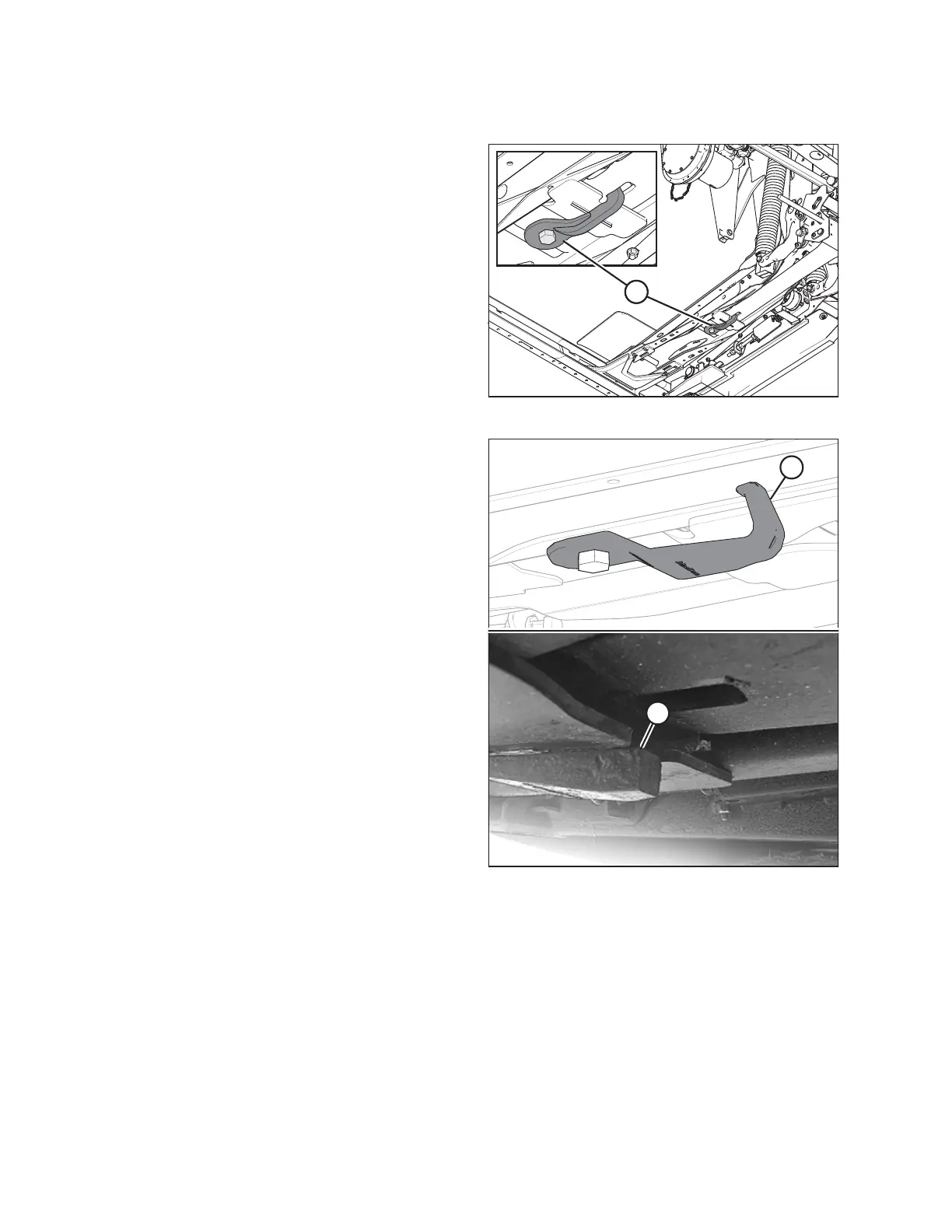

Figure 6.182: Feed Deck – View from Below
4. Before operation, ensure both link holder hooks (A) are
engaged on the float module under the feed deck
as shown.
NOTE:
Figure 6.182, page 440 shows the style of deck hook that is
current at the time of this manual’s publication. The
appearance of older hooks varies slightly.
Figure 6.183: Link Holder Hooks
• Undamaged link holder hook (A)
• Damaged/broken link holder hook (B)
• Stretched link holder (not shown)
