MacDon FlexDraper FD75 - Adjusting Tension on Gearbox Drive Chain

214323 377 Revision B
1001404
A
B

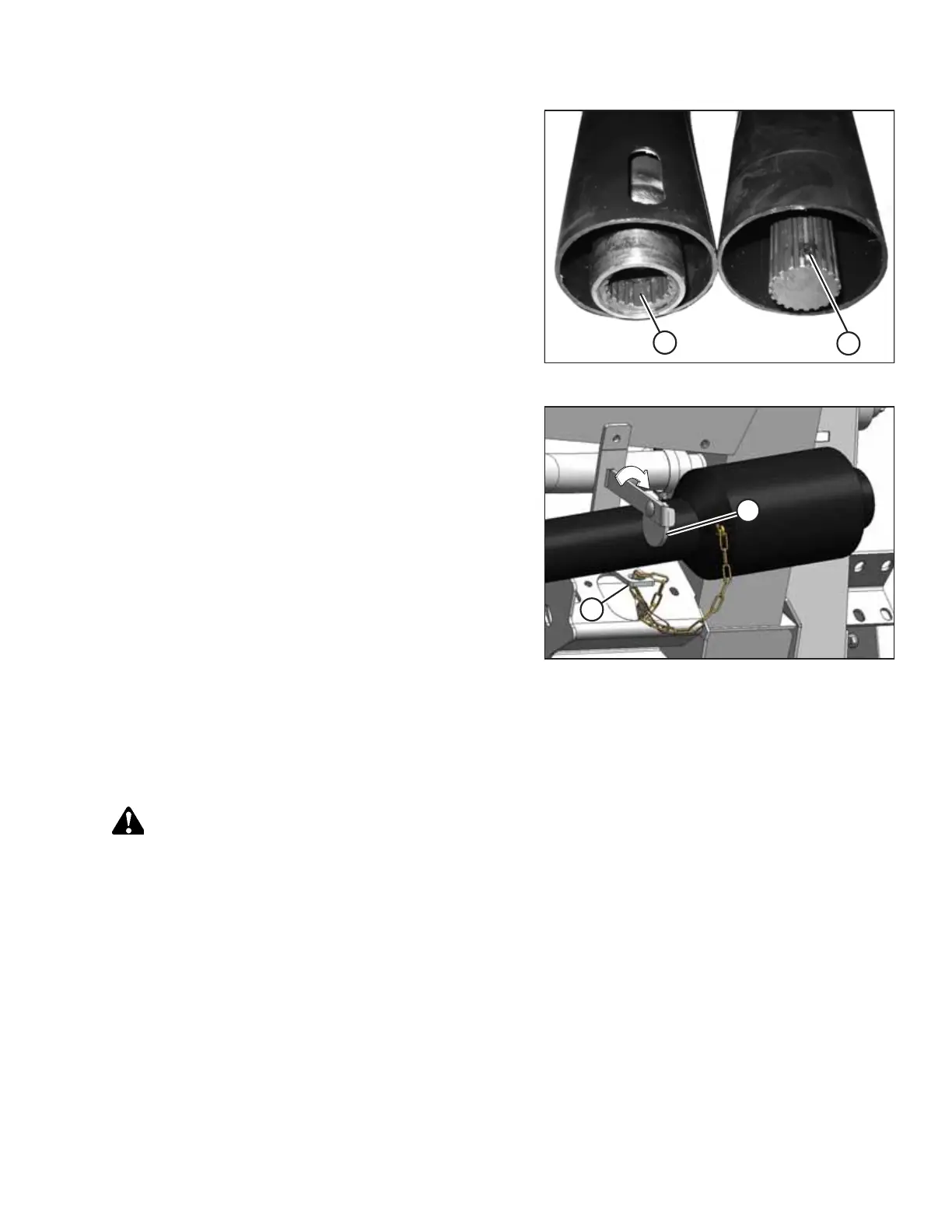

Figure 6.51: Driveline
5. Assemble the driveline.
NOTE:
The splines are keyed to align the universals. Align weld (A)
with missing spline (B) when assembling.
B
A
1001420
Figure 6.52: Combine End of Driveline
6. Slide the driveline into hook (A) so disc (B) drops and
secures the driveline (or connect to the combine).
6.6.5 Adjusting Tension on Gearbox Drive Chain
The gearbox drive chain tension is factory-set, but tension adjustments are required every 500 hours or annually
(whichever comes first). The gearbox drive chain, located inside the gearbox, requires no other regular maintenance.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
