MacDon FlexDraper FD75 - Engaging Auto Header Height Control - New Holland CR;CX Series

214323 267 Revision B
1003674
A

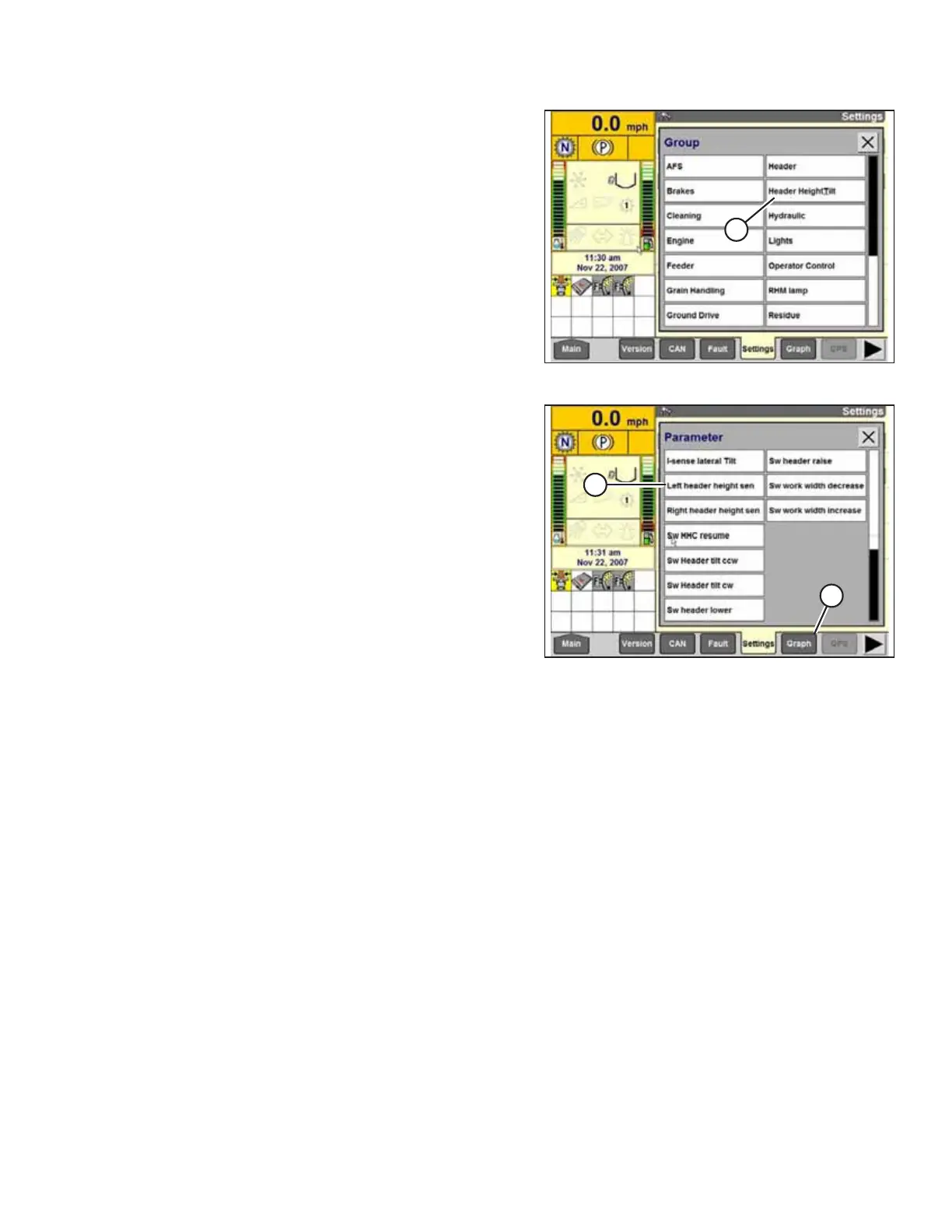

Figure 4.281: New Holland Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER page
appears.
1003675
A
B
Figure 4.282: New Holland Combine Display
9. Select LEFT HEADER HEIGHT SEN (A), and then select
GRAPH button (B). The exact height sensor output voltage
is displayed at the top of page.
10. Raise and lower the header to see the full range of height
sensor output voltage readings.
11. Adjust the voltage limits (refer to 4.4.2 Adjusting Voltage
Limits, page 137) if the sensor voltage is not within low and
high limits or if the range between the low and high limits
is insufficient (refer to Table 4.1, page 134).
4.19.2 Engaging Auto Header Height Control – New Holland CR/CX Series
Set these initial configuration options on your New Holland CR or CX Series combine when setting up the auto header
height control (AHHC) system.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for the most up-to-date information.
AUTO HEADER HEIGHT CONTROL
