MacDon FlexDraper FD75 - Adjusting Side Draper Tension

214323 447 Revision B
1005955
A
B
C

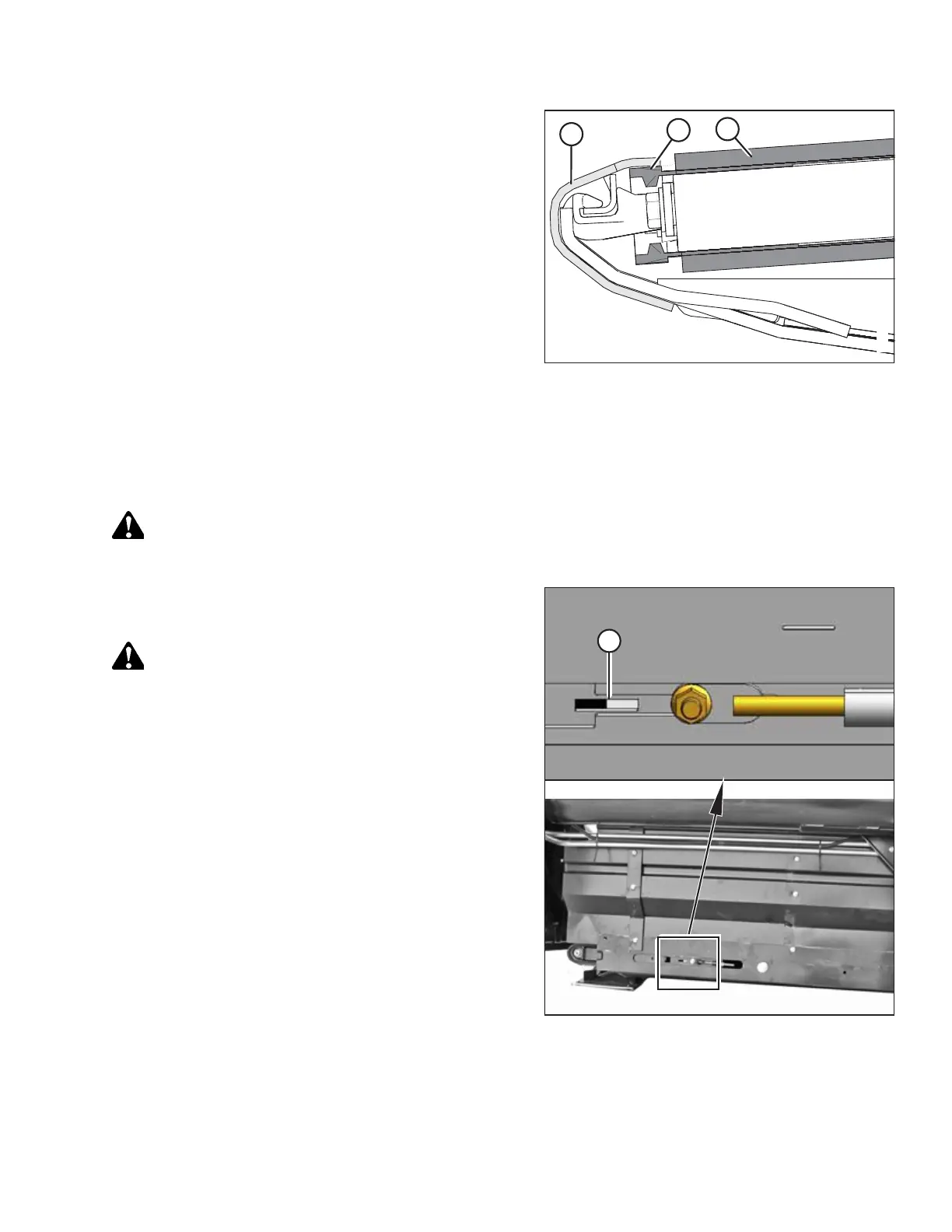

Figure 6.194: Draper Seal
14. Check the draper seal between the drapers and the
cutterbar. Ensure there is a 1–2 mm (0.04–0.08 in.) gap (A)
between cutterbar (C) and draper (B).
15. Refer to 6.12.5 Adjusting Deck Height, page 451 to achieve
the proper gap.
6.12.3 Adjusting Side Draper Tension
The drapers are tensioned at the factory and should NOT require adjustment. If adjustment is required, draper tension
should be just enough to prevent slipping and to keep the draper from sagging below the cutterbar.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the machine for any reason.
1020638
A
Figure 6.195: Left Adjuster Shown – Right Opposite
1. Ensure white indicator bar (A) is at the halfway point in
the window.
DANGER
Check to be sure all bystanders have cleared the area.
2. Start the engine.
3. Raise the header fully.
4. Shut down the engine, and remove the key from
the ignition.
5. Engage the header safety props. Refer to the combine
operator’s manual for instructions.
MAINTENANCE AND SERVICING
