MacDon FlexDraper FD75 - Page 466

214323 448 Revision B
1008417
A

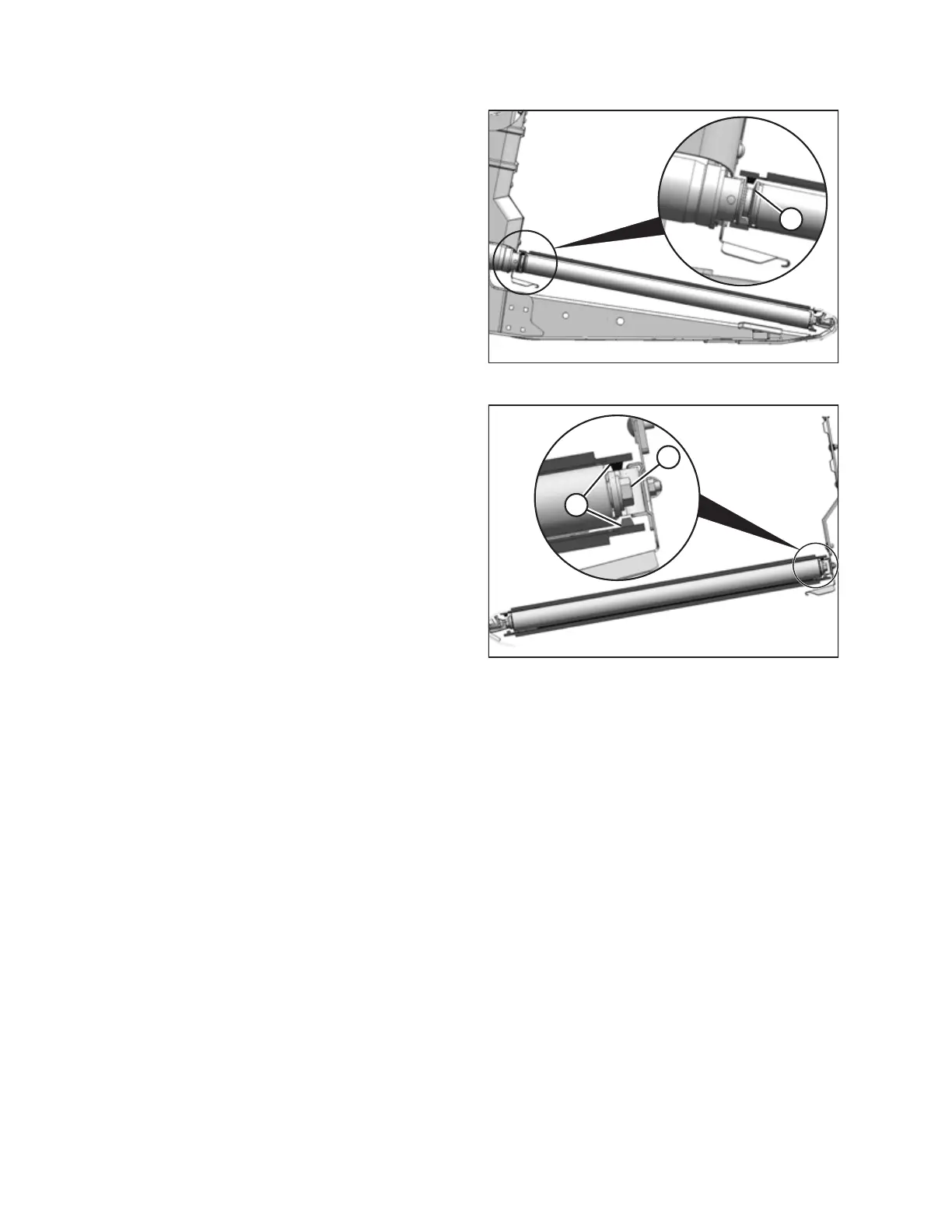

Figure 6.196: Drive Roller
6. Ensure the draper guide (the rubber track on the underside
of the draper) is properly engaged in groove (A) on the
drive roller.
1008418
A
B
Figure 6.197: Idler Roller
7. Ensure idler roller (A) is between draper guides (B).
MAINTENANCE AND SERVICING
