214323 492 Revision B

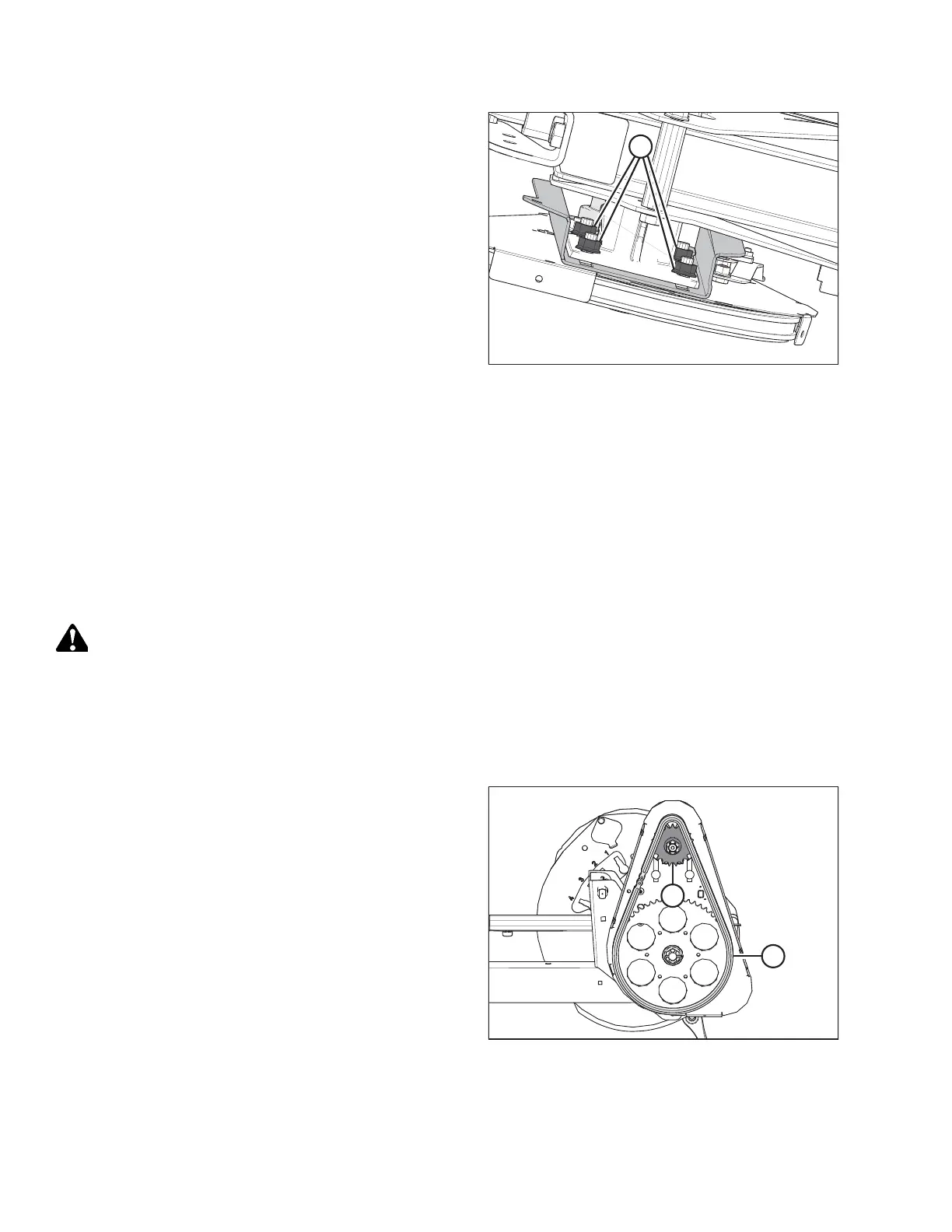

Figure 6.295: Single-Reel Drive – Viewed from
Underside of Reel
6.14.3 Replacing Reel Drive Sprocket
The reel drive sprocket is attached to the reel drive motor.
For Case IH and New Holland combine models, configure the combine according to the reel sprocket size in order to
optimize the auto reel to ground speed control. Refer to the combine service manual for more information.
Removing Reel Drive Sprocket
The reel drive sprocket is attached to the reel drive motor.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key from the ignition before making adjustments to the machine. NEVER climb onto or go underneath an
unsupported header.
1. Shut down the engine, and remove the key from the ignition.
2. Loosen the drive chain. For instructions, refer to Loosening Reel Drive Chain, page 489.
Figure 6.296: Reel Drive
3. Remove drive chain (A) from drive sprocket (B).
MAINTENANCE AND SERVICING
