MacDon FlexDraper FD75 - Lubricating Auger Drive Chain

214323 363 Revision B
1012795
A
B
C

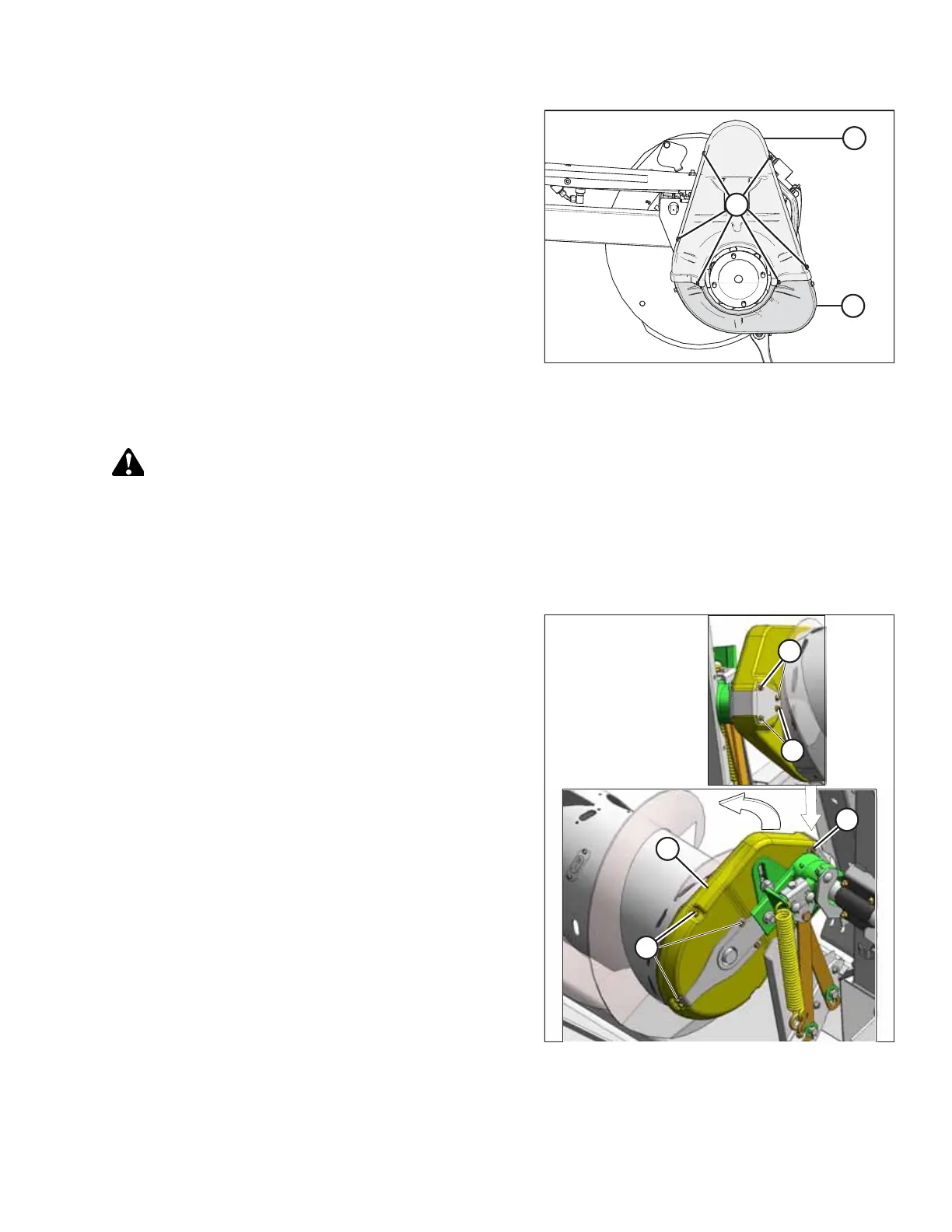

Figure 6.22: Drive Cover – Double Reel
6. Position upper drive cover (B) onto the reel drive and lower
cover (C), and secure with six bolts (A).
Lubricating Auger Drive Chain
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Lubricate the auger drive chain every 100 hours. Lubrication can be done with the adapter attached to the combine, but it
is easier with the adapter detached.
The auger drive cover consists of an upper and a lower half. Only the upper half needs to be removed to grease the chain.
1001338
A
B
C
A
A
Figure 6.23: Auger Drive
1. Remove six bolts (A) securing the upper half of cover (C).
2. Loosen two bolts (B) at the rear of the cover.
3. Rotate the upper half (C) forward to remove.
MAINTENANCE AND SERVICING
