MacDon FlexDraper FD75 - Checking Auger Drive Chain Tension

214323 362 Revision B
1012796
A
B

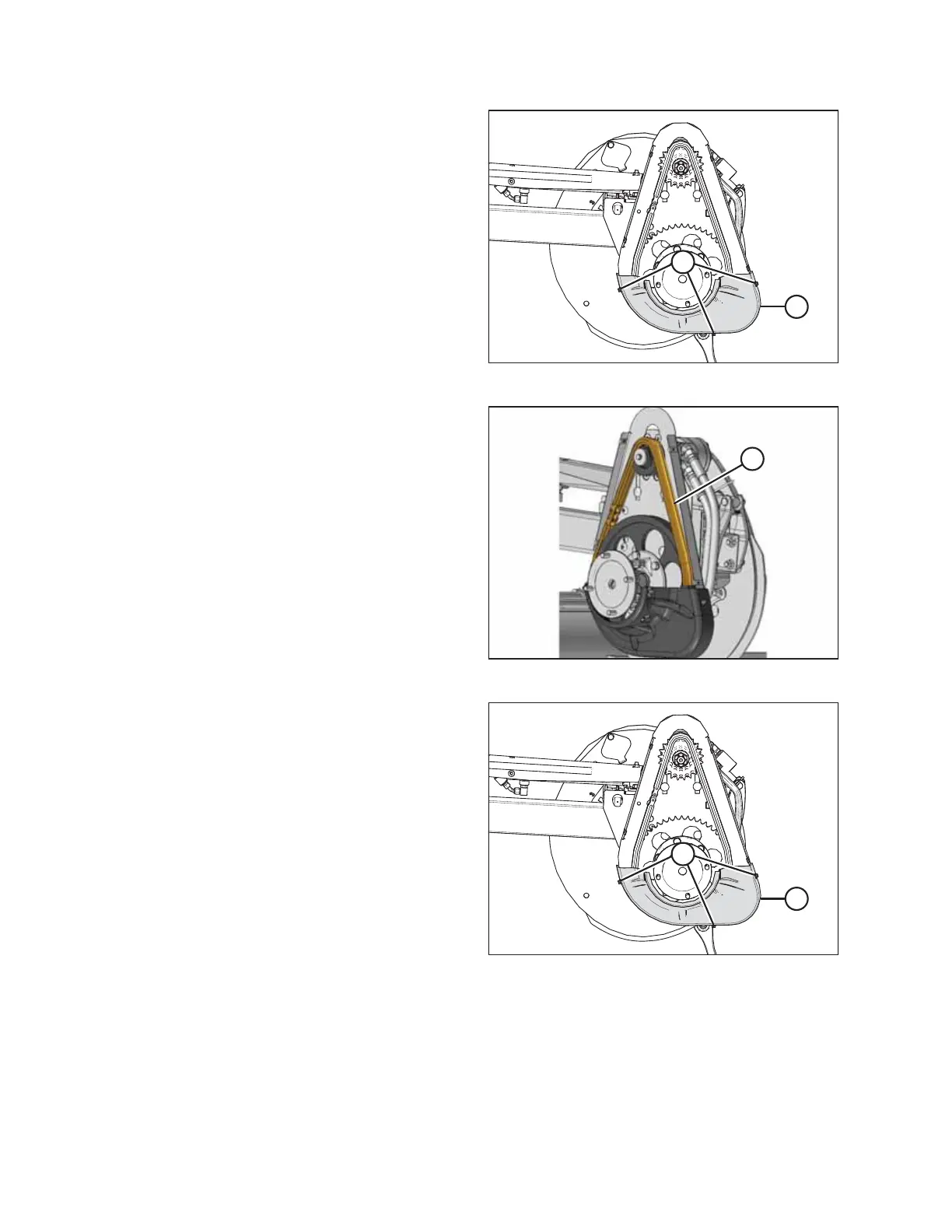

Figure 6.19: Drive Cover – Double Reel
3. If necessary, remove three bolts (A) and remove lower
cover (B).
1004752
A
Figure 6.20: Drive Chain
4. Apply a liberal amount of grease to chain (A).
1012796
A
B
Figure 6.21: Drive Cover – Double Reel
5. Position lower drive cover (B) onto the reel drive (if
previously removed) and secure with three bolts (A).
MAINTENANCE AND SERVICING
