4.9.6 Adjusting Auto Reel Speed – CLAAS 500 Series
The reel speed can be preset relative to ground speed on CLAAS 500 series combines when the auto header height control
(AHHC) system is active.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
1003752

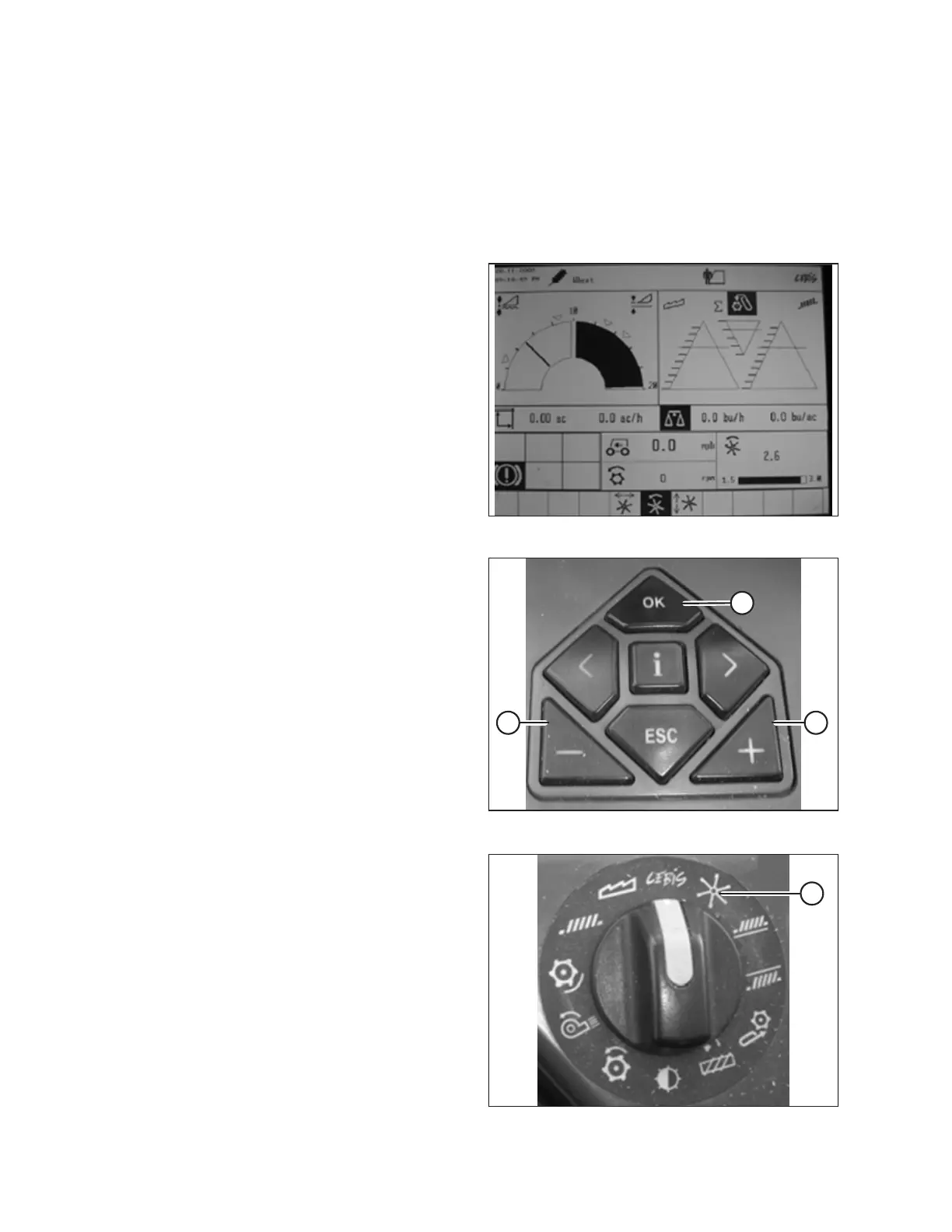

Figure 4.99: Combine Display
1. Use the < or > key to select REEL WINDOW. The E15
window will display the current acceleration or deceleration
value of the reel in relation to the ground speed.
1003749
A
B
C
Figure 4.100: Combine Controls
2. Press OK key (C) to open the REEL SPEED window.
3. Use – key (A) or + key (B) to set the reel speed in relation to
the current ground speed. Window E15 displays the
selected reel speed.
1003753
A
Figure 4.101: Combine Rotary Switch
4. If desired, manually adjust the reel speed by rotating the
rotary switch to reel position (A). Use the – or + key to set
the reel speed. The E15 window displays the selected
reel speed.
