214323 34 Revision B

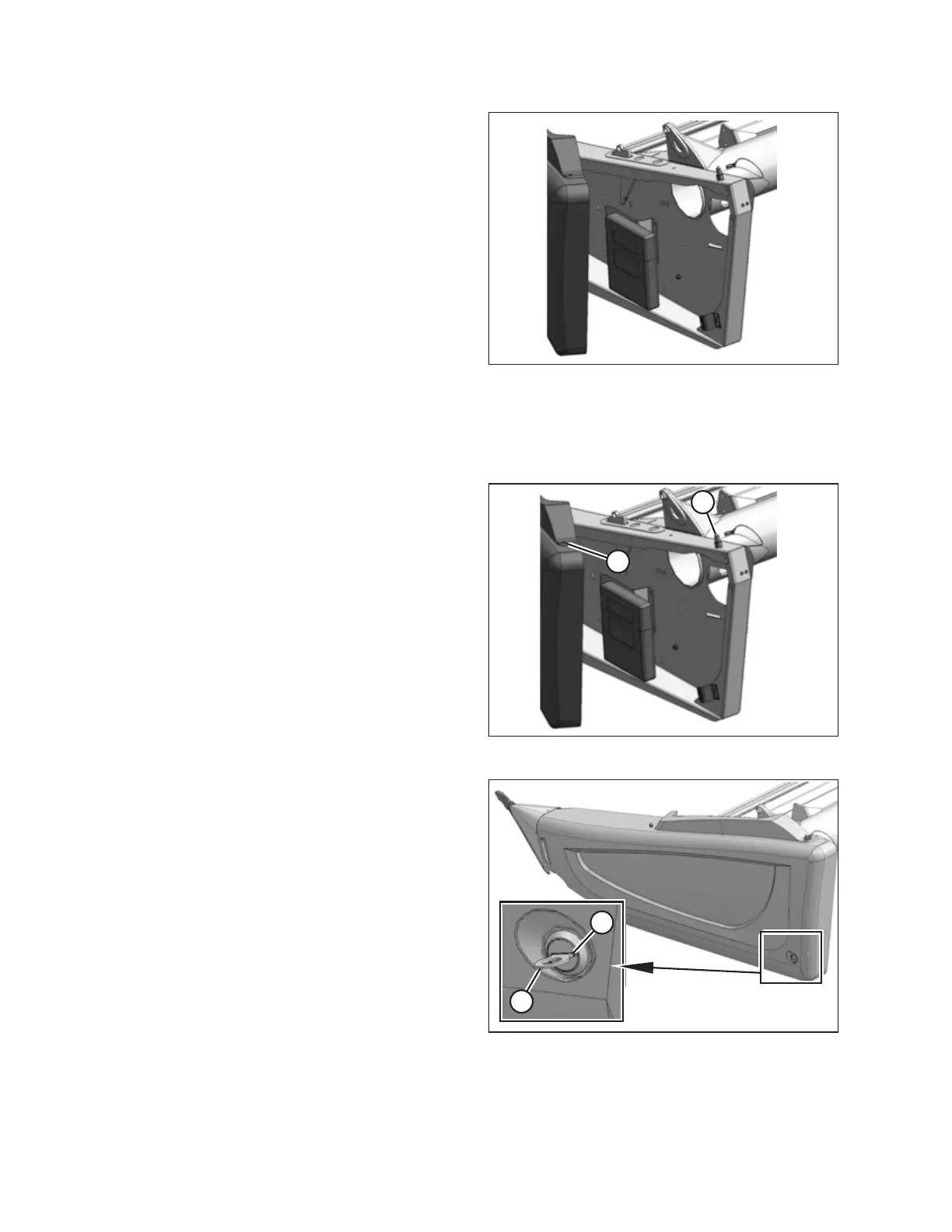

Figure 3.9: Left Endshield Open
IMPORTANT:
Do NOT force the endshield once it has reached its end of travel
or damage to the endshield structure may result. The endshield
is designed to open sufficiently to allow access to the drive
system and manual case.
NOTE:
If complete access to endsheet area is required, remove the
endshield. For instructions, refer to Removing Endshield, page
35.
Closing Endshield
The header endshields protect people from moving parts and protect components from damage and debris.
Figure 3.10: Left Endshield
1. Apply forward pressure and swing the rear of the endshield
towards the header.
2. Lift the endshield and engage pin (A) lon the top of the
endsheet frame with the hole in endshield (B).
Figure 3.11: Left Endshield
3. Push in the endshield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).
OPERATION
