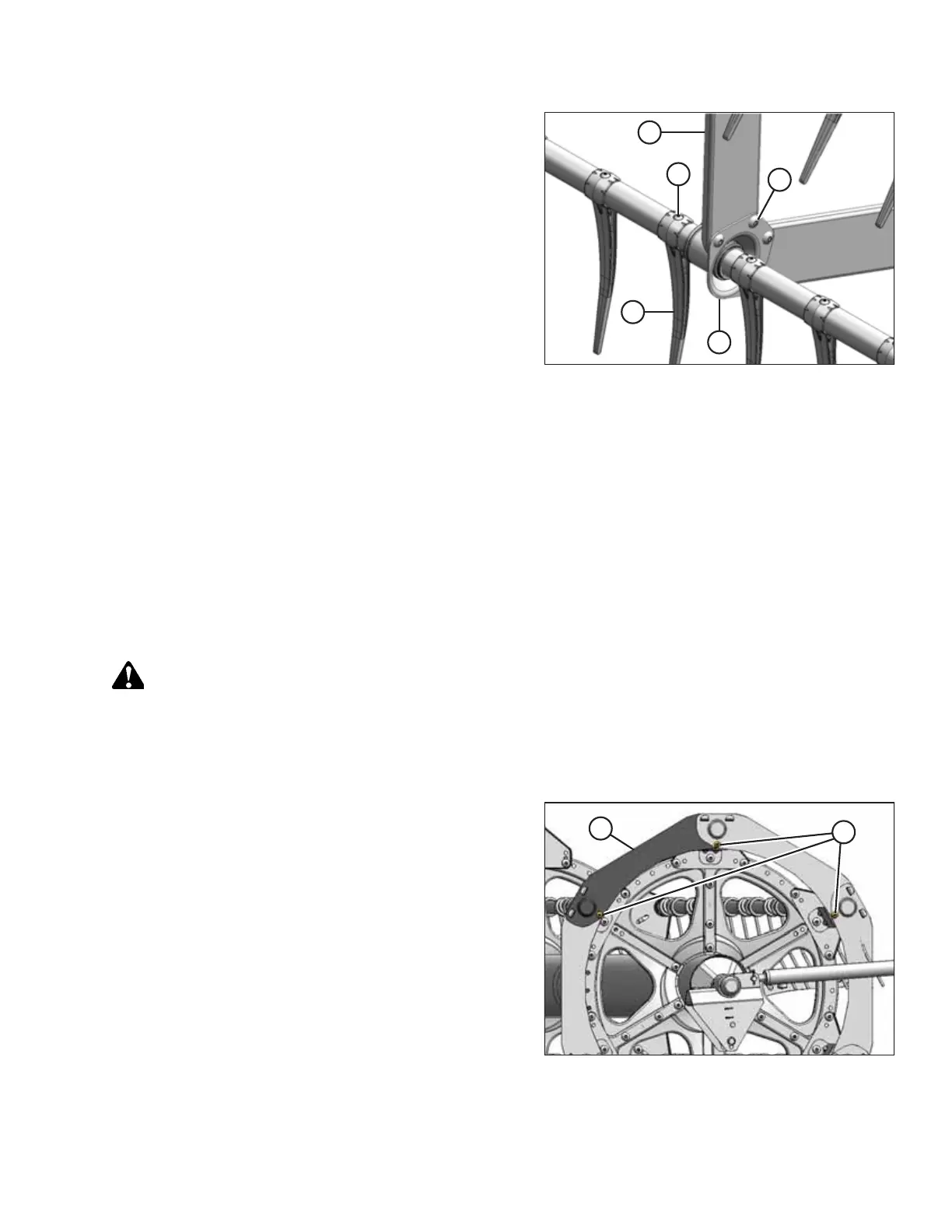

Figure 6.279: Opposite Support
6.13.6 Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for damage and
loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but severely damaged
components must be replaced.
You can attach reel endshields to either end of the reel.
Replacing Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for damage and
loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but it’s necessary to
replace severely damaged components.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Lower the header and reel.
2. Shut down the engine, and remove the key from the ignition.
1005466
A
B
Figure 6.280: Reel Endshields
3. Rotate the reel manually until reel endshield support (A)
requiring replacement is accessible.
4. Remove three bolts (B).
