214323 445 Revision B
1010063
A
B

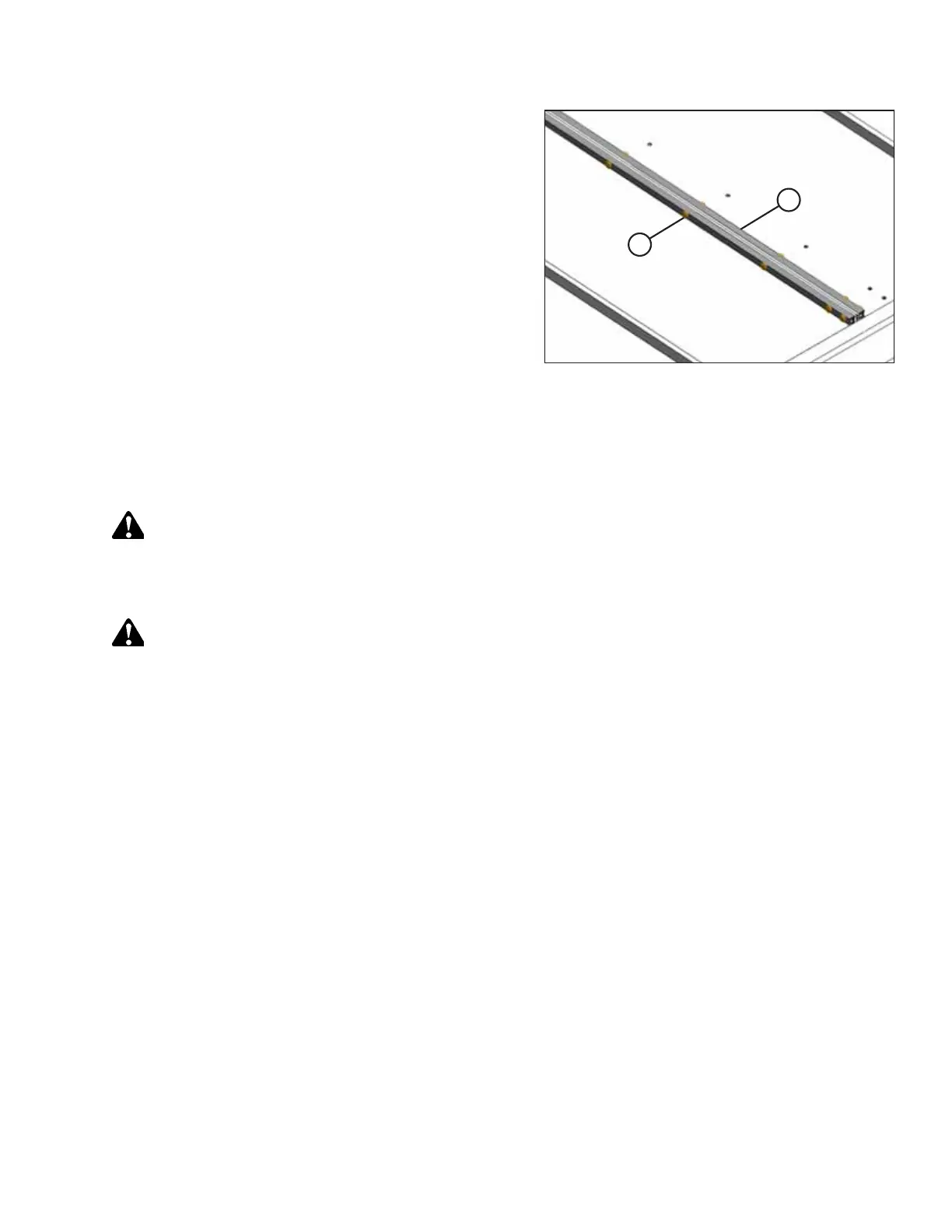

Figure 6.190: Draper Joint
9. Remove screws (A) and tube connectors (B) at the
draper joint.
10. Pull the draper from the deck.
6.12.2 Installing Side Drapers
Side drapers are used to bring cut crop to the center of the header. To ensure they are installed correctly, follow the
recommended installation procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Raise the reel fully.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the header safety props. Refer to the combine operator’s manual for instructions.
5. Engage the reel safety props. For instructions, refer to Engaging Reel Safety Props, page 31.
6. Check the deck height before installing the drapers. For instructions, refer to 6.12.5 Adjusting Deck Height, page 451.
MAINTENANCE AND SERVICING
